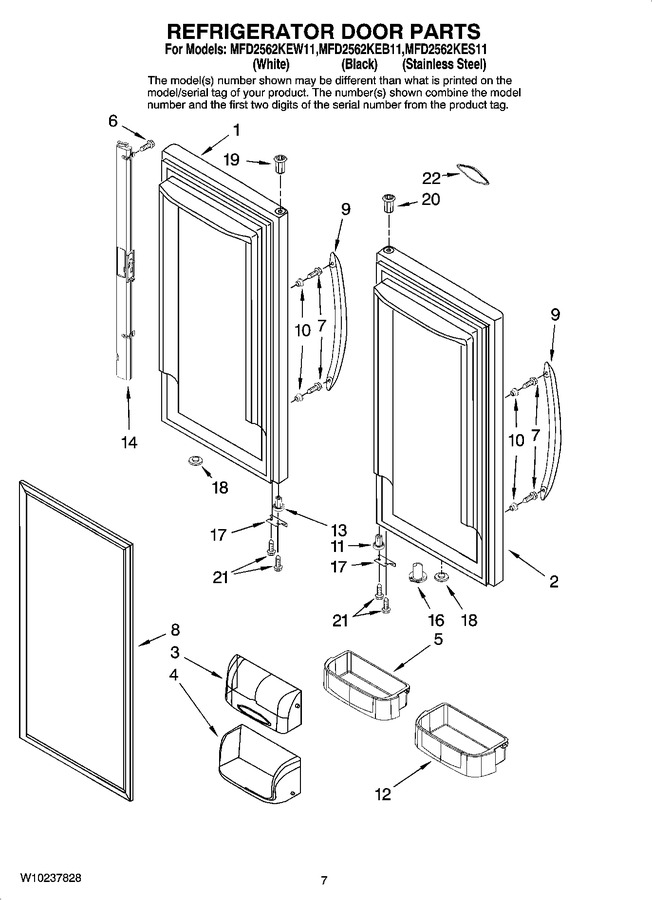

04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024022BQ		Door, Left (black)		Appelez-nous	-
1	13024038SQ		Door, Left (stainless Steel)				$ 421.73
1	13024022WQ		Door, Left (white)		Appelez-nous	-
2	13024037SQ		Door, Right (stainless Steel)		Appelez-nous	-
2	13024021BQ		Door, Right (black)				$ 279.74
2	13024021WQ		Door, Right (white)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 67003637)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	67004040		Bin, Shelf (3) (medium)				$ 95.99
6	W11311945		Screw   (Replaces: 67006786)				$ 14.72
7	67006901		Screw			Immediately	$ 9.49
8	W10830189		Gasket, Door (2) (white)   (Replaces: W10163894)			Immediately	$ 228.91
8	W11368721		Gasket, Door (2) (black)   (Replaces: W10163895)			Immediately	$ 169.21
9	13004701W		Door Handle (white)   (Replaces: 67006114)				$ 193.97
9	W10197298		Door Handle (black)		Appelez-nous	-
9	W11690159		Door Handle (stainless)   (Replaces: W10197295)				$ 173.76
10	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
11	WP67002731		Bushing, Door (bottom-right) (black)   (Replaces: 67002731)			Immediately	$ 8.24
11	12028601W		Bushing, Door (bottom-right) (white)   (Replaces: 67002732)				$ 24.03
12	67004641		Bin, Shelf (2) (gallon)				$ 45.66
13	67002722		Bushing, Door (bottom-left) (white)				$ 22.17
13	WP67002721		Bushing, Door (bottom-left) (black)   (Replaces: 67002721)			Immediately	$ 8.25
14	WP12722803W		Mullion, Door (white)   (Replaces: 67003263)			Immediately	$ 261.21
14	WP12722803B		Mullion, Door (black)   (Replaces: 67003264)			Immediately	$ 206.80
16	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
16	WP67003638		Closure, Door (white)   (Replaces: 67003638)			Immediately	$ 8.15
17	12968202W		Stop, Door (white)				$ 69.29
17	W11708403		Stop, Door (black)   (Replaces: 67007011)			Immediately	$ 14.75
18	10712401		Plug, Button (white)				$ 7.79
18	67004838		Plug, Button (black)				$ 11.21
19	12395501B		Bushing, Door Upper Left (black)		Appelez-nous	-
19	12395501W		Bushing, Door Upper Left (white)		Appelez-nous	-
20	WP67004977		Bushing, Door (upper Right) (white)   (Replaces: 67004977)				$ 8.20
20	67004978		Bushing, Door (upper Right) (black)				$ 22.10
21	WP98165		Screw   (Replaces: 67006287)				$ 8.57
22	WPW10170766		Nameplate   (Replaces: W10170766)			Immediately	$ 70.50
