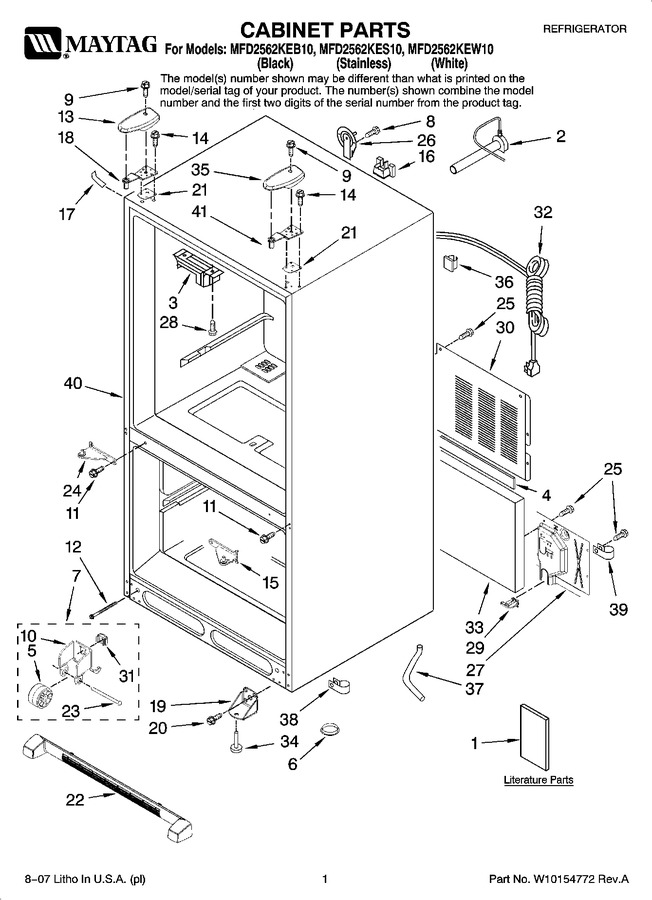

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Freezer Door Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67006616		Tech Sheet		Appelez-nous	-
1	12828147		Owners Manual		Appelez-nous	-
1	W10142269		Tag, Energy		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	WP10450603		Roller   (Replaces: 67005127)				$ 8.27
6	A3076901		Plug-button				$ 5.70
7	67006118		Roller Assy. (2)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12456801V		Bracket, Roller   (Replaces: 12456801)				$ 53.10
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.72
12	392-45		Terminal F		Appelez-nous	-
13	12684201B		Cover, Left Hinge (black)		Appelez-nous	-
13	12684201W		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 8.43
16	67004092		Block, Filter (2)		Appelez-nous	-
17	67003485		Cover, Corner (black)			Immediately	$ 22.14
17	67003484		Cover, Corner (white)				$ 21.42
18	WP12566607ED		Hinge, Top Left   (Replaces: 12566605ED)				$ 91.09
19	WP389387		Shaft, Agitator (complete)   (Replaces: W10116913)				$ 283.19
21	12579702		Shim, Hinge		Appelez-nous	-
22	WPW10534154		Grille, Toe (white)   (Replaces: 67006377)				$ 153.66
22	WPW10534153		Grille, Toe (black)   (Replaces: 67006375)				$ 154.57
24	W10918113		Hinge, Center (lt) (white)   (Replaces: 67006277)				$ 97.92
24	W10918164		Hinge, Center (lt) (black)   (Replaces: 67006275)				$ 91.53
25	67006425		Screw (10)			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
27	67004098		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 13.03
30	67006101		Cover, Unit				$ 76.68
31	M0286708		Nut, Speed				$ 47.85
32	WP67006506		Cord, Power   (Replaces: 67006506)				$ 27.74
33	67003796		Insulation, Sound				$ 19.27
34	W11177593		Foot Brake   (Replaces: 67003868)				$ 12.18
35	12684202W		Cover, Right Hinge (white)		Appelez-nous	-
35	12684202B		Cover, Right Hinge (black)		Appelez-nous	-
36	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 8.17
37	67001066		Tube, Drain				$ 55.82
38	67001067		Clip, Drain Tube				$ 9.66
39	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
41	WP12566606ED		Hinge, Top Right   (Replaces: 12566604ED)			Immediately	$ 47.13
