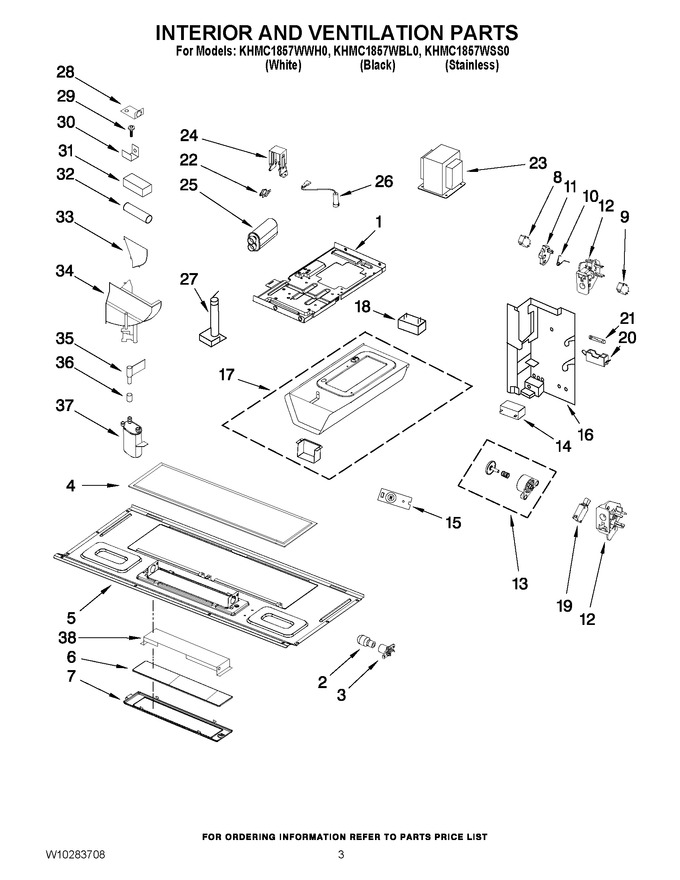

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10248270 | Chassis |
|
- | |||||
| 2 | W10709921 | Lamp (Replaces: W10208564) |
|
Immediately | $ 21.22 | ||||
| 3 | W10250585 | Holder, Lamp |
|
$ 5.97 | |||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 32.59 | ||||
| 5 | W10250588 | Plate, Bottom |
|
$ 233.50 | |||||
| 6 | WPW10210875 | Glass, Lamp (Replaces: W10210875) |
|
$ 334.23 | |||||
| 7 | W10210873 | Holder, Glass |
|
$ 5.75 | |||||
| 8 | W10211972 | Switch, Micro V15t16-cz200 |
|
Immediately | $ 52.40 | ||||
| 9 | W10269458 | Switch, Micro V15t16-cc200 (Replaces: W10211973) |
|
Immediately | $ 40.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 12.14 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 17.83 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 22.37 | ||||
| 12 | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 8.07 | ||||
| 13 | W10197758 | Piston Assembly |
|
Immediately | $ 88.91 | ||||
| 14 | W11405831 | Capacitor, 125 V (Replaces: W10245191) |
|
$ 42.25 | |||||
| 15 | W10163422 | Thermistor (pcba) |
|
$ 171.14 | |||||
| 16 | W10245193 | Plate, Side |
|
$ 25.63 | |||||
| 17 | W10245189 | Chassis Assembly |
|
- | |||||
| 18 | W10245190 | Resistor, Cement |
|
- | |||||
| 19 | W10211974 | Switch, Micro V15t16-cp200 |
|
Immediately | $ 60.44 | ||||
| 20 | W10245194 | Holder, Fuse |
|
$ 83.15 | |||||
| 21 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 22 | W10248275 | Thermostat |
|
- | |||||
| 23 | W10248271 | Transformer, H.v. |
|
- | |||||
| 24 | W10532063 | Bracket, Capacitor (Replaces: W10156817) |
|
$ 28.28 | |||||
| 25 | W10850446 | Capacitor, H.v. (Replaces: W10138798) |
|
$ 186.54 | |||||
| 26 | W11256462 | Diode, H.v. (Replaces: W10245187) |
|
Immediately | $ 33.20 | ||||
| 27 | W10245188 | Hv Diode Support |
|
$ 25.80 | |||||
| 28 | W10259248 | Cover, Thermostat |
|
- | |||||
| 29 | W10599629 | Thermostat (Replaces: 8206068) |
|
$ 34.13 | |||||
| 30 | 8206223 | Clip, Thermostat |
|
$ 51.91 | |||||
| 31 | W10245194 | Holder, Fuse |
|
$ 83.15 | |||||
| 32 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 45.85 | ||||
| 33 | W10248274 | Plate, Housing |
|
- | |||||
| 34 | W10248276 | Housing, Valve |
|
- | |||||
| 35 | W10248277 | Valve |
|
- | |||||
| 36 | W10248278 | Screw |
|
- | |||||
| 37 | 8206082 | Thermocutout |
|
- | |||||
| 38 | W10250586 | Reflector |
|
$ 130.39 |
