SELECT A DIAGRAM

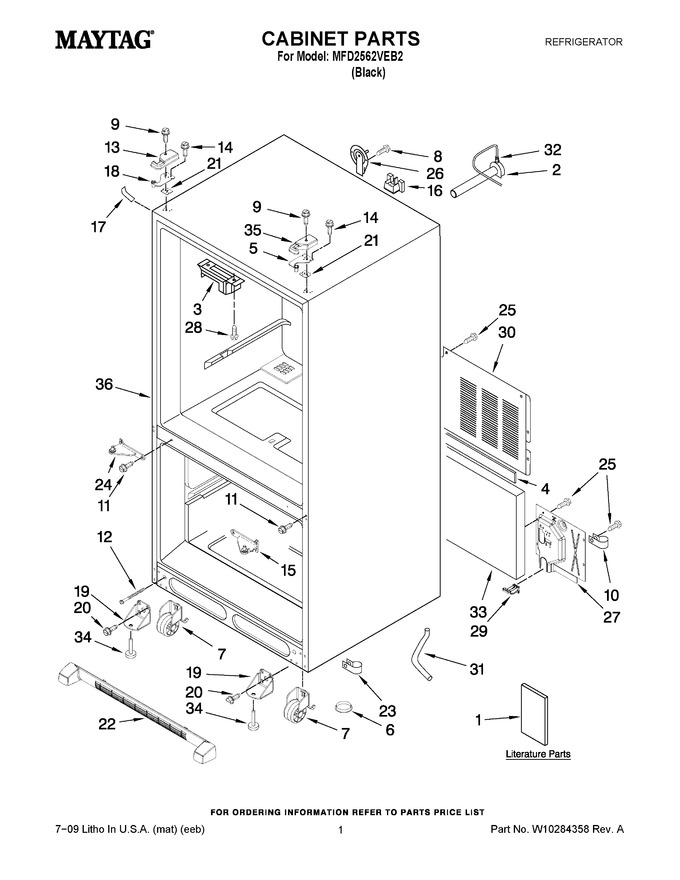

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Refrigerator Liner Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Shelf Parts


07 - Icemaker Parts


08 - Freezer Door Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827968		Tech Sheet		Appelez-nous	-
1	W10187813		Tag, Energy		Appelez-nous	-
1	W10175446		Owners Manual		Appelez-nous	-
2	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	W11592374		Hinge, Top Right   (Replaces: 12963205ED)			Immediately	$ 31.90
6	A3076901		Plug-button				$ 5.70
7	12580304		Roller Assy. (2)				$ 5.84
8	WP98165		Screw   (Replaces: 12990504)				$ 8.57
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.55
10	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
11	W11573362		Screw (6)   (Replaces: 12992201)				$ 14.72
12	71003131		Bolt, Adjusting (front)   (Replaces: 12606103)			Immediately	$ 7.08
13	W10337647		Cover, Left Hinge (black)   (Replaces: 12962301B)			Immediately	$ 23.33
14	WP489349		Screw (6)   (Replaces: 12992403)			Immediately	$ 8.43
15	W10918164		Hinge, Center (rt) Black   (Replaces: 13000008ED)				$ 91.53
16	12777701		Block, Filter (2)				$ 7.17
17	67003485		Cover, Corner (black )   (Replaces: 12587703B)			Immediately	$ 22.14
18	W11592375		Hinge, Top Left   (Replaces: 12963204ED)				$ 31.92
19	12906303WD		Bracket, Foot (2)				$ 88.58
20	67006564		Screw   (Replaces: 12991302)			Immediately	$ 8.15
21	12999501		Shim, Hinge (left)				$ 99.53
21	12999502		Shim, Hinge (right)				$ 100.60
22	WPW10534153		Grille, Toe (black)   (Replaces: 12880103B)				$ 154.57
23	W10157973		Clip, Drain Tube				$ 7.80
24	W10918164		Hinge, Center (lt) Black)   (Replaces: 13000007ED)				$ 91.53
25	67006425		Screw (10)   (Replaces: 12990511)			Immediately	$ 7.30
26	12726003		Cover, Water Line				$ 19.19
27	12751509		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 12990303)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube				$ 13.03
30	12575101		Cover, Unit		Appelez-nous	-
31	W10164397		Tube, Drain				$ 15.53
32	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.60
33	12820503		Insulation, Sound		Appelez-nous	-
34	10354002		Foot, Brake			Immediately	$ 7.38
35	WP67005956		Cover, Right Hinge (black)   (Replaces: 12962302B)				$ 22.54
36	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
