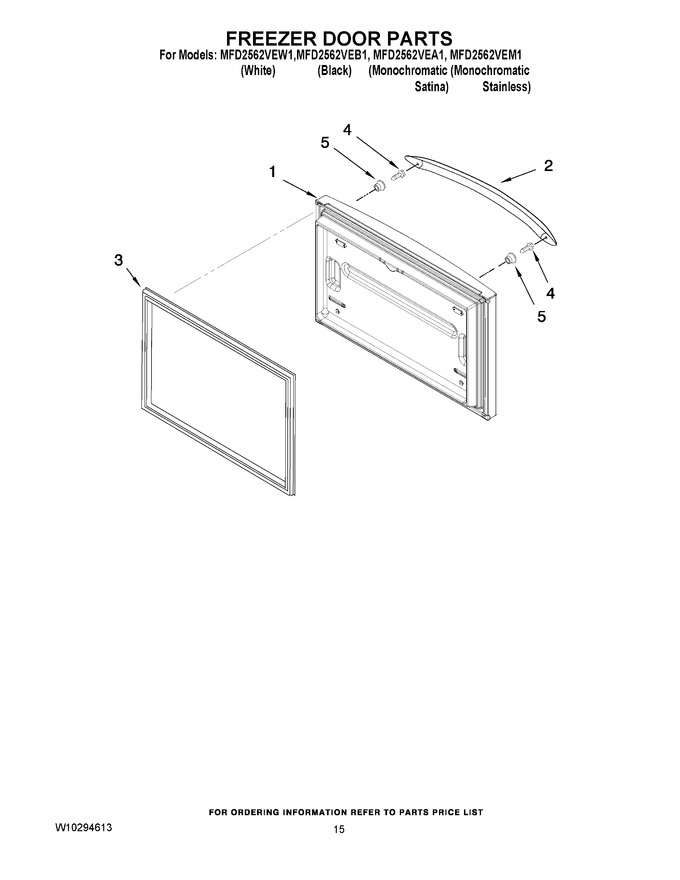

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12977864WQ | Freezer Door (white) (Replaces: W10199889) |
|
$ 1,080.85 | |||||
| 1 | 12977865BQ | Freezer Door (black) (Replaces: 12977838BQ) |
|
$ 1,010.48 | |||||
| 1 | 12977818SQ | Freezer Door (stainless) |
|
- | |||||
| 1 | 12977818LQ | Freezer Door (satina) |
|
- | |||||
| 2 | W10197301 | Handle (white) |
|
- | |||||
| 2 | W10197303 | Handle (black) |
|
- | |||||
| 2 | WPW10138763 | Handle (stainless) (Replaces: W10197300) |
|
$ 279.87 | |||||
| 2 | W10197304 | Handle (antique Pewter) |
|
- | |||||
| 3 | W10443319 | Gasket, Door (white) (Replaces: W10164040) |
|
$ 281.76 | |||||
| 3 | W10443320 | Gasket, Door (apollo Grey) (Replaces: W10164042) |
|
Immediately | $ 125.25 | ||||
| 3 | W10436252 | Gasket, Door (black) (Replaces: W10164041) |
|
Immediately | $ 362.28 | ||||
| 4 | 67006901 | Screw (Replaces: 12991703) |
|
Immediately | $ 9.49 | ||||
| 5 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 |
