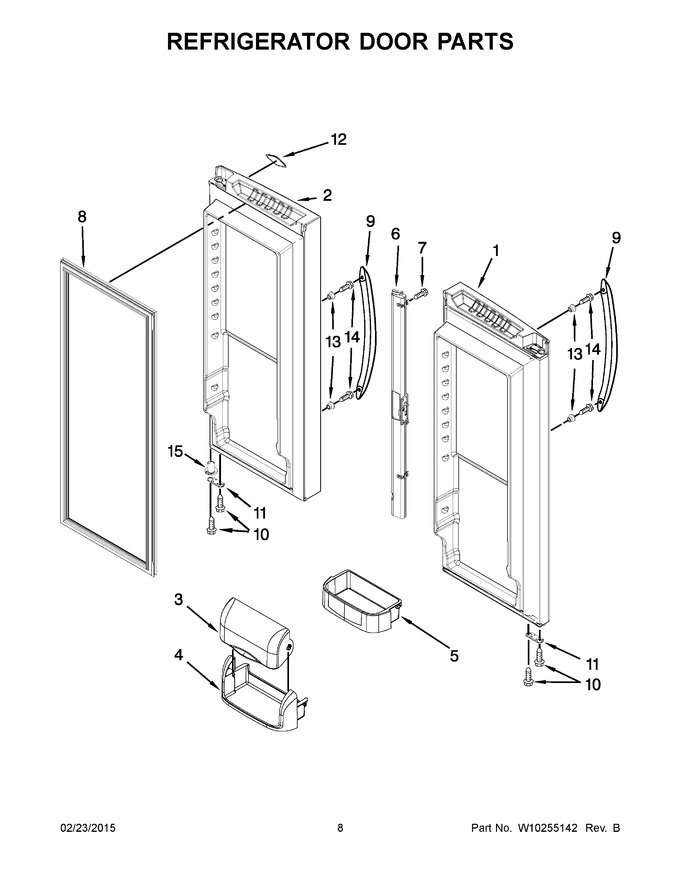

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10258326 | Door, Left (white) |
|
- | |||||
| 2 | W10258328 | Door, Right (white) |
|
- | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 88.01 | ||||
| 5 | WP67004041 | Bucket, Small (Replaces: 12801901) |
|
$ 89.01 | |||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830287 | Gasket, Door Left Hand (white) (Replaces: W10218678) |
|
Immediately | $ 173.36 | ||||
| 9 | 13004701W | Handle, Door (white) (Replaces: W10197296) |
|
$ 193.97 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 12 | WPW10170766 | Badge (Replaces: W10170766) |
|
Immediately | $ 70.50 | ||||
| 13 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 12.56 | ||||
| 14 | 67006901 | Screw (Replaces: 12991703) |
|
Immediately | $ 9.49 | ||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 11A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 11B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 15A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 15B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 1A | W10258327 | Door, Left (black) |
|
- | |||||
| 1B | 12978046SQ | Door, Left (stainless) |
|
$ 467.50 | |||||
| 1C | 12978046LQ | Door, Left (satina) |
|
- | |||||
| 2A | W10258329 | Door, Right (black) |
|
- | |||||
| 2B | 12978045SQ | Door, Right (stainless) |
|
$ 947.17 | |||||
| 2C | 12978045LQ | Door, Right (satina) |
|
- | |||||
| 5A | 67004040 | Bucket, Medium (Replaces: 12801902) |
|
$ 95.99 | |||||
| 5B | 12840003 | Bucket, Gallon |
|
- | |||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803B) |
|
$ 206.80 | |||||
| 6B | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803AP) |
|
Immediately | $ 177.93 | ||||
| 8A | W10830289 | Gasket, Door Left Hand (black) (Replaces: W10218679) |
|
Immediately | $ 204.87 | ||||
| 8B | W10830283 | Gasket, Door Left Hand (grey) (Replaces: W10218680) |
|
$ 205.44 | |||||
| 8C | W10830189 | Gasket, Door Right Hand (white) (Replaces: W10163894) |
|
$ 228.91 | |||||
| 8D | W11368721 | Gasket, Door Right Hand (black) (Replaces: W10163895) |
|
Immediately | $ 169.21 | ||||
| 8E | W10830162 | Gasket, Door Right Hand (grey) (Replaces: W10179332) |
|
Immediately | $ 212.57 | ||||
| 9A | W10197298 | Handle, Door (black) |
|
- | |||||
| 9B | W11690159 | Handle, Door (stainless) (Replaces: W10197295) |
|
$ 173.76 |
