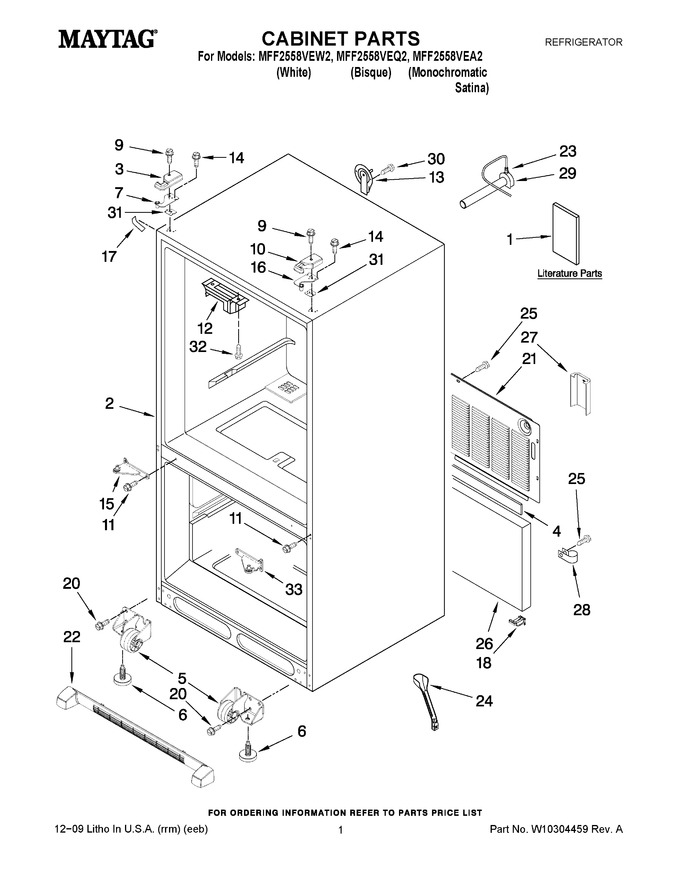

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10175446		Use & Care Guide		Appelez-nous	-
1	W10279332		Tech Sheet		Appelez-nous	-
1	W10187813		Energy Guide		Appelez-nous	-
2	N/P		Cabinet (not A Servicable Part)		Appelez-nous	-
3	WPW10337648		Cover, Left Hinge (apollo Grey)   (Replaces: 12962301AP)				$ 22.02
3	12962301Q		Cover, Left Hinge (bisque)		Appelez-nous	-
3	WPW10337634		Cover, Left Hinge (white)   (Replaces: 12962301W)			Immediately	$ 22.42
4	B5759649		Gasket		Appelez-nous	-
5	W11820445		Roller Assy. (2) (right)   (Replaces: W10275849)			Immediately	$ 35.57
5	W11820444		Roller Assy. (2) (left)   (Replaces: W10275850)			Immediately	$ 35.57
6	10354002		Foot, Brake			Immediately	$ 7.38
7	W11592375		Hinge, Left Top   (Replaces: 12963204ED)				$ 29.09
9	WP8281196		Screw   (Replaces: 12992602)			Immediately	$ 7.19
10	12962302Q		Cover, Right Hinge (bisque)		Appelez-nous	-
10	WPW10191117		Cover, Right Hinge (apollo Grey)   (Replaces: 12962302AP)				$ 21.95
10	67005958		Cover, Right Hinge (white)   (Replaces: 12962302W)				$ 20.54
11	WP489349		Screw   (Replaces: 12990101)			Immediately	$ 7.88
12	WP67003405		Block, Pivot   (Replaces: 12698403)			Immediately	$ 7.82
13	12726003		Cover, Water Line				$ 18.28
14	WP489349		Screw (3)   (Replaces: 12992403)			Immediately	$ 7.88
15	W10918113		Hinge, Center (lt) (white)   (Replaces: 13000001WD)				$ 93.26
15	W10917988		Hinge, Center (lt) (apollo Grey)   (Replaces: 13000001AP)			Immediately	$ 91.08
16	12962305ED		Hinge, Right Top		Appelez-nous	-
17	WP12587703AP		Cover, Corner (apollo Grey)   (Replaces: 12587703AP)				$ 7.69
17	12587703C		Cover, Corner (bisque)		Appelez-nous	-
17	12587703W		Cover, Corner White				$ 21.81
18	W10216614		Sweep, Water Valve				$ 18.51
20	67006564		Screw (4)   (Replaces: 12991302)			Immediately	$ 7.69
21	W10211854		Cover, Unit				$ 169.88
22	W10244562		Grille, Toe (bisque)		Appelez-nous	-
22	WPW10534155		Grille, Toe (apollo Grey)   (Replaces: W10244558)			Immediately	$ 119.56
22	WPW10534154		Grille, Toe (white)   (Replaces: W10244559)				$ 146.34
23	WPM0114003		Clip, Speed   (Replaces: M0114003SP)				$ 11.05
24	W10619951		Tube, Drain   (Replaces: W10210988)			Immediately	$ 42.39
25	67006425		Screw   (Replaces: 12990511)			Immediately	$ 6.95
26	12820505		Fiber, Acoustic				$ 71.70
27	W10208592		Guard, Water Valve		Appelez-nous	-
28	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 10.99
29	W11176463		Elbow, Fill Tube   (Replaces: 10463203SP)			Immediately	$ 114.15
30	WP98165		Screw   (Replaces: 12990504)				$ 8.00
31	12999501		Shim, Top Hinge (left)				$ 94.79
31	12999502		Shim, Top Hinge (right)				$ 95.81
32	WP7101P126-60		Screw, Block   (Replaces: 12990303)			Immediately	$ 7.61
33	W10917988		Hinge, Center (rt) (apollo Grey)   (Replaces: 13000002AP)			Immediately	$ 91.08
33	13000002WD		Hinge, Center (rt) (white)				$ 153.32
