SELECT A DIAGRAM

Diagram for 01 - Control Panel Parts
01 - Control Panel Parts

Diagram for 02 - Door Parts
02 - Door Parts

Diagram for 03 - Interior And Ventilation Parts
03 - Interior And Ventilation Parts

Diagram for 04 - Air Flow Parts
04 - Air Flow Parts

Diagram for 05 - Turntable Parts
05 - Turntable Parts

Diagram for 06 - Cabinet And Installation Parts
06 - Cabinet And Installation Parts


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11025649 Plate, Mounting   (Replaces: W10245177) In-Stock Immediately $ 23.51

2 W10843943 Damper Assembly   (Replaces: 8206442) In-Stock Immediately $ 73.04

3 8206388 Cord, Power Special Order $ 86.76

4 W10250583 Case, Outer (white) Appelez-nous -
4 WPW10245176 Case, Outer (black)   (Replaces: W10250584) Special Order $ 220.25

5 W10245216 Grille, Vent (stainless) Special Order $ 137.78

5 W10245217 Grille, Vent (white) Special Order $ 100.93

5 W10245218 Grille, Vent (black) Special Order $ 99.95

6 W10210832 Plate, Damper Special Order $ 6.68

7 W10248268 Assy, Top Plate Appelez-nous -
8 W10248267 Assy, Back Plate Appelez-nous -
9 W10249318 Assy, Bottom Plate Appelez-nous -
10 W10248279 Assy, Right Plate Appelez-nous -
W10190018 Template, Upper In-Stock Immediately $ 7.19

8205948 Installation, Hardware Special Order $ 25.62

W10250605 Hdlmp/tt Wire Assy Appelez-nous -
W10107760 Grnd Wire, Filter Appelez-nous -
W10539840 Ground Wire Assy   (Replaces: 8205696) Special Order $ 23.89

W10249635 Main Harness Appelez-nous -
WP8169704 Screw, Top Mountng   (Replaces: 8169704) In-Stock Immediately $ 11.19


    View Diagram in Separate Window     Print Icon   Print Part List

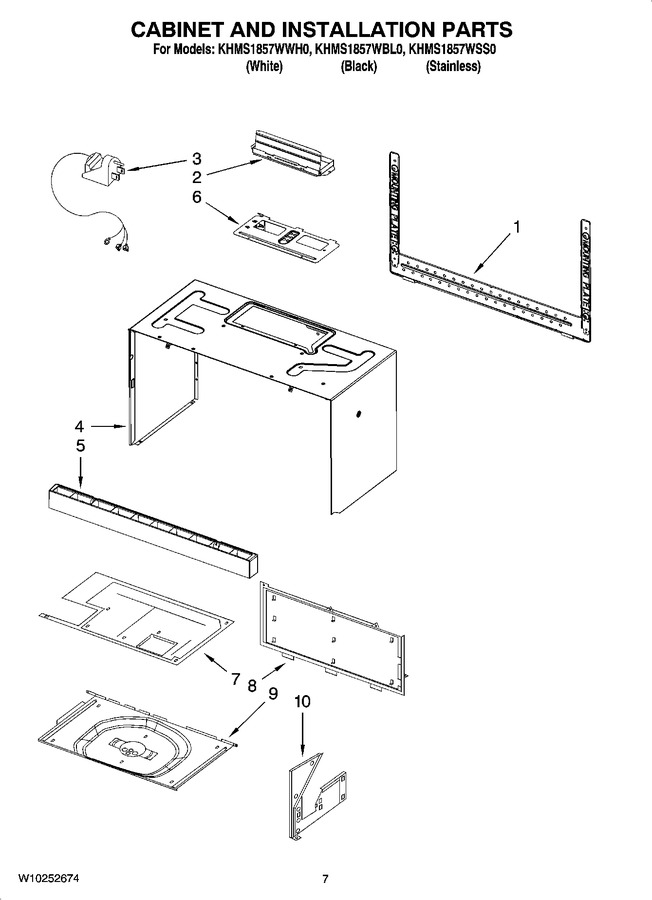

Diagram for KHMS1857WSS0
