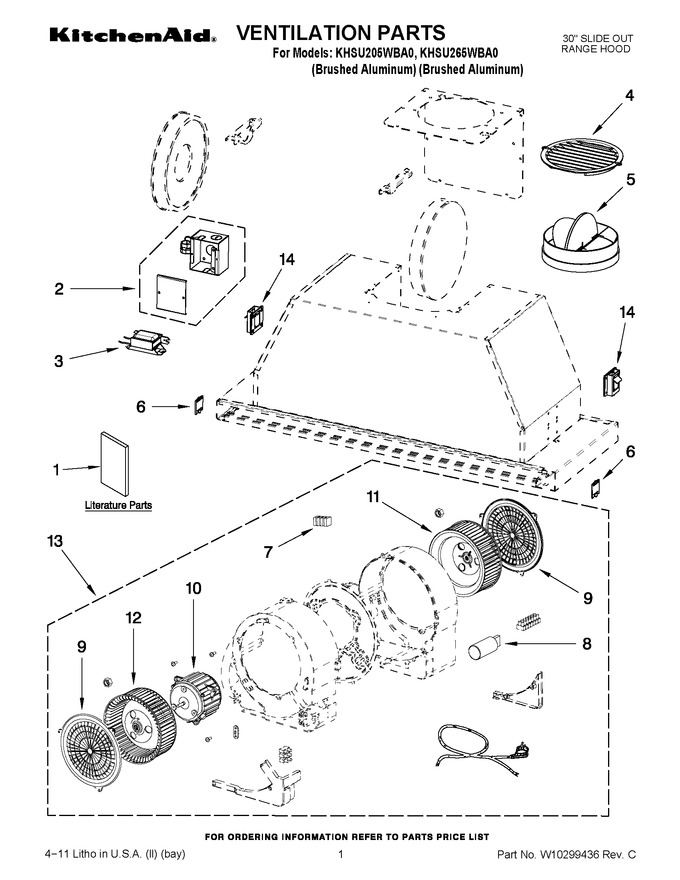

01 - Ventilation Parts
02 - Door And Control Parts
03 - Control Panel Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10267109 | Instructions, Installation |
|
- | |||||
| 2 | W10252785 | Box, Junction |
|
- | |||||
| 3 | W10282168 | Block, Terminal |
|
$ 142.08 | |||||
| 4 | W10281736 | Cover, Damper |
|
$ 24.26 | |||||
| 5 | W10252123 | Assembly, Damper |
|
$ 136.81 | |||||
| 6 | W10281737 | Trim, End Cap |
|
- | |||||
| 7 | W10282174 | Dampener, Motor |
|
- | |||||
| 8 | W10282177 | Capacitor |
|
$ 60.72 | |||||
| 9 | W10282170 | Grille, Blower |
|
- | |||||
| 10 | W10282176 | Motor |
|
$ 334.75 | |||||
| 11 | W10282171 | Impeller, Inner |
|
- | |||||
| 12 | W10282173 | Impeller, Outer |
|
- | |||||
| 13 | W10282178 | Assembly, Blower |
|
$ 1,377.51 | |||||
| 14 | W10333267 | Bracket, Mount |
|
- |
