SELECT A DIAGRAM

01 - Ventilation Parts

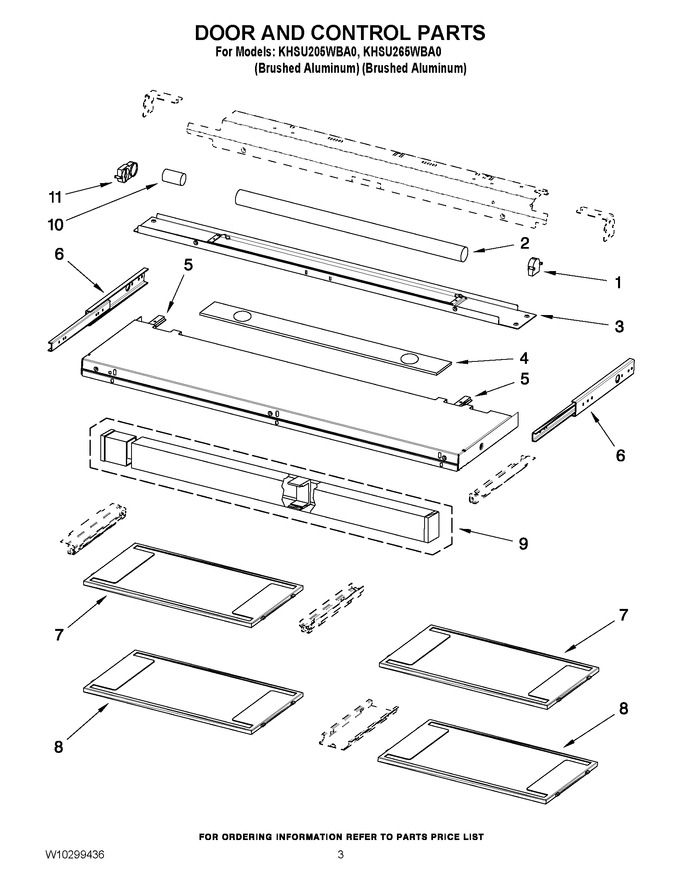

02 - Door And Control Parts


03 - Control Panel Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10281740		Holder, Lamp		Appelez-nous	-
2	W10281741		Lamp		Appelez-nous	-
3	W10281742		Lens, Light (36 Inch Model)		Appelez-nous	-
3	W10281743		Lens, Light (30 Inch Model)		Appelez-nous	-
4	W10282017		Glass		Appelez-nous	-
5	W10281696		Bracket, Light Support				$ 53.49
6	W10282019		Guide, Door		Appelez-nous	-
7	W10282035		Filter, Moving (30 Inch Model)				$ 275.07
7	W10282048		Filter, Moving (36 Inch Model)		Appelez-nous	-
8	W10282036		Filter, Fixed (30 Inch Model)				$ 316.67
8	W10282050		Filter, Fixed (36 Inch Model)		Appelez-nous	-
9	W10282056		Trim, Front (bl (30 Inch Model))		Appelez-nous	-
9	W10282160		Trim, Front (bl (36 Inch Model))		Appelez-nous	-
10	W10282162		Wh (36 Inch Model)		Appelez-nous	-
10	W10282163		Starter, Lamp		Appelez-nous	-
10	W10282058		Al (30 Inch Model)		Appelez-nous	-
10	W10282161		Al (36 Inch Model)		Appelez-nous	-
10	W10282159		Wh (30 Inch Model)		Appelez-nous	-
11	W10282169		Holder, Lamp & Starter				$ 100.22

    View Diagram in Separate Window       Print Part List
