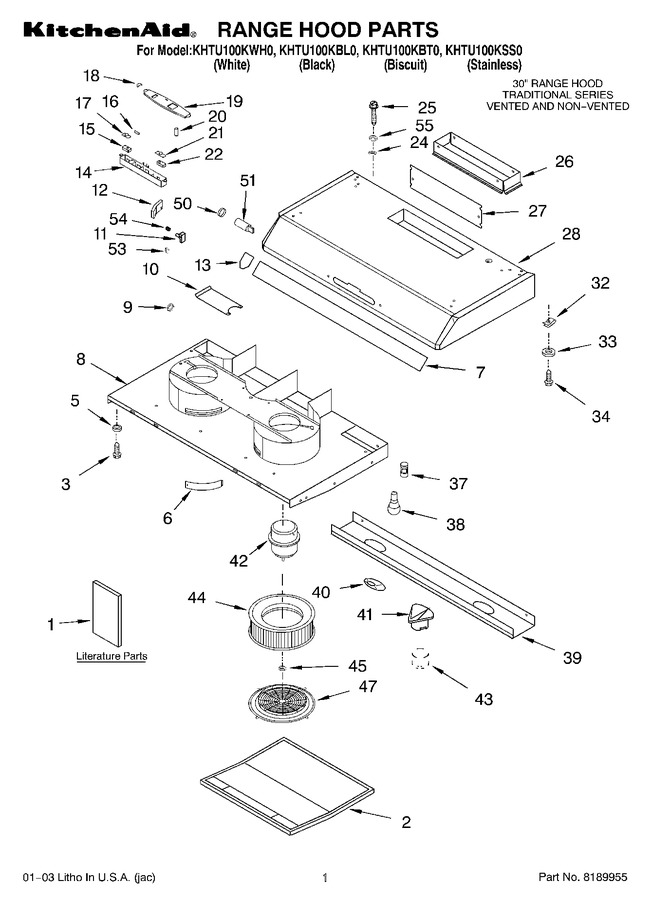

01 - Range Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8190057 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8190058 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 8189911 | Filter, Metal |
|
- | |||||
| 3 | 8189914 | Screw |
|
- | |||||
| 5 | 8189916 | Grommet |
|
- | |||||
| 6 | 8189917 | Cover / Bracket |
|
- | |||||
| 7 | 8189918 | Glass, Visor |
|
- | |||||
| 8 | 8189921 | Housing, Fan Motor (stainless) |
|
- | |||||
| 8 | 8189920 | Housing, Fan Motor (biscuit) |
|
- | |||||
| 8 | 8189922 | Housing, Fan Motor (white) |
|
- | |||||
| 8 | 8189919 | Housing, Fan Motor (black) |
|
- | |||||
| 9 | 4360094 | Grommet |
|
- | |||||
| 10 | 8189968 | Cover, Wire Right (white) |
|
- | |||||
| 10 | 8189967 | Cover, Wire Right (stainless) |
|
- | |||||
| 10 | 8189966 | Cover, Wire Right (biscuit) |
|
- | |||||
| 10 | 8189965 | Cover, Wire Right (black) |
|
- | |||||
| 10 | 8189926 | Cover, Wire Left (white) |
|
- | |||||
| 10 | 8189923 | Cover, Wire Left (black) |
|
- | |||||
| 10 | 8189924 | Cover, Wire Left (biscuit) |
|
- | |||||
| 10 | 8189925 | Cover, Wire Left (stainless) |
|
- | |||||
| 11 | 8189983 | Pin, Pivot Right (biscuit) |
|
- | |||||
| 11 | 8189982 | Pin, Pivot Right (black) |
|
- | |||||
| 11 | 8189984 | Pin, Pivot Right (white) |
|
- | |||||
| 11 | 8189928 | Pin, Pivot Left (biscuit) |
|
- | |||||
| 11 | 8189927 | Pin, Pivot Left (black) |
|
- | |||||
| 11 | 8189929 | Pin, Pivot Left (white) |
|
- | |||||
| 12 | 8189962 | Support, Visor Right (black) |
|
- | |||||
| 12 | 8189932 | Support, Visor Left (white) |
|
- | |||||
| 12 | 8189930 | Support, Visor Left (black) |
|
- | |||||
| 12 | 8189931 | Support, Visor Left (biscuit) |
|
- | |||||
| 12 | 8189964 | Support, Visor Right (white) |
|
- | |||||
| 12 | 8189963 | Support, Visor Right (biscuit) |
|
- | |||||
| 13 | 8189952 | Endcap Right (black) |
|
- | |||||
| 13 | 8189934 | Endcap Left (biscuit) |
|
- | |||||
| 13 | 8189954 | Endcap Right (white) |
|
- | |||||
| 13 | 8189953 | Endcap Right (biscuit) |
|
- | |||||
| 13 | 8189935 | Endcap Left (white) |
|
- | |||||
| 13 | 8189933 | Endcap Left (black) |
|
- | |||||
| 14 | 8189936 | Support, Switch |
|
- | |||||
| 15 | W11731942 | Switch, Slide Scl2 (Replaces: 8189621) |
|
$ 89.95 | |||||
| 16 | 8189937 | Lens, Light |
|
- | |||||
| 17 | 8189941 | Button, Control (biscuit) |
|
- | |||||
| 17 | 8189942 | Button, Control (white) |
|
- | |||||
| 17 | 8189940 | Button, Control (black) |
|
- | |||||
| 18 | 8189945 | Cover (white) |
|
- | |||||
| 18 | 8189943 | Cover (black) |
|
- | |||||
| 18 | 8189944 | Cover (biscuit) |
|
- | |||||
| 19 | 8189948 | Nameplate (white) |
|
- | |||||
| 19 | 8189947 | Nameplate (biscuit) |
|
- | |||||
| 19 | 8189946 | Nameplate (black) |
|
- | |||||
| 20 | 4360359 | Light |
|
- | |||||
| 21 | 8189950 | Button, Control (biscuit) |
|
- | |||||
| 21 | 8189951 | Button, Control (white) |
|
- | |||||
| 21 | 8189949 | Button, Control (black) |
|
- | |||||
| 22 | WPW10252122 | Switch, Slide Scl3 (Replaces: 8189622) |
|
$ 331.91 | |||||
| 24 | 4360150 | Nut |
|
- | |||||
| 25 | 8190044 | Screw, Mounting |
|
- | |||||
| 26 | 4360001 | Damper, Hood |
|
- | |||||
| 27 | 4360190 | Cover, Exhaust |
|
- | |||||
| 28 | 8189957 | Case (main Body) (biscuit) |
|
- | |||||
| 28 | 8189958 | Case (main Body) (stainless) |
|
- | |||||
| 28 | 8189956 | Case (main Body) (black) |
|
- | |||||
| 28 | 8189959 | Case (main Body) (white) |
|
- | |||||
| 32 | 4360146 | Nut, Ground |
|
$ 6.02 | |||||
| 33 | 4360005 | Washer |
|
$ 5.62 | |||||
| 34 | 4360006 | Screw |
|
$ 6.12 | |||||
| 37 | 8189960 | Socket, Lamp |
|
- | |||||
| 38 | 8206232A | Bulb, Light (Replaces: 8189961) |
|
Immediately | $ 7.71 | ||||
| 39 | 8189970 | Support, Light (biscuit) |
|
- | |||||
| 39 | 8189971 | Support, Light (stainless) |
|
- | |||||
| 39 | 8189972 | Support, Light (white) |
|
- | |||||
| 39 | 8189969 | Support, Light (black) |
|
- | |||||
| 40 | 8189973 | Lens, Light |
|
- | |||||
| 41 | 8189974 | Channel, Grease |
|
- | |||||
| 42 | 8189915 | Motor, Fan (left) |
|
- | |||||
| 42 | 8189975 | Motor, Fan (right) |
|
$ 404.94 | |||||
| 43 | 8189976 | Cup, Grease |
|
- | |||||
| 44 | 8189977 | Wheel, Blower (right) |
|
- | |||||
| 44 | 8189913 | Wheel, Blower (left) |
|
- | |||||
| 45 | 8189978 | Nut |
|
- | |||||
| 47 | 8189979 | Cover |
|
- | |||||
| 50 | 8189980 | Bracket, Capacitor |
|
- | |||||
| 51 | 8189981 | Capacitor |
|
- | |||||
| 53 | 8189985 | Pin, Visor Spring |
|
- | |||||
| 54 | 4396273 | Filter Kit 2 Charcoal Filters 1 Vent Grate |
|
$ 65.29 | |||||
| 54 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 54 | 8189986 | Spring |
|
- |
