01 - Hood Parts

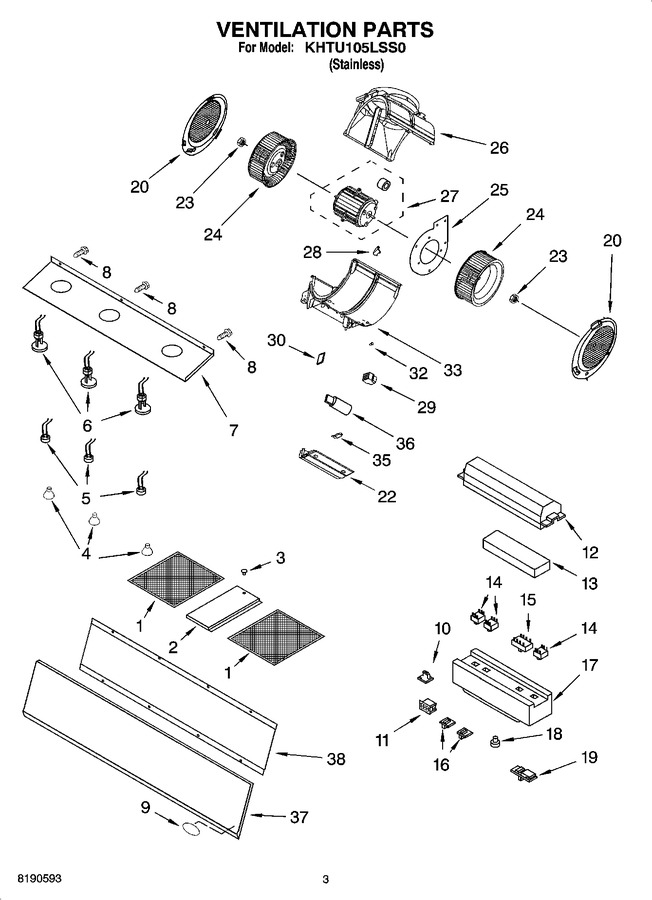

02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190556		Filter, Grease		Appelez-nous	-
2	8190557		Panel, Spacer		Appelez-nous	-
3	8190555		Button, Plug		Appelez-nous	-
4	WPW10252088		Bulb, Halogen   (Replaces: 8189593)			Immediately	$ 114.94
5	8189597		Holder, Bulb				$ 33.45
6	8189854		Support, Bulb		Appelez-nous	-
7	8190558		Support, Light		Appelez-nous	-
8	4360048		Screw (3)		Appelez-nous	-
9	8189616		Nameplate		Appelez-nous	-
10	8190569		Clamp		Appelez-nous	-
11	8190568		Connector		Appelez-nous	-
12	8190567		Cover, Switch		Appelez-nous	-
13	8190566		Support, Switch		Appelez-nous	-
14	W11731942		Switch, On/off   (Replaces: 8189621)				$ 89.95
15	WPW10252122		Switch, Motor   (Replaces: 8189622)				$ 331.91
16	8190563		Button, On/off		Appelez-nous	-
17	8190564		Box, Control		Appelez-nous	-
18	4360028		Lens, Indicator				$ 6.34
19	8190565		Button, Mtr Speed		Appelez-nous	-
20	8190581		Support (left)		Appelez-nous	-
20	8190580		Support (right)		Appelez-nous	-
22	8190570		Cover		Appelez-nous	-
23	4360180		Nut, Locking		Appelez-nous	-
24	8190579		Impeller, Blower (right)		Appelez-nous	-
24	8190576		Impeller, Blower (left)		Appelez-nous	-
25	8190578		Plate, Mtr Mount		Appelez-nous	-
26	8190577		Housing, Upper Fan		Appelez-nous	-
27	8189627		Motor, Blower Includes Grommets		Appelez-nous	-
28	8190575		Clamp		Appelez-nous	-
29	8190573		Connector		Appelez-nous	-
30	8190384		Cover, Wire		Appelez-nous	-
32	8190582		Screw (2)				$ 34.13
33	8190574		Housing, Lower Fan		Appelez-nous	-
35	8190571		Bracket, Capacitor		Appelez-nous	-
36	8190572		Capacitor		Appelez-nous	-
37	8190553		Panel, Bottom		Appelez-nous	-
38	8190554		Cover, Front		Appelez-nous	-
38	4396565		Filters W/grate Ductless Operation				$ 130.49
38	N/A		Accessory Parts		Appelez-nous	-
