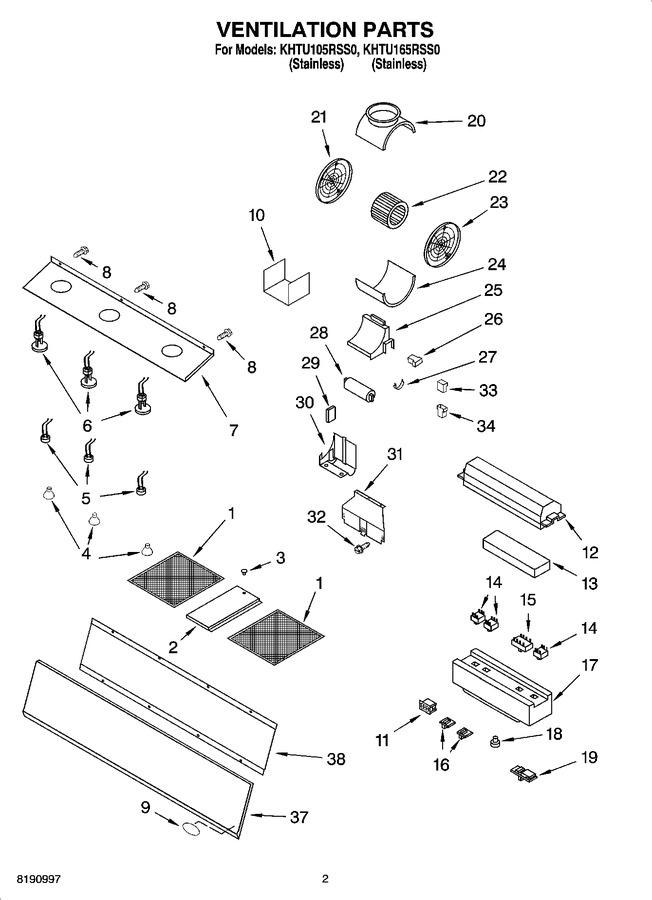

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10252087 | Filter, Grease (2) - 30`` Model (3) - 36`` Model (Replaces: 8189594) |
|
Immediately | $ 294.79 | ||||
| 2 | 8190557 | Panel, Spacer (30`` Model Only) |
|
- | |||||
| 3 | 8190555 | Button, Plug |
|
- | |||||
| 4 | WPW10252088 | Bulb, Halogen (Replaces: 8189593) |
|
Immediately | $ 114.94 | ||||
| 5 | 8190542 | Holder, Bulb |
|
- | |||||
| 6 | 8189854 | Support, Bulb |
|
- | |||||
| 7 | 8191026 | Support, Light (36`` Model) |
|
- | |||||
| 7 | 8190558 | Support, Light (30`` Model) |
|
- | |||||
| 8 | 4360048 | Screw (3) (hinge Pin) |
|
- | |||||
| 9 | 8189616 | Nameplate |
|
- | |||||
| 10 | 8189614 | Cover, Inlet |
|
- | |||||
| 11 | 8190381 | Connector |
|
- | |||||
| 12 | 8190567 | Cover, Switch |
|
- | |||||
| 13 | 8190566 | Support, Switch |
|
- | |||||
| 14 | W11731942 | Switch, On/off (Replaces: 8189621) |
|
$ 89.95 | |||||
| 15 | WPW10252122 | Switch, Motor (Replaces: 8189622) |
|
$ 331.91 | |||||
| 16 | 8190563 | Button, On/off |
|
- | |||||
| 17 | 8190564 | Box, Control |
|
- | |||||
| 18 | 4360028 | Lens, Indicator |
|
$ 6.34 | |||||
| 19 | 8190565 | Button, Mtr Speed |
|
- | |||||
| 20 | 8190389 | Housing, Upper |
|
- | |||||
| 21 | 8190388 | Support, Motor-sx |
|
$ 626.65 | |||||
| 22 | 8190390 | Motor, Blower |
|
- | |||||
| 23 | 8190391 | Support, Motor-dx |
|
$ 626.65 | |||||
| 24 | 8190387 | Housing, Lower |
|
- | |||||
| 25 | 8190392 | Cover, Wire |
|
- | |||||
| 26 | 8190393 | Connector |
|
- | |||||
| 27 | 8190386 | Cover, Wire |
|
- | |||||
| 28 | 8190385 | Capacitor |
|
- | |||||
| 29 | 8190384 | Cover, Box |
|
- | |||||
| 30 | 8190383 | Cover, Wire |
|
- | |||||
| 31 | 8191023 | Bracket, Mounting |
|
- | |||||
| 32 | 8190582 | Screw (2) |
|
$ 34.13 | |||||
| 33 | 8190409 | Connector, Female |
|
- | |||||
| 34 | 8190408 | Connector, Male |
|
- | |||||
| 37 | 8190553 | Panel, Bottom (30`` Model) |
|
- | |||||
| 37 | 8191024 | Panel, Bottom (36`` Model) |
|
- | |||||
| 38 | 4396565 | Filters W/grate Ductless Operation |
|
$ 130.49 | |||||
| 38 | 8190554 | Cover, Front (30`` Model) |
|
- | |||||
| 38 | 8191025 | Cover, Front (36`` Model) |
|
- | |||||
| 38 | N/A | Accessory Parts |
|
- |
