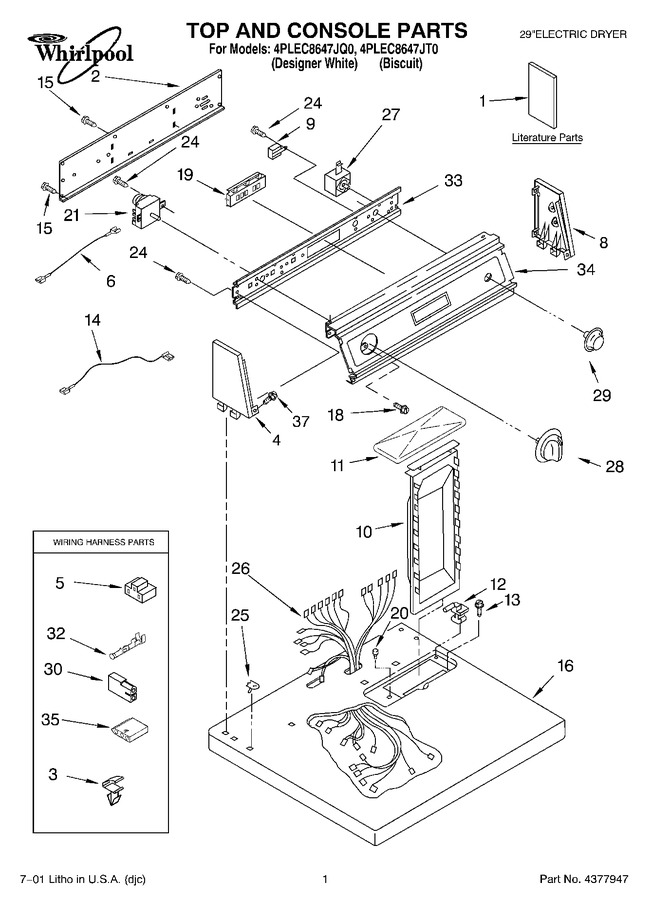

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8318359 | Literature Parts (guide, Use & Care) |
|
- | |||||
| 1 | LIT3397627 | Literature Parts (installation Instructions (english)) |
|
- | |||||
| 1 | LIT8318355 | Literature Parts (installation Instructions (korean)) |
|
- | |||||
| 1 | LIT8519771 | Literature Parts (label, Wiring Diagram) |
|
- | |||||
| 2 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 128.87 | |||||
| 3 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 4 | 8271365 | Cap, End (l.h.) (white) |
|
- | |||||
| 4 | 8271368 | Cap, End (l.h.) (biscuit) |
|
- | |||||
| 5 | 3401144 | Connector, (pts Realy) |
|
$ 12.20 | |||||
| 6 | 3401666 | Wire Jumper (yellow/black) |
|
- | |||||
| 6 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 8 | 8271359 | Cap, End (r.h.) (white) |
|
- | |||||
| 8 | 8271362 | Cap, End (r.h.) (biscuit) |
|
- | |||||
| 9 | 3952439 | Buzzer, Mini |
|
- | |||||
| 10 | WP349639 | Handle & Lint Screen Assembly (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8283378 | Cover, Lint Screen (white) |
|
$ 44.80 | |||||
| 11 | 8283380 | Cover, Lint Screen (biscuit) |
|
- | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.72 | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 3393811 | Wire, Jumper (violet) |
|
- | |||||
| 14 | 3393812 | Wire, Jumper (light Blue) |
|
- | |||||
| 14 | 3401667 | Wire, Jumper (white) |
|
- | |||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 16 | 8271390 | Top (white) |
|
- | |||||
| 16 | 8271392 | Top (biscuit) |
|
- | |||||
| 18 | 3400859 | Screw, 8-18 X 7/32 (grounding) |
|
$ 13.22 | |||||
| 19 | 8316077 | Switch, Clean Touch (white) |
|
- | |||||
| 19 | 8316078 | Switch, Clean Touch (biscuit) |
|
- | |||||
| 20 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 21 | WP3406282 | Timer Assembly (50 Hz.) (Replaces: 3406282) |
|
$ 350.94 | |||||
| 24 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 25 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 26 | 8283171 | Harness, Wiring |
|
- | |||||
| 27 | WPW10112633 | Switch, Push-to-start (Replaces: 8318447) |
|
$ 128.85 | |||||
| 28 | WP3957754 | Timer Knob Assembly (white) (Replaces: 8312687) |
|
$ 59.87 | |||||
| 28 | WP3957755 | Timer Knob Assembly (biscuit) (Replaces: 8271404) |
|
$ 2.49 | |||||
| 29 | WP3957799 | Knob, Push To Start (white) (Replaces: 8271339) |
|
$ 52.44 | |||||
| 29 | 3957797 | Knob, Push To Start (biscuit) (Replaces: 8271348) |
|
$ 50.40 | |||||
| 30 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 32 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 33 | 8271426 | Bracket, Control |
|
- | |||||
| 34 | 8318389 | Panel, Control (white) |
|
- | |||||
| 34 | 8318390 | Panel, Control (biscuit) |
|
- | |||||
| 35 | 3936144 | Connector (door Switch) |
|
$ 20.21 | |||||
| 37 | 4392900 | Paint, Bulk (1 Qt.) (biscuit) (uncut) |
|
- | |||||
| 37 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 37 | 4392901 | Paint, Pressurized Spray (12oz.) (biscuit) |
|
- | |||||
| 37 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.11 | |||||
| 37 | 4392899 | Biscuit |
|
Immediately | $ 26.45 | ||||
| 37 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 37 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 37 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 |
