01 - Hood Parts

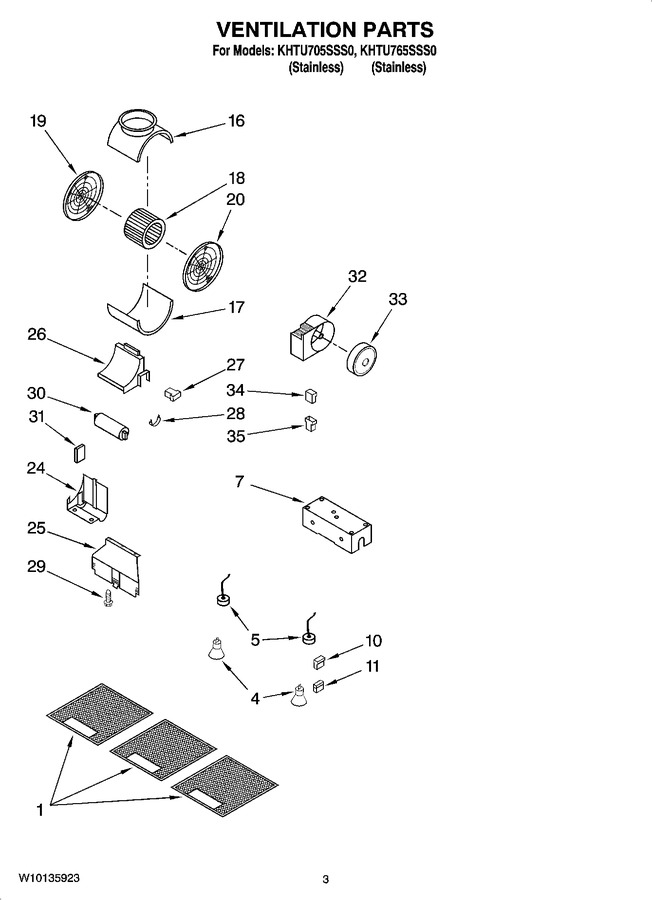

02 - Ventilation Parts, Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8191039 | Filter, Grease (30`` (2)) |
|
$ 81.68 | |||||
| 1 | 8191043 | Filter, Grease (36`` (3)) |
|
- | |||||
| 4 | 8191031 | Bulb, 20w |
|
- | |||||
| 5 | 8190542 | Holder, Bulb |
|
- | |||||
| 7 | 8191032 | Cover, Light (2) |
|
- | |||||
| 10 | 4360161 | Connector, Male |
|
$ 32.63 | |||||
| 11 | 4360162 | Connector, Female |
|
- | |||||
| 16 | 8190389 | Housing, Upper |
|
- | |||||
| 17 | 8190387 | Housing, Lower |
|
- | |||||
| 18 | 8190390 | Motor, Blower |
|
- | |||||
| 19 | 8190388 | Support, Motor-sx |
|
$ 626.65 | |||||
| 20 | 8190391 | Support, Motor-dx |
|
$ 626.65 | |||||
| 24 | 8190383 | Cover, Wire |
|
- | |||||
| 25 | 8191023 | Bracket, Mounting |
|
- | |||||
| 26 | 8190392 | Cover, Wire |
|
- | |||||
| 27 | 8190393 | Connector |
|
- | |||||
| 28 | 8190386 | Cover, Wire |
|
- | |||||
| 29 | 8190582 | Screw (2) |
|
$ 34.13 | |||||
| 30 | W10136368 | Capacitor |
|
$ 85.18 | |||||
| 31 | 8190384 | Cover, Box |
|
- | |||||
| 32 | 8191022 | Support |
|
- | |||||
| 33 | WPW10252120 | Transformer (Replaces: 8190410) |
|
$ 567.91 | |||||
| 34 | 8190409 | Connector, Female |
|
- | |||||
| 35 | 8190408 | Connector, Male |
|
- | |||||
| 8212462 | Trim, Front (30`` White) |
|
- | ||||||
| 8212461 | Trim, Front (30`` Biscuit) |
|
- | ||||||
| 8212470 | Trim, Front (36`` Meteorite Pro) |
|
- | ||||||
| 8212469 | Trim, Front (36`` Stainless Pro) |
|
- | ||||||
| 8212468 | Trim, Front (36`` Black) |
|
- | ||||||
| 8212467 | Trim, Front (36`` White) |
|
- | ||||||
| 8212466 | Trim, Front (36`` Biscuit) |
|
- | ||||||
| 8212465 | Trim, Front (30`` Meteorite Pro) |
|
- | ||||||
| 8212464 | Trim, Front (30`` Stainless Pro) |
|
- | ||||||
| 8212463 | Trim, Front (30`` Black) |
|
- |
