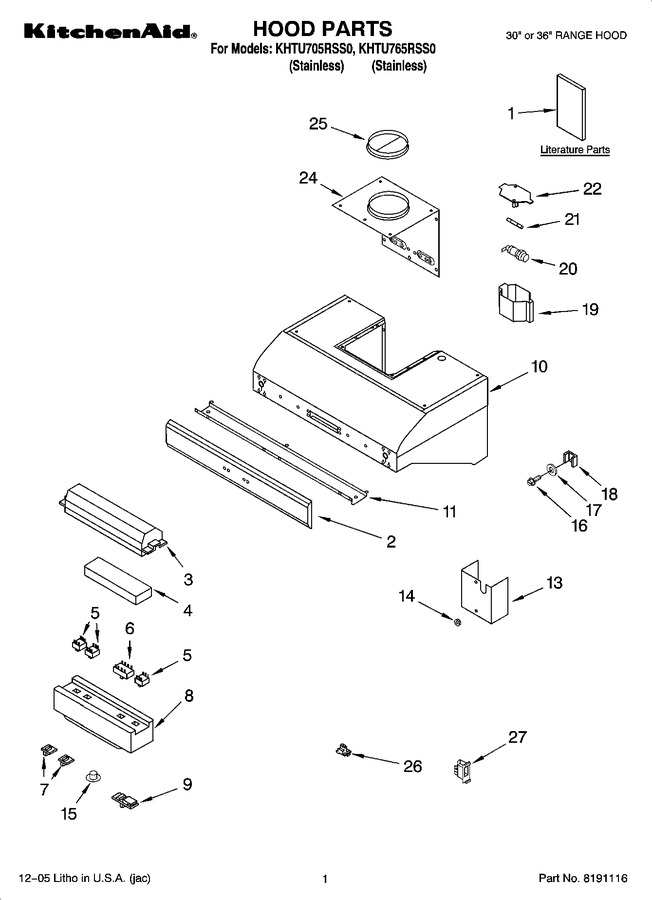

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8191028		Wiring Diagram		Appelez-nous	-
1	8191029		Owners Manual		Appelez-nous	-
2	8191041		Trim, Decorative (36``)		Appelez-nous	-
2	8191030		Trim, Decorative (30``)		Appelez-nous	-
3	8189624		Cover, Switch		Appelez-nous	-
4	8190566		Support, Switch		Appelez-nous	-
5	W11731942		Switch, On/off   (Replaces: 8189621)				$ 89.95
6	WPW10252122		Switch, Motor   (Replaces: 8189622)				$ 331.91
7	8189618		Button, On/off		Appelez-nous	-
8	8191040		Box, Control		Appelez-nous	-
9	8189620		Button, Mtr Speed		Appelez-nous	-
11	8191042		Support, Filter (36``)		Appelez-nous	-
11	8191038		Support, Filter (30``)		Appelez-nous	-
13	8189614		Box, Wiring		Appelez-nous	-
14	4360062		Clamp-stran Relief		Appelez-nous	-
15	4360028		Lens, Indicator				$ 6.34
16	4360006		Screw (2)				$ 6.12
17	4360005		Washer (2)				$ 5.62
18	4360146		Nut, Grnd Guide (2)				$ 6.02
19	8191033		Cover, Term Board		Appelez-nous	-
20	8191034		Block, Fuse				$ 32.31
21	8191035		Fuse		Appelez-nous	-
22	8191036		Base, Terminal Cov		Appelez-nous	-
24	8191037		Cover, Blower		Appelez-nous	-
25	8190358		Damper		Appelez-nous	-
26	8190381		Connector		Appelez-nous	-
27	8191006		Connector, Wire		Appelez-nous	-
