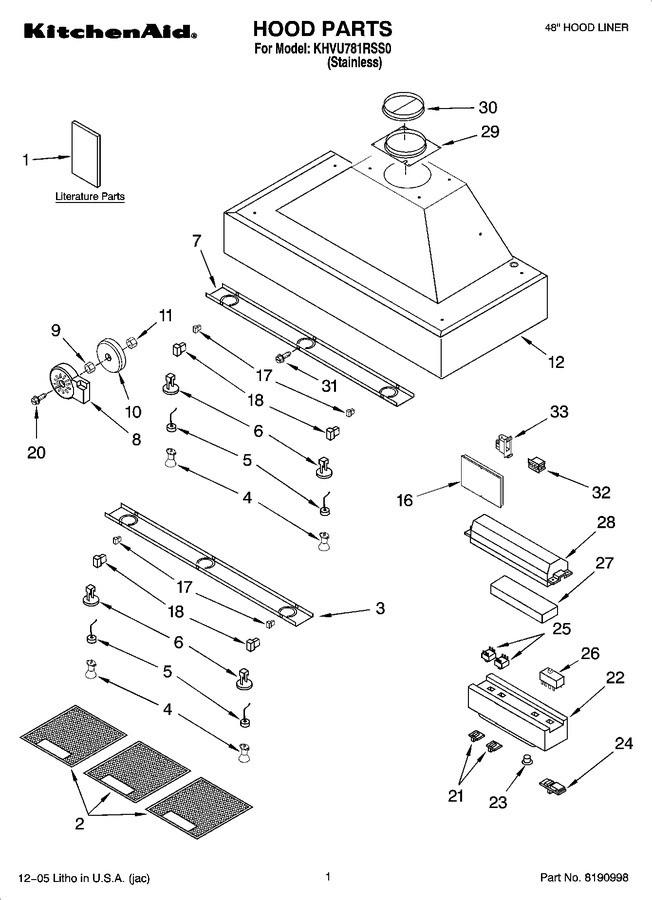

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8191044		Wiring Diagram		Appelez-nous	-
1	8191045		Instructions, Installation / Use & Care Guide		Appelez-nous	-
2	WPW10281491		Filter, Grease (4)   (Replaces: 8190541)				$ 268.00
3	8190543		Support, Light		Appelez-nous	-
4	WPW10252088		Bulb, Halogen (6)   (Replaces: 8189593)			Immediately	$ 114.94
5	8190542		Holder, Bulb (6)		Appelez-nous	-
6	8189598		Support, Bulb (6)		Appelez-nous	-
7	8190544		Support, Light		Appelez-nous	-
8	8190545		Blower		Appelez-nous	-
9	8190411		Nut				$ 5.88
10	8189856		Transformer		Appelez-nous	-
11	8190414		Nut		Appelez-nous	-
16	4360303		Cover, Dist Box		Appelez-nous	-
17	4360161		Connector, Male				$ 32.63
18	4360162		Connector, Female		Appelez-nous	-
20	8190403		Screw		Appelez-nous	-
21	8189618		Button, On/off		Appelez-nous	-
22	8191040		Box, Control		Appelez-nous	-
23	4360028		Lens, Light				$ 6.34
24	8189620		Button, Mtr Speed		Appelez-nous	-
25	W11731942		Switch, On/off   (Replaces: 8189621)				$ 89.95
26	WPW10252122		Switch, Mtr Speed   (Replaces: 8189622)				$ 331.91
27	8190566		Support		Appelez-nous	-
28	8189624		Cover, Switch		Appelez-nous	-
29	8190405		Extension, Flange		Appelez-nous	-
30	8190358		Damper, Hood		Appelez-nous	-
31	4360048		Pin, Hinge (6)		Appelez-nous	-
32	8190381		Connector, Male		Appelez-nous	-
33	8191006		Connector, Female		Appelez-nous	-
