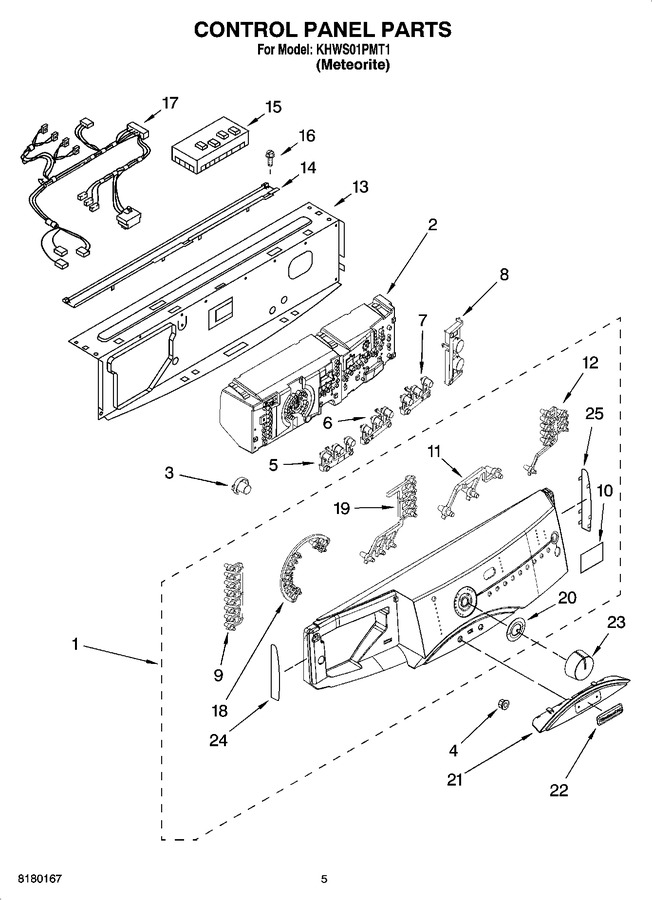

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8182163		Panel, Control		Appelez-nous	-
2	8182150		User Interface				$ 278.39
3	8182177		Button, Power		Appelez-nous	-
4	WP2004333		Pal-nut   (Replaces: 8182183)				$ 10.70
5	8182178		Button Set, Left		Appelez-nous	-
6	8182179		Button Set, Middle		Appelez-nous	-
7	8182176		Button Set, Right		Appelez-nous	-
8	8182180		Button Set, Start				$ 51.41
9	8182166		Light, Indicator (status)		Appelez-nous	-
10	8182170		Window, Display		Appelez-nous	-
11	8182168		Light, Indicator (3 Lights)		Appelez-nous	-
12	8182167		Light, Indicator (9 Lights)		Appelez-nous	-
13	8181639		Brace, Front Top		Appelez-nous	-
14	8181640		Channel, Water		Appelez-nous	-
15	8182149		Microcomputer, Machine Control		Appelez-nous	-
16	WP488729		Screw   (Replaces: 8181756)			Immediately	$ 7.79
17	8181784		Harness, Wire		Appelez-nous	-
18	8182165		Light, Indicator (program)		Appelez-nous	-
19	8182169		Light, Indicator (8 Lights)		Appelez-nous	-
20	8182171		Bezel, Knob		Appelez-nous	-
21	8182181		Overlay, Door		Appelez-nous	-
22	8182182		Medallion		Appelez-nous	-
23	8182175		Knob, Control		Appelez-nous	-
24	8182174		Endcap, Left		Appelez-nous	-
25	8182164		Endcap, Right		Appelez-nous	-
