SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Door And Latch Parts


03 - Control Panel Parts


04 - Dispenser Parts


05 - Tub And Basket Parts


06 - Pump And Motor Parts, And Optional Parts (not Included)


07 - Pedestal Parts (not Included)

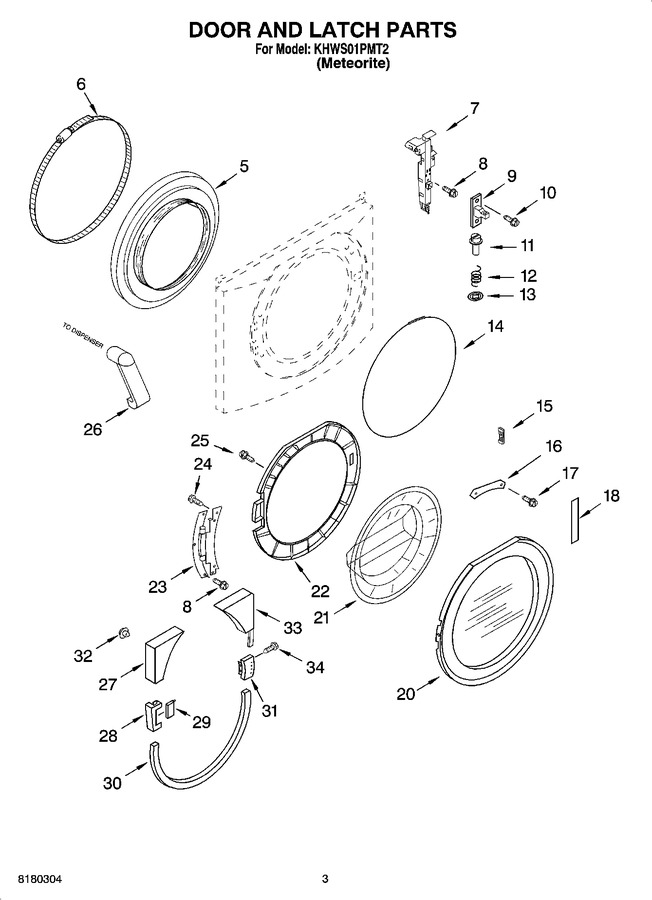

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WP8182119		Bellow   (Replaces: 8182119)			Immediately	$ 187.27
6	WP8182210		Clamp, Bellow (rear)   (Replaces: 8182210)			Immediately	$ 35.04
7	WP8182634		Lock, Door   (Replaces: 8181700)			Immediately	$ 107.85
8	WP8540725		Screw   (Replaces: 8181760)				$ 7.68
9	WP8181651		Hook, Door   (Replaces: 8181651)			Immediately	$ 12.46
10	W11230114		Screw   (Replaces: 8181758)				$ 13.28
11	8181652		Pin, Safety		Appelez-nous	-
12	8181653		Spring		Appelez-nous	-
13	8181654		Washer		Appelez-nous	-
14	W10902779		Clamp, Bellow (front)   (Replaces: 8182211)			Immediately	$ 30.31
15	8181659		Clamp, Support		Appelez-nous	-
16	8181650		Clamp, Glass		Appelez-nous	-
17	8181785		Screw				$ 6.33
18	8182153		Foam, Door Handle		Appelez-nous	-
20	8182151		Door Frame Asm		Appelez-nous	-
21	8181655		Glass, Door		Appelez-nous	-
22	8181849		Door, Back Support		Appelez-nous	-
23	8181843		Hinge, Door				$ 134.73
24	WP8181660		Screw   (Replaces: 8181660)				$ 6.95
25	WP8540282		Screw   (Replaces: 8181661)				$ 11.56
26	WPW10005300		Tube, Dispenser To Bellow   (Replaces: 8181718)			Immediately	$ 21.19
27	8182155		Trim, Upper Left		Appelez-nous	-
28	8182158		Cover, Hinge (outer)		Appelez-nous	-
29	8182154		Cover, Hinge (inner)		Appelez-nous	-
30	8182157		Trim, Lower		Appelez-nous	-
31	8182152		Handle, Door		Appelez-nous	-
32	8181929		Clip, Trim				$ 5.84
33	8182156		Trim, Upper Right		Appelez-nous	-
34	WP3400805		Screw   (Replaces: 8181759)				$ 7.19

    View Diagram in Separate Window       Print Part List
