Diagram # Part Number Description Series Availability Ships Price Add to Cart
5 WP8182119 Bellow   (Replaces: 8182119) In-Stock Immediately $ 187.27

6 WP8182210 Clamp, Bellow (rear)   (Replaces: 8182210) In-Stock Immediately $ 35.04

7 WP8182634 Lock, Door   (Replaces: 8182634) In-Stock Immediately $ 107.85

8 WP8540725 Screw   (Replaces: 8181760) Special Order $ 7.68

9 WP8181651 Hook, Door   (Replaces: 8181651) In-Stock Immediately $ 12.46

10 W11230114 Screw   (Replaces: 8181758) Special Order $ 13.28

14 W10902779 Clamp, Bellow (front)   (Replaces: 8182211) In-Stock Immediately $ 30.31

15 8181659 Clamp, Support Appelez-nous -
16 8181650 Clamp, Glass Appelez-nous -
17 8181785 Screw Special Order $ 6.33

18 8182153 Foam, Door Handle Appelez-nous -
20 8182151 Door Frame Asm Appelez-nous -
21 8181655 Glass, Door Appelez-nous -
22 8182678 Door, Back Support Appelez-nous -
23 8181843 Hinge, Door Special Order $ 134.73

24 WP8181660 Screw   (Replaces: 8181660) Special Order $ 6.95

25 WP8540282 Screw   (Replaces: 8181661) Special Order $ 11.56

26 WPW10005300 Tube, Dispenser To Bellow   (Replaces: 8181718) In-Stock Immediately $ 21.19

27 8182155 Trim, Upper Left (meteorite) Appelez-nous -
27 8182592 Trim, Upper Left (white) Appelez-nous -
28 8182627 Cover, Hinge (outer) (meteorite) Appelez-nous -
28 8182595 Cover, Hinge (outer) (white) Appelez-nous -
29 8182596 Cover, Hinge (inner) (white) Appelez-nous -
29 8182154 Cover, Hinge (inner) (meteorite) Appelez-nous -
30 8182157 Trim, Lower (meteorite) Appelez-nous -
30 8182594 Trim, Lower (white) Special Order $ 88.96

31 8182591 Handle, Door (white) Appelez-nous -
31 8182152 Handle, Door (meteorite) Appelez-nous -
32 8182779 Clip, Trim Special Order $ 14.04

33 8182593 Trim, Upper Right (white) Appelez-nous -
33 8182156 Trim, Upper Right (meteorite) Appelez-nous -
34 WP3400805 Screw   (Replaces: 8181759) Special Order $ 7.19

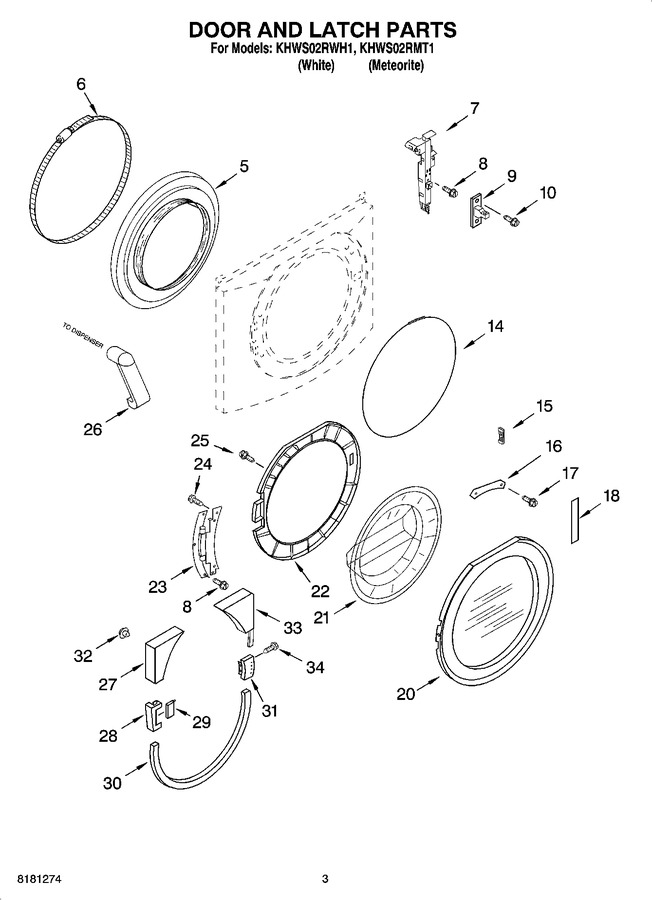

    View Diagram in Separate Window     Print Icon   Print Part List
