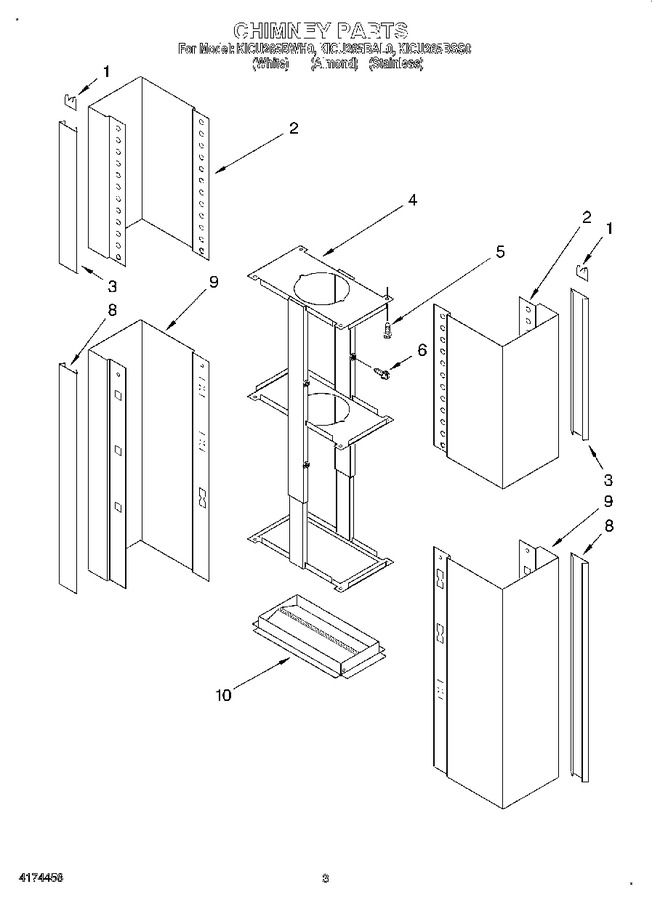

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360272 | Spring, Moulding |
|
- | |||||
| 2 | 4360282 | Upper Chimney (stainless Model) |
|
- | |||||
| 2 | 4360271 | Upper Chimney (white Model) |
|
- | |||||
| 2 | 4360292 | Upper Chimney (almond Model) |
|
- | |||||
| 3 | 4360283 | Moulding, Upper (stainless Model) |
|
- | |||||
| 3 | 4360273 | Moulding, Upper (white Model) |
|
- | |||||
| 3 | 4360293 | Moulding, Upper (almond Model) |
|
- | |||||
| 4 | 4360269 | Frame, Telescopic |
|
- | |||||
| 5 | 4360268 | Screw |
|
- | |||||
| 6 | 4360270 | Screw |
|
- | |||||
| 8 | 4360284 | Moulding, Lower (stainless Model) |
|
- | |||||
| 8 | 4360294 | Moulding, Lower (almond Model) |
|
- | |||||
| 8 | 4360274 | Moulding, Lower (white Model) |
|
- | |||||
| 9 | 4360275 | Lower Chimney (white Model) |
|
- | |||||
| 9 | 4360295 | Lower Chimney (almond Model) |
|
- | |||||
| 9 | 4360285 | Lower Chimney (stainless Model) |
|
- | |||||
| 10 | 814380 | Kit , Motor Mount |
|
- | |||||
| 10 | 4360178 | Damper |
|
- |
