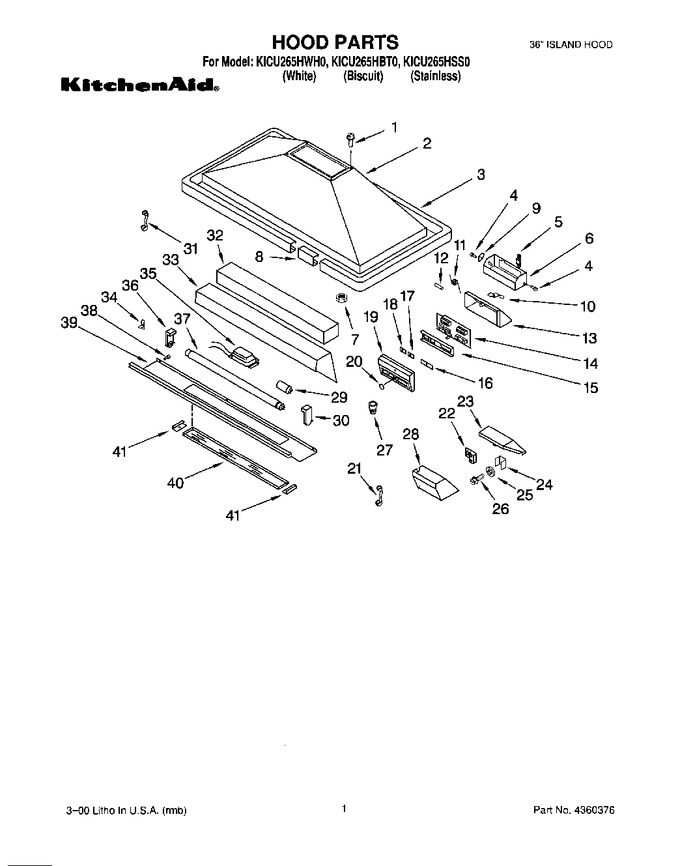

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360236 | Screw |
|
- | |||||
| 2 | N/A | Hood, Canopy (not A Serviceable Part) |
|
- | |||||
| 3 | 4360278 | Trim (stainless Model) |
|
- | |||||
| 3 | 4360235 | Trim (white Model) |
|
- | |||||
| 3 | 4360402 | Trim (biscuit Model) |
|
- | |||||
| 4 | 4360238 | Pin |
|
- | |||||
| 5 | 4360239 | Clamp, Cable |
|
- | |||||
| 6 | 4360240 | Housing, Control |
|
- | |||||
| 7 | 4360074 | Nut |
|
- | |||||
| 8 | 4360233 | Trim, Connector (white Model) |
|
- | |||||
| 8 | 4360401 | Trim, Connector (biscuit Model) |
|
- | |||||
| 8 | 4360276 | Trim, Connector (stainless Model) |
|
- | |||||
| 9 | 4360241 | Lever |
|
- | |||||
| 10 | 4360242 | Clamp, Cable |
|
- | |||||
| 11 | 4360243 | Spring |
|
- | |||||
| 12 | 4360244 | Pin |
|
- | |||||
| 13 | 4360245 | Control Box |
|
- | |||||
| 14 | 4360246 | Board, Control |
|
- | |||||
| 15 | 4360247 | Support, Actuators |
|
- | |||||
| 16 | 4360248 | Actuator, 1-2-3 |
|
- | |||||
| 17 | 4360249 | Actuator, Motor |
|
- | |||||
| 18 | 4360250 | Actuator, Lighting |
|
- | |||||
| 19 | 4360251 | Cover, Box |
|
- | |||||
| 20 | 4360028 | Cover, Lamp |
|
$ 6.34 | |||||
| 21 | 4360147 | Strain Relief |
|
- | |||||
| 22 | 4360391 | Control, Speed |
|
- | |||||
| 23 | 4360253 | Box, Distribution |
|
- | |||||
| 24 | 4360146 | Ground Guide |
|
$ 6.02 | |||||
| 25 | 4360005 | Washer |
|
$ 5.62 | |||||
| 26 | 4360006 | Screw |
|
$ 6.12 | |||||
| 27 | 4360211 | Nut, Wire (8) |
|
- | |||||
| 28 | 4360254 | Cover, Box |
|
- | |||||
| 29 | 4360260 | Starter |
|
- | |||||
| 30 | 4360261 | Holder |
|
- | |||||
| 31 | 4360062 | Relief, Strain |
|
- | |||||
| 32 | 4360258 | Protection, Wiring |
|
- | |||||
| 33 | 4360259 | Support Neon |
|
- | |||||
| 34 | 4360044 | Clamp, Wiring |
|
- | |||||
| 35 | 4360045 | Ballast |
|
- | |||||
| 36 | 4360266 | Lamp Holder |
|
- | |||||
| 37 | 4360014 | Lamp |
|
- | |||||
| 38 | 4360048 | Pin, Grille |
|
- | |||||
| 39 | 4360281 | Support, Filter (stainless Model) |
|
- | |||||
| 39 | 4360405 | Support, Filter (biscuit Model) |
|
- | |||||
| 39 | 4360267 | Support, Filter (white Model) |
|
- | |||||
| 40 | 4360264 | Glass, Light |
|
- | |||||
| 41 | 4360263 | Side, Lighting |
|
- |
