01 - Hood Parts

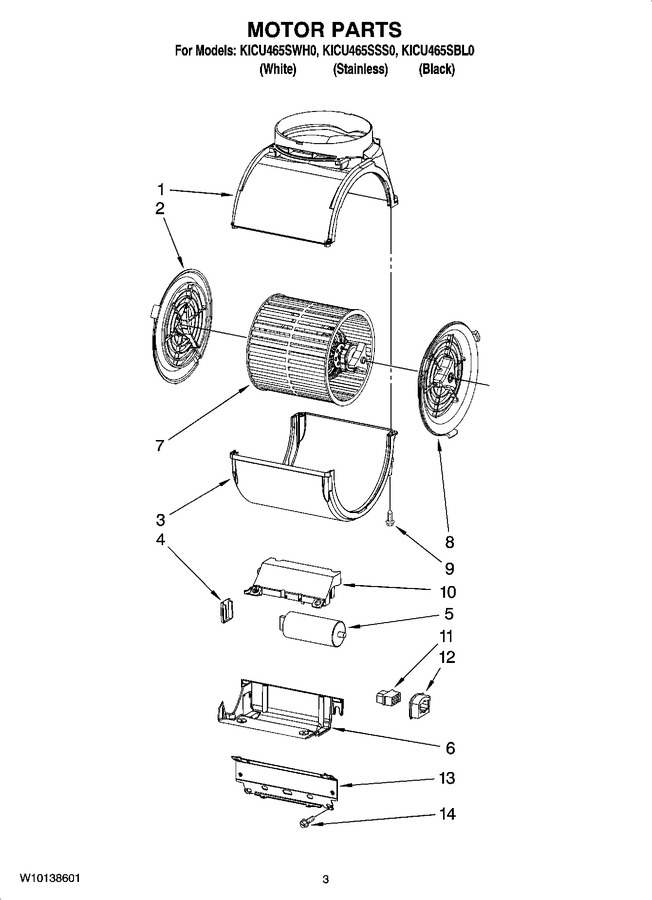

02 - Motor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8190389 | Housing, Fan (upper) |
|
- | |||||
| 2 | 8190388 | Support, Motor Lh |
|
$ 626.65 | |||||
| 3 | W10138388 | Housing, Fan (lower) |
|
- | |||||
| 4 | 8190384 | Cover |
|
- | |||||
| 5 | W10136368 | Capacitor |
|
$ 85.18 | |||||
| 6 | W10138387 | Cover, Wiring |
|
- | |||||
| 7 | W10138389 | Motor Assy |
|
- | |||||
| 8 | 8190391 | Support, Motor Rh |
|
$ 626.65 | |||||
| 9 | W10138393 | Screw |
|
- | |||||
| 10 | W10138390 | Box, Electrical |
|
- | |||||
| 11 | 8190393 | Connector |
|
- | |||||
| 12 | W10138392 | Connection, 6-way |
|
- | |||||
| 13 | W10138391 | Bracket |
|
- | |||||
| 14 | 8190582 | Screw |
|
$ 34.13 |
