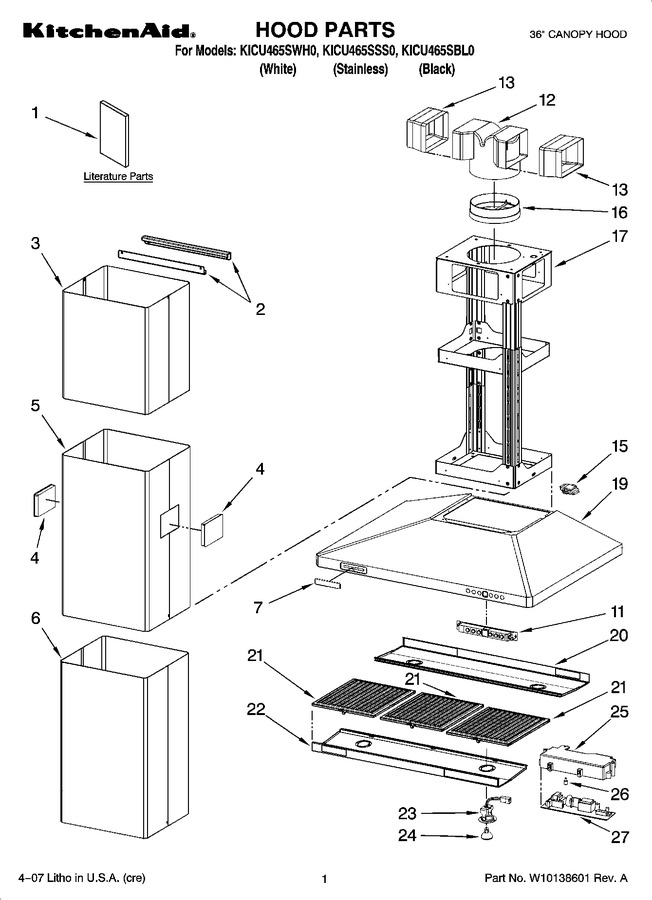

01 - Hood Parts
02 - Motor Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10094880 | Use & Care Guide |
|
- | |||||
| 2 | W10139307 | Spacer (upper & Lower) |
|
- | |||||
| 2 | W10139308 | Spacer (center) |
|
- | |||||
| 3 | W10139309 | Pipe, Fitting (upper) (white) |
|
- | |||||
| 3 | W10139311 | Pipe, Fitting (upper) (s.steel) |
|
- | |||||
| 3 | W10139310 | Pipe, Fitting (upper) (black) |
|
- | |||||
| 4 | 4360332 | Air-outlet (rh S.steel) |
|
- | |||||
| 4 | 4360323 | Air-outlet (rh White) |
|
- | |||||
| 4 | 4360330 | Air-outlet (lh S.steel) |
|
- | |||||
| 4 | W10138373 | Air-outlet (lh Black) |
|
- | |||||
| 4 | 4360316 | Air-outlet (lh White) |
|
- | |||||
| 4 | W10138372 | Air-outlet (rh Black) |
|
- | |||||
| 5 | W10139314 | Pipe Fitting (ducted) (s.steel) |
|
- | |||||
| 5 | W10139312 | Pipe Fitting (ducted) (white) |
|
- | |||||
| 5 | W10139313 | Pipe Fitting (ducted) (black) |
|
- | |||||
| 6 | W10139317 | Pipe Fitting (ductless) (s.steel) |
|
- | |||||
| 6 | W10139316 | Pipe Fitting (ductless) (black) |
|
- | |||||
| 6 | W10139315 | Pipe Fitting (ductless) (white) |
|
- | |||||
| 7 | W10138380 | Nameplate (white) |
|
- | |||||
| 7 | W10138382 | Nameplate (s.steel) |
|
- | |||||
| 7 | W10138381 | Nameplate (black) |
|
- | |||||
| 11 | W10138386 | Board, Control |
|
- | |||||
| 12 | 8190355 | Duct, Air |
|
- | |||||
| 13 | W10139318 | Duct, Air Spacer |
|
- | |||||
| 15 | 8191005 | Box, Control |
|
- | |||||
| 16 | 8190358 | Damper, Hood |
|
- | |||||
| 19 | W10139304 | Hood (white) |
|
- | |||||
| 19 | W10139306 | Hood (s.steel) |
|
- | |||||
| 19 | W10139305 | Hood (black) |
|
- | |||||
| 20 | W10139302 | Support, Rear Lt (black) |
|
- | |||||
| 20 | W10139303 | Support, Rear Lt (s.steel) |
|
- | |||||
| 20 | W10139301 | Support, Rear Lt (white) |
|
- | |||||
| 21 | WPW10252087 | Filter (Replaces: 8189594) |
|
Immediately | $ 294.79 | ||||
| 22 | W10139300 | Support, Front Lt (s.steel) |
|
- | |||||
| 22 | W10139298 | Support, Front Lt (white) |
|
- | |||||
| 22 | W10139299 | Support, Front Lt (black) |
|
- | |||||
| 23 | W10138354 | Socket, Light (4) |
|
- | |||||
| 24 | WPW10252088 | Bulb, Light (4) (Replaces: W10114395) |
|
Immediately | $ 114.94 | ||||
| 25 | W10138395 | Box, Control |
|
- | |||||
| 26 | W10138394 | Knob, Control |
|
- | |||||
| 27 | W10138496 | Control, Motor |
|
- |
