SELECT A DIAGRAM

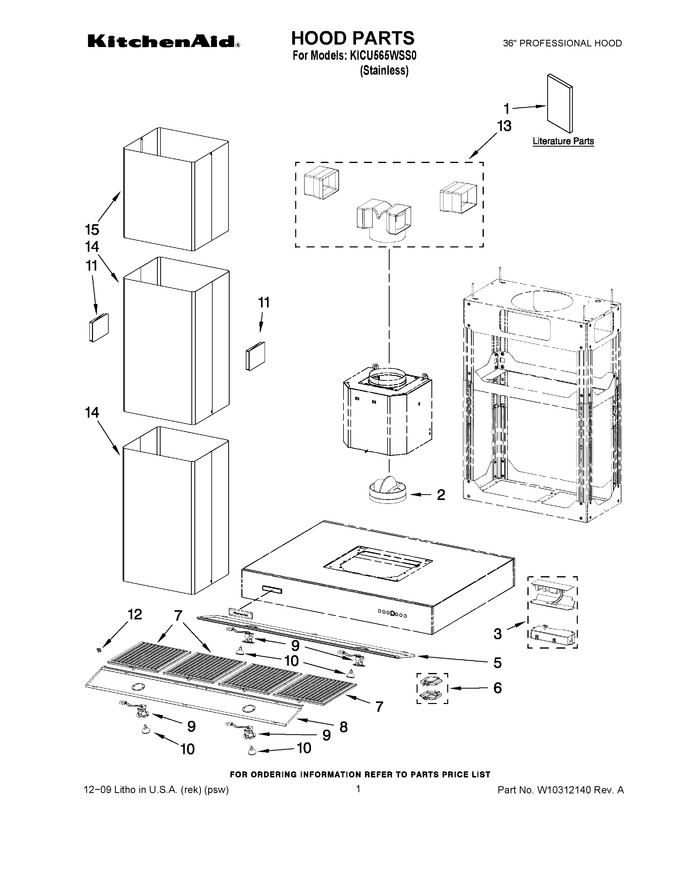

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10268947		Use & Care Guide		Appelez-nous	-
2	W10252123		Damper, Hood				$ 136.81
3	W10281728		Box, Control				$ 792.47
5	W10281719		Support, Filters		Appelez-nous	-
6	W10252738		Housing, Control		Appelez-nous	-
7	WPW10252087		Filter, Grease   (Replaces: W10252087)			Immediately	$ 294.79
8	W10281718		Cover, Lights		Appelez-nous	-
9	W10252116		Socket, Bulb				$ 267.02
10	WPW10252088		Bulb, Halogen   (Replaces: W10252088)			Immediately	$ 114.94
11	W10281711		Grid, Directional		Appelez-nous	-
12	W10252785		Clamp, Cable		Appelez-nous	-
13	W10281727		Kit, Diverter		Appelez-nous	-
14	W10281726		Chimney, Lower (chimney, Lower)		Appelez-nous	-
14	W10281725		Chimney, Lower (chimney, Lower)		Appelez-nous	-
15	W10281724		Chimney, Upper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
