SELECT A DIAGRAM

01 - Cooktop Parts

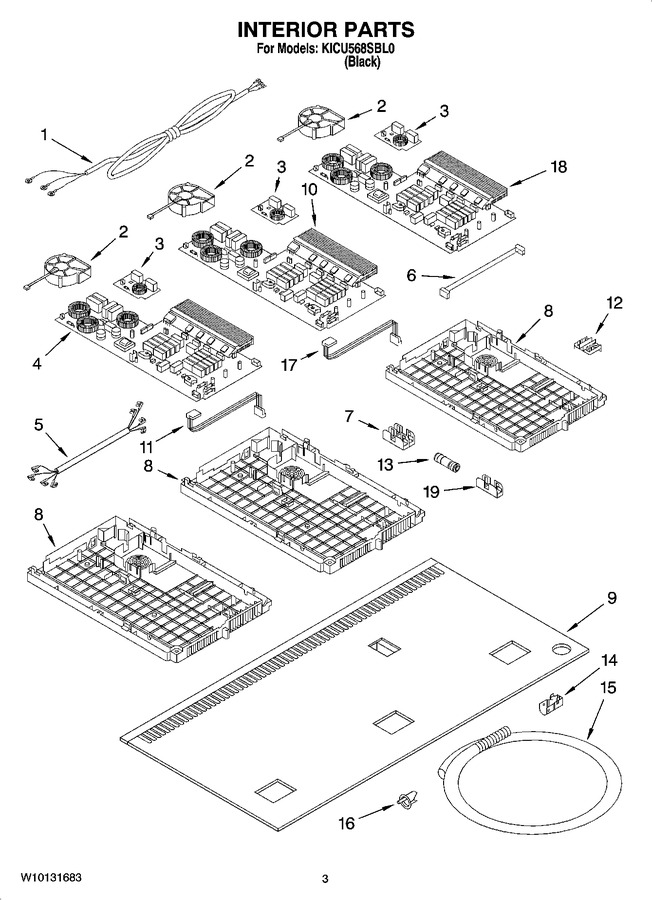

02 - Interior Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10122358		Cord, Power		Appelez-nous	-
2	W10122363		Fan, Blower				$ 258.00
3	W10134543		Control, Elec				$ 183.62
4	W10122364		Control, Elec				$ 790.95
5	W10134545		Harness, Wire		Appelez-nous	-
6	W10122361		Harness, Wire				$ 16.75
7	W10122375		Block, Fuse		Appelez-nous	-
8	W10122362		Bracket, Control				$ 166.24
9	W10122369		Cover, Bottom		Appelez-nous	-
10	W10122366		Control, Elec		Appelez-nous	-
11	W10122376		Harness, Wire (t Control)		Appelez-nous	-
12	W10122379		Block, Terminal		Appelez-nous	-
13	W10122374		Fuse				$ 138.22
14	W10122370		Bracket, Mounting				$ 35.90
15	W10122371		Conduit		Appelez-nous	-
16	W10122372		Bushing		Appelez-nous	-
17	W10122378		Harness, Wire				$ 89.74
18	W10122367		Control, Elec		Appelez-nous	-
19	W10122373		Block, Fuse		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
