SELECT A DIAGRAM

01 - 8 Cube Compact Ice Maker


02 - Cabinet Back


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice Bucket And Ice Maker


10 - Machine Compartment


11 - Ref


12 - Ref Door


13 - Ref Door


14 - Ref Shelving And Drawers

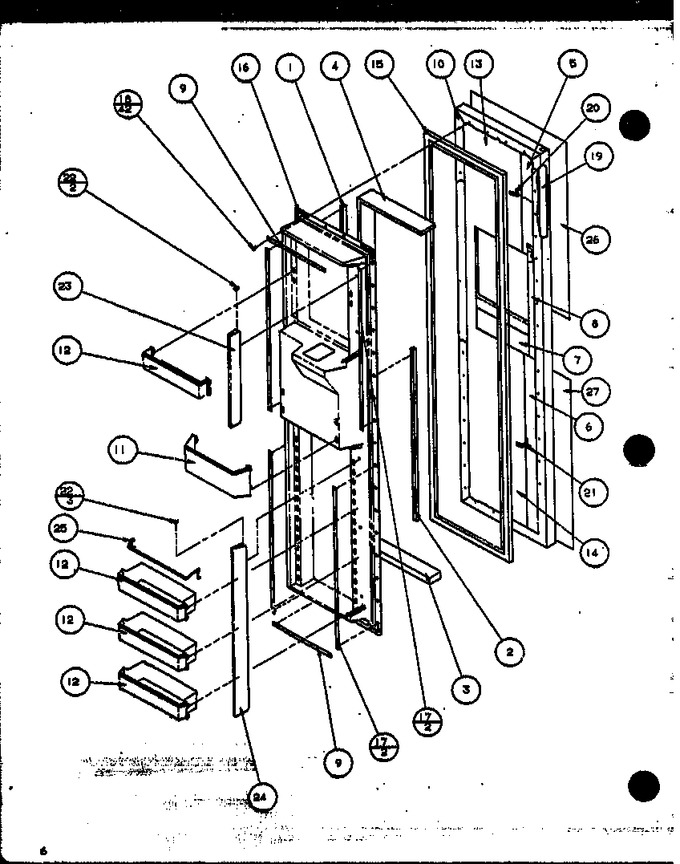

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8987101		Seal, Door Dike		Appelez-nous	-
2	C8987103		Seal, Door Dike		Appelez-nous	-
3	B0523562		Insul. By The Ft.		Appelez-nous	-
4	B0523583		Insulation, Per Ft.		Appelez-nous	-
5	B5629049		Insulation		Appelez-nous	-
6	B5629050		Insulation		Appelez-nous	-
7	B5629048		Insulation		Appelez-nous	-
8	B5629051		Insulation		Appelez-nous	-
9	C8982801		Retainer, Door Liner		Appelez-nous	-
10	D7882732		Door Frz L		Appelez-nous	-
11	D7783508		Shelf, Half Fz. Dr		Appelez-nous	-
12	D7827310		Shelf, Frz Door		Appelez-nous	-
13	D7800406		Foam Slab Door		Appelez-nous	-
14	D7800407		Foam Slab Door		Appelez-nous	-
15	D7870904		Gasket (w Frz Dr)		Appelez-nous	-
16	D7829403		Liner I & W Freezer		Appelez-nous	-
17	D7828601		Retainer, Door Liner		Appelez-nous	-
18	M0219730		Screw				$ 7.65
19	C8964201		Tube, Protective		Appelez-nous	-
20	B8388802		Clip		Appelez-nous	-
21	B8388701		Clip		Appelez-nous	-
22	10063101		Clip, Door Dike		Appelez-nous	-
23	10063202		Rem Dike I & W Upper		Appelez-nous	-
24	10063204		Removable Dike I & W		Appelez-nous	-
25	10175702		Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
