SELECT A DIAGRAM

01 - Lid And Latch Parts


02 - Control Panel Parts


03 - Tub/sink Parts

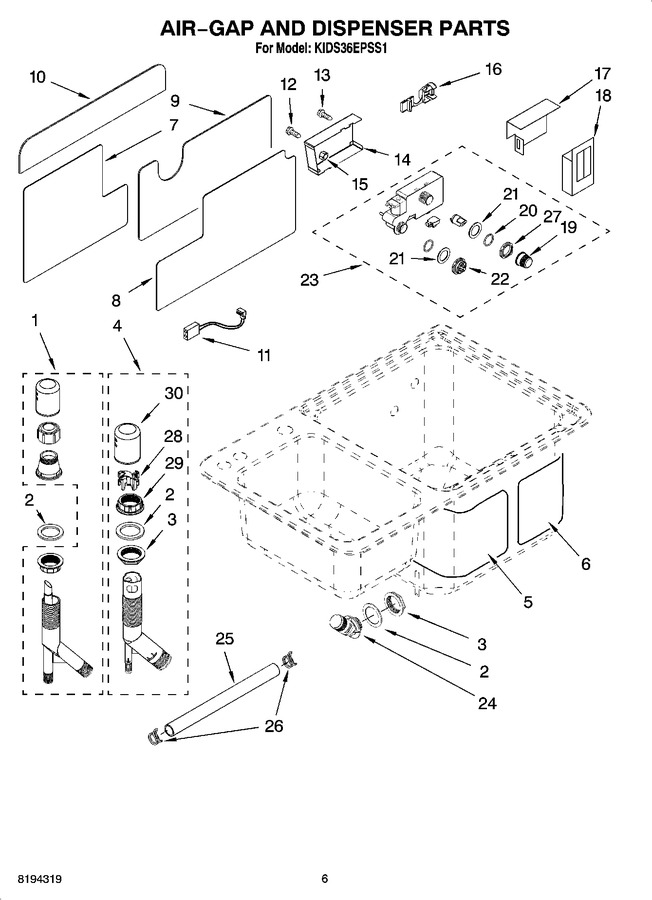

04 - Air-gap And Dispenser Parts


05 - Pump And Motor Parts


06 - Sump And Strainer Parts


07 - Dishrack And Sprayarm Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8529490		Air-gap Drain (also Order Item 2)		Appelez-nous	-
2	8529497		Gasket, Fittings		Appelez-nous	-
3	8529496		Nut, Air-gap		Appelez-nous	-
4	8529494		Air-gap, Fill		Appelez-nous	-
5	8529461		Mastic, Front Left Side		Appelez-nous	-
6	8529462		Mastic, Front Right Side		Appelez-nous	-
7	8529463		Mastic, Back Left Side		Appelez-nous	-
8	8529464		Mastic, Back Right Side		Appelez-nous	-
9	8529520		Mastic, Left Side		Appelez-nous	-
10	8536992		Mastic, Bottom Rear		Appelez-nous	-
11	8529412		Harness, Dispenser		Appelez-nous	-
12	WPW10068250		Screw   (Replaces: 3400829)				$ 4.27
13	WPW10348409		Screw   (Replaces: 3369051)			Immediately	$ 8.20
14	8529430		Cover, Rinse Aid Dispenser		Appelez-nous	-
15	WP488130		Nut   (Replaces: 3371579)				$ 7.32
16	3400950		Strain Relief		Appelez-nous	-
17	8536985		Shield, Coil		Appelez-nous	-
18	8536984		Shield, Switch		Appelez-nous	-
19	8565560		Cap, Fill Rinse Aid		Appelez-nous	-
20	8529365		``o`` Ring Dispenser		Appelez-nous	-
21	8529362		Gasket, Fill Cup		Appelez-nous	-
22	8565561		Cap, Dispenser		Appelez-nous	-
23	8572523		Dispenser, Rinse Aid		Appelez-nous	-
24	8529487		Fitting, Water Inlet		Appelez-nous	-
25	8559822		Hose, Fill Large		Appelez-nous	-
26	8281275		Clamp, Large		Appelez-nous	-
27	8565559		Nut, Fill Rinse Aid		Appelez-nous	-
28	8529499		Insert, Air-gap		Appelez-nous	-
29	8529498		Nut, Air Gap-top		Appelez-nous	-
30	8529492		Cap, Air-gap		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
