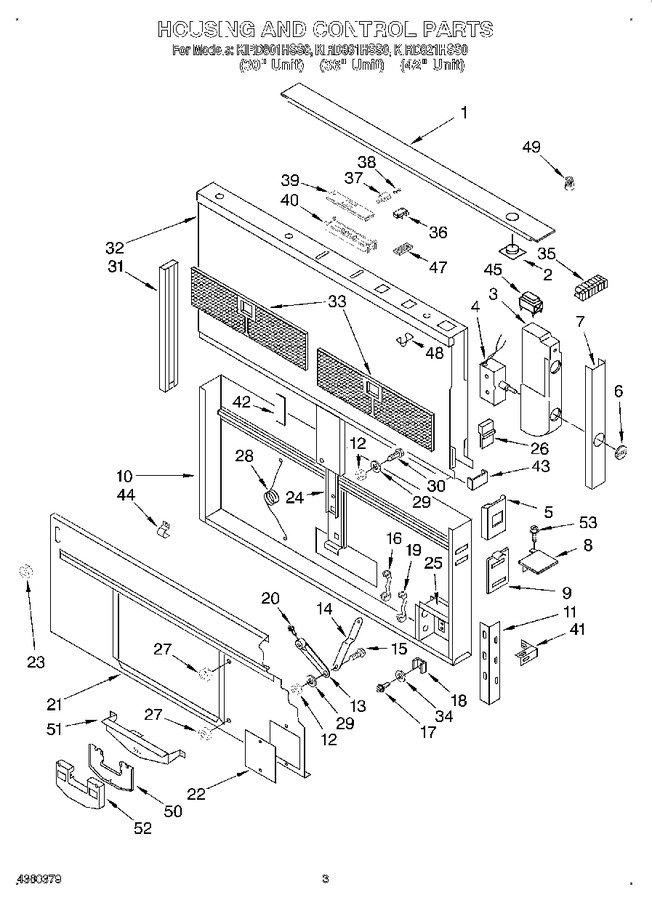

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4360375 | Cover, Controls (top) (kird861) |
|
- | |||||
| 1 | 4360388 | Cover, Controls (top) (kird821) |
|
- | |||||
| 1 | 4360374 | Cover, Controls (top) (kird801) |
|
- | |||||
| 2 | 4360216 | Button, Push |
|
- | |||||
| 3 | 4360134 | Housing, Switch |
|
- | |||||
| 4 | 4360135 | Switch, Fan |
|
- | |||||
| 5 | 4360136 | Bracket, Shield (left Hand) |
|
- | |||||
| 5 | 4360387 | Bracket, Shield (right Hand) |
|
- | |||||
| 6 | 4360137 | Knob |
|
- | |||||
| 7 | 4360138 | Panel, Control |
|
- | |||||
| 8 | 4360381 | End Cap (left) |
|
- | |||||
| 8 | 4360382 | End Cap (right) |
|
- | |||||
| 9 | 4360140 | Plate, Support (upper) (2) |
|
- | |||||
| 10 | N/A | Housing, (not Serviceable) |
|
- | |||||
| 11 | 4360141 | Bracket, Support (lower R.h.) |
|
- | |||||
| 11 | 4360170 | Bracket, Support (lower L.h.) |
|
- | |||||
| 12 | 4360142 | Nut |
|
- | |||||
| 13 | 4360143 | Arm, Gear Motor |
|
- | |||||
| 14 | 4360144 | Arm, Cavity |
|
- | |||||
| 15 | 4360145 | Bolt |
|
- | |||||
| 16 | 4360062 | Relief, Strain |
|
- | |||||
| 17 | 4360006 | Screw |
|
$ 6.12 | |||||
| 18 | 4360146 | Nut |
|
$ 6.02 | |||||
| 19 | 4360147 | Strain Relief |
|
- | |||||
| 20 | 4360148 | Screw |
|
- | |||||
| 21 | N/A | Cover, Housing (not Serviceable) |
|
- | |||||
| 22 | 4360149 | Cover, Wiring Box |
|
- | |||||
| 23 | 4360150 | Nut |
|
- | |||||
| 24 | N/A | Guide, Housing (not Serviceable) |
|
- | |||||
| 25 | 4360152 | Box, Wiring |
|
- | |||||
| 26 | 4360153 | Clamp |
|
- | |||||
| 27 | WP776338 | Nut (Replaces: 4360156) |
|
$ 20.32 | |||||
| 28 | 4360157 | Spring |
|
- | |||||
| 29 | 98007193 | Washer (Replaces: 4360158) |
|
$ 10.38 | |||||
| 30 | 4360159 | Bolt |
|
- | |||||
| 31 | 4360160 | Trim, R.h. |
|
- | |||||
| 33 | WPW10396091 | Filter, Grease (kird801) (Replaces: 4360193) |
|
Immediately | $ 141.99 | ||||
| 33 | WPW10381779 | Filter, Grease (kird861, Kird821) (Replaces: 4360194) |
|
$ 137.12 | |||||
| 34 | 4360005 | Washer |
|
$ 5.62 | |||||
| 35 | 4360165 | Terminal |
|
- | |||||
| 36 | W10235643 | Micro Switch (2) (Replaces: 4360361) |
|
$ 318.87 | |||||
| 37 | W10235643 | Actuator, Micro Switch (2) (Replaces: 4360166) |
|
$ 318.87 | |||||
| 38 | W10235643 | Spring (2) (Replaces: 4360167) |
|
$ 318.87 | |||||
| 39 | W10235643 | Cover, Switch (2) (Replaces: 4360168) |
|
$ 318.87 | |||||
| 40 | W10235643 | Housing, Switch (2) (Replaces: 4360169) |
|
$ 318.87 | |||||
| 41 | 4360172 | Support (r.h.) |
|
- | |||||
| 41 | 4360171 | Support (l.h.) |
|
- | |||||
| 42 | 4360173 | Guide, Housing (back) |
|
$ 6.41 | |||||
| 43 | 4360174 | Spacer, Cavity (2) |
|
- | |||||
| 44 | 4360044 | Clamp, Wiring |
|
- | |||||
| 45 | 4360210 | Switch |
|
- | |||||
| 47 | 4360385 | Connector (3) |
|
- | |||||
| 48 | 4360272 | Spring (3) |
|
- | |||||
| 49 | 4360211 | Nut, Wire |
|
- | |||||
| 50 | 4360230 | Cover, Box |
|
- | |||||
| 51 | 4360155 | Bracket, Motor |
|
- | |||||
| 52 | 4360229 | Box, Microswitch |
|
- | |||||
| 53 | 4360198 | Installation Kit |
|
- | |||||
| 53 | 814380 | Kit , Motor Mount |
|
- | |||||
| 53 | 4360386 | Screw |
|
- | |||||
| LIT4360363 | Installation Instructions/ Use And Care Guide |
|
- | ||||||
| 4360227 | Cooktop Strip |
|
- | ||||||
| 8171304 | Trim Kit-white (kird801) |
|
- | ||||||
| 8171318 | Trim Kit-biscuit (kird821) |
|
- | ||||||
| 8171317 | Trim Kit-black (kird821) |
|
- | ||||||
| 8171316 | Trim Kit-white (kird821) |
|
- | ||||||
| 8171312 | Trim Kit-biscuit (kird861) |
|
- | ||||||
| 8171311 | Trim Kit-black (kird861) |
|
- | ||||||
| 8171310 | Trim Kit-white (kird861) |
|
- | ||||||
| 8171306 | Trim Kit-biscuit (kird801) |
|
- | ||||||
| 8171305 | Trim Kit-black (kird801) |
|
$ 180.82 |
