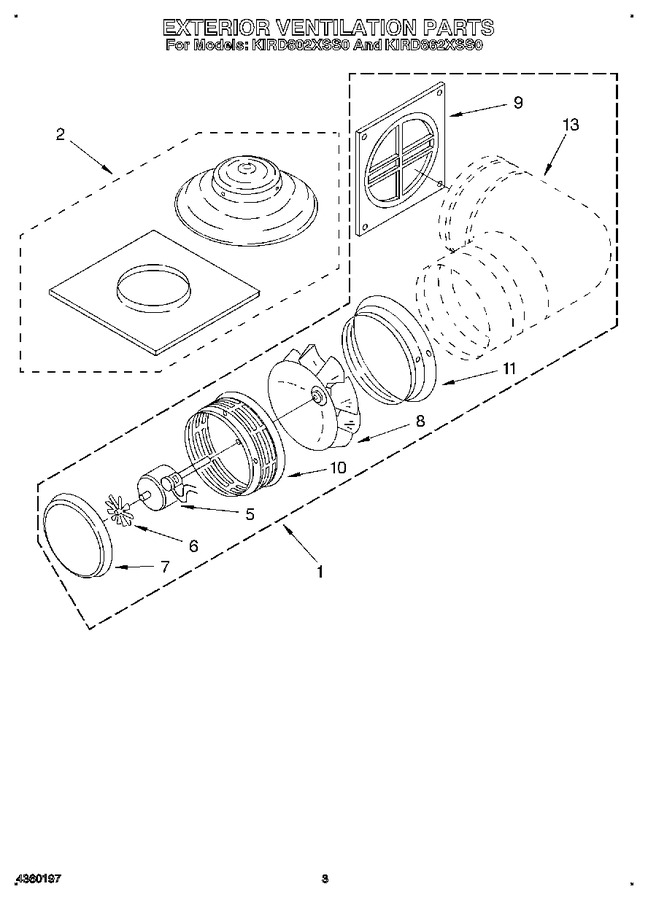

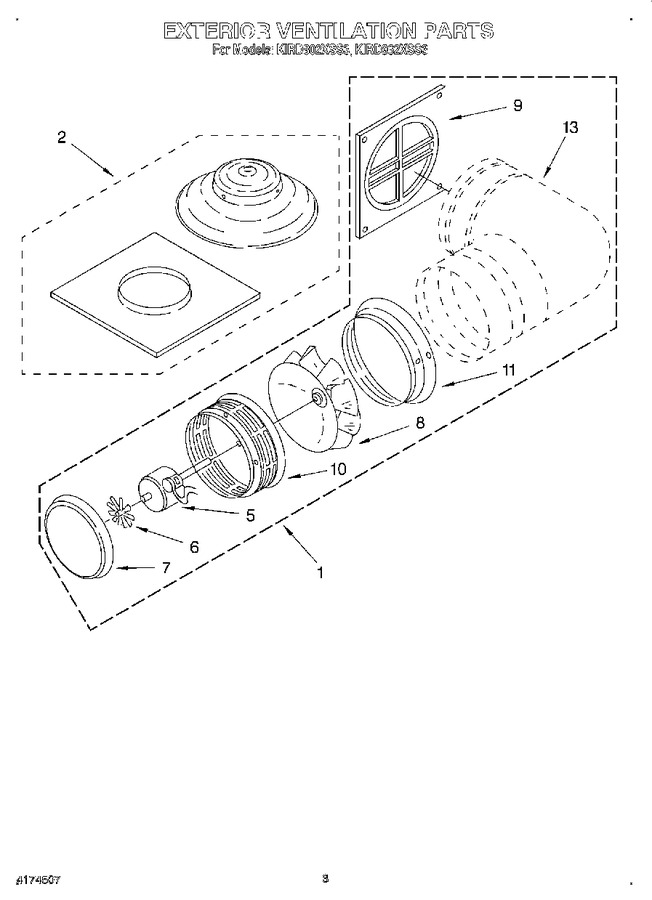

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4173296 | Roof Mounting Kit (dome Cover And Flashing) |
|
- | |||||
| 5 | 4173414 | Motor (includes Capacitor & Cap) |
|
- | |||||
| 6 | 4173415 | Blade, Fan |
|
- | |||||
| 7 | 4173417 | Cover, Motor (wall Mount) |
|
- | |||||
| 8 | 4173416 | Impeller |
|
- | |||||
| 9 | 4173456 | Plate, Adaptor (with Damper) |
|
- | |||||
| 10 | N/A | Housing, (not Serviceable) |
|
- | |||||
| 13 | 4360208 | Trim Kit-black (kird862) |
|
- | |||||
| 13 | 4360205 | Trim Kit-white (kird802) |
|
- | |||||
| 13 | 4360207 | Trim Kit-black (kird802) |
|
- | |||||
| 13 | 4360206 | Trim Kit-white (kird862) |
|
- |
