01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit

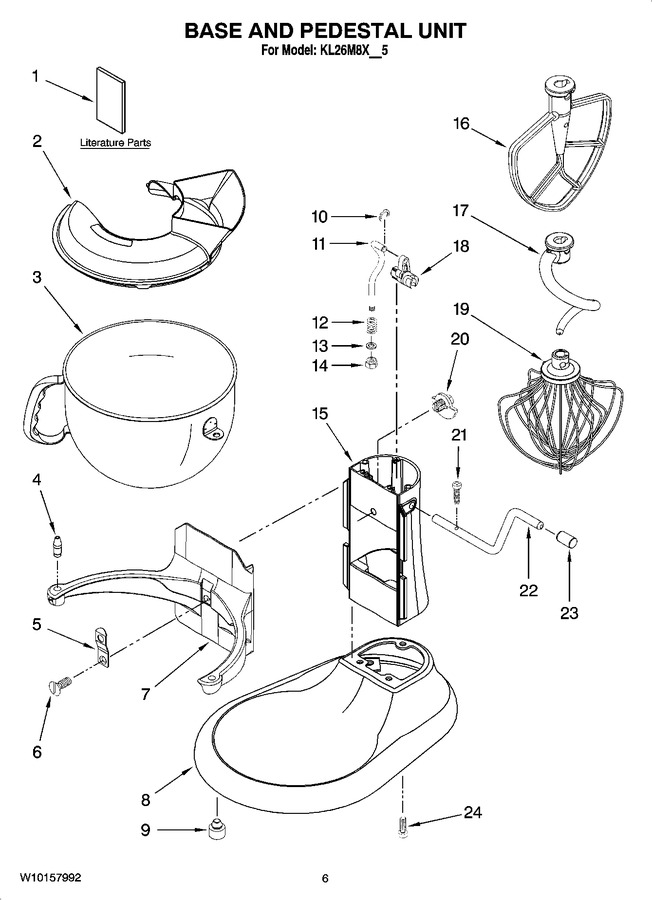

03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9708307 | Use & Care, Trilin |
|
- | |||||
| 1 | W10157992 | Repair Parts List |
|
- | |||||
| 2 | WPW10617049 | Shield, Pouring (Replaces: 9709924) |
|
$ 63.02 | |||||
| 3 | W11770849 | Bowl (6 Qt) (Replaces: 9703687) |
|
Immediately | $ 91.11 | ||||
| 4 | WP240185 | Pin, Bowl Locating (Replaces: 240185) |
|
$ 4.50 | |||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | W10861883 | Screw (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 9 | WP9708649 | Foot, Rubber (Replaces: 9708649) |
|
Immediately | $ 4.79 | ||||
| 10 | WP9703307 | Clip (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 11 | W11775238 | Rod, Bowl Lift (Replaces: 9706787) |
|
$ 5.73 | |||||
| 12 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 13 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 14 | 8533907 | Nut |
|
$ 24.83 | |||||
| 16 | W11646967 | Beater, Flat (Replaces: 9703485) |
|
Immediately | $ 48.92 | ||||
| 17 | W11646968 | Hook, Dough (Replaces: 9703655) |
|
Immediately | $ 43.28 | ||||
| 18 | WP9706885 | Arm, Bowl Lift (Replaces: 9706885) |
|
Immediately | $ 5.17 | ||||
| 19 | WPW10600940 | Whip, Wire (Replaces: 9707637) |
|
$ 124.95 | |||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | WP3400814 | Screw (Replaces: 3400863) |
|
$ 4.62 | |||||
| 22 | W11778321 | Handle, Bowl Lift (Replaces: 9706788) |
|
$ 24.01 | |||||
| 23 | W11501449 | Handle (Replaces: 9703698) |
|
$ 24.12 | |||||
| 24 | W10913677 | Screw (Replaces: 3400200) |
|
$ 4.64 | |||||
| 4164749 | Food Grinder (fg-a) |
|
- | ||||||
| 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a)) |
|
- | ||||||
| RVSA | Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa) (Replaces: 4164750) |
|
$ 115.50 | ||||||
| FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | ||||||
| 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | ||||||
| 8211924 | Grain Mill, Kgma |
|
- | ||||||
| 8212519 | Ice Cream Maker (kica0wh0) |
|
- | ||||||
| W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | |||||
| 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | ||||||
| 4164747 | Can Opener, Co |
|
- | ||||||
| 4164748 | Juicer, Je |
|
- | ||||||
| 4162838 | Food Tray (ft) |
|
- | ||||||
| 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | ||||||
| 4164824 | Pasta Maker Plates Snpa |
|
- |
