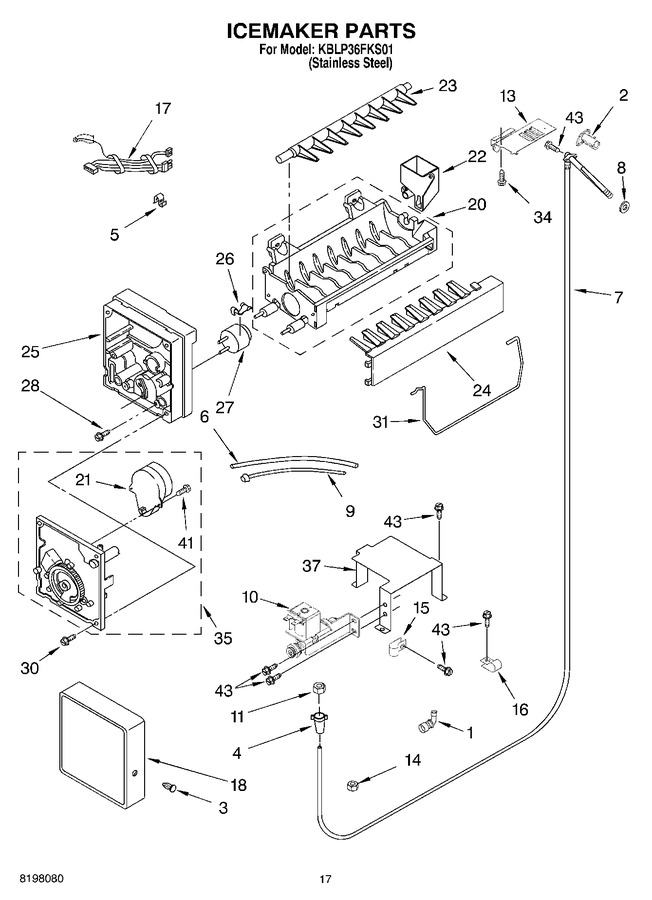

10 - Ice Maker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2204597		Tube, Valve		Appelez-nous	-
2	WP2221240		Heater, Fill Tube   (Replaces: 2221240)				$ 206.58
3	489115		Fastener-snap In				$ 5.51
4	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 11.10
6	2214613		Tube, Filter Inlet		Appelez-nous	-
7	2221140		Water Inlet Tube Assembly		Appelez-nous	-
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
9	2254800		Tube, Filter Outlet		Appelez-nous	-
10	WP2313917		Valve, Solenoid   (Replaces: 2254709)			Immediately	$ 249.28
11	2204357		Nut Compression		Appelez-nous	-
13	WP2221231		Shield, Heat   (Replaces: 2221231)				$ 89.33
14	2215656		Plug, Water Valve		Appelez-nous	-
15	489348		Clamp, Nylon Valve		Appelez-nous	-
16	488946		Clamp, Tube				$ 21.47
17	2254792		Wire Harness, Icemaker				$ 54.13
18	2221232		Cover		Appelez-nous	-
20	WPW10190929		Mold & Heater (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.78
21	W10190935		Motor   (Replaces: 628398)			Immediately	$ 110.07
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 53.75
23	WP627843		Ejector   (Replaces: 2194711)				$ 87.78
24	WP2182124		Ice Striper   (Replaces: 2182124)				$ 90.35
25	WP2195914		Support   (Replaces: 2195914)				$ 109.80
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 627796)				$ 11.60
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 114.64
27	542639		Cement Alumilastic)		Appelez-nous	-
28	8533917		Screw   (Replaces: 489322)				$ 14.04
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 8.25
31	2221172		Shut Off Arm		Appelez-nous	-
34	WP489478		Screw   (Replaces: 489478)				$ 8.18
35	W10190935		Module Assembly (includes Items 21 & 41)   (Replaces: 628399)			Immediately	$ 110.07
37	2221282		Water Valve Mounting Bracket		Appelez-nous	-
41	489136		Screw, (2)				$ 10.80
43	W11624204		Screw   (Replaces: 486194)				$ 14.72
100	4317943		Complete Icemaker Assembly			Immediately	$ 183.45
100	978849		Black Acrylic Static Cleaner				$ 15.82
100	2220953		Front Panel Kit (black)		Appelez-nous	-
100	2220952		Front Panel Kit (white)		Appelez-nous	-
100	2220955		Front Panel Kit (stainless Steel)		Appelez-nous	-
100	2220954		Front Panel Kit (biscuit)		Appelez-nous	-
