SELECT A DIAGRAM
02 - Cabinet
03 - Liner , Lit/optional
04 - Door
05 - Unit
06 - Breaker And Shelf

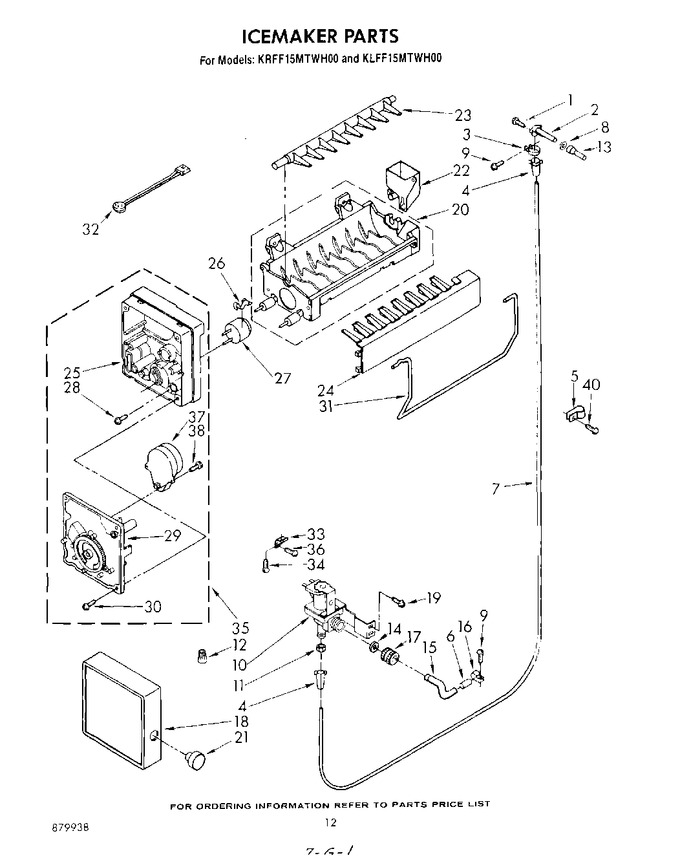

07 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw, 8 X 1/2 (Replaces: 489084) |
|
$ 8.05 | |||||
| 2 | WP2196157 | Fitting, Water Tube (Replaces: 836489) |
|
Immediately | $ 12.59 | ||||
| 3 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 12.18 | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 841707) |
|
$ 8.23 | |||||
| 5 | 836472 | Tube, Clamp |
|
- | |||||
| 6 | WP2158826 | Dampener (Replaces: 836074) |
|
$ 1.82 | |||||
| 7 | W10823511 | Tube Water (Replaces: 937669) |
|
Immediately | $ 32.41 | ||||
| 8 | WP1106508 | Seal, Gasket (Replaces: 1103059) |
|
Immediately | $ 10.43 | ||||
| 9 | WP965173 | Screw 8 X 1/2 (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 10 | 4318047 | Valve Solenoid (Replaces: 627910) |
|
Immediately | $ 74.09 | ||||
| 11 | WP627018 | Nut, Compression (Replaces: 627018) |
|
$ 11.51 | |||||
| 12 | 227991 | Connector Wire |
|
- | |||||
| 13 | 836491 | Tube, Water Inlet |
|
- | |||||
| 14 | WP16123 | Washer (Replaces: 488292) |
|
$ 8.16 | |||||
| 15 | 627854 | Tube, Inlet Valve |
|
- | |||||
| 16 | 510716 | Clamp Tube |
|
- | |||||
| 17 | 537588 | Nut, Valve |
|
- | |||||
| 18 | WPW10289690 | Cover (Replaces: 1117230) |
|
Immediately | $ 8.82 | ||||
| 19 | WPW10141625 | Screw, 8-32 X 1/2 (Replaces: 488649) |
|
$ 22.22 | |||||
| 20 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: 627997) |
|
$ 233.15 | |||||
| 21 | 1117082 | Knob |
|
- | |||||
| 22 | WP628356 | Bearing & Inlet (Replaces: 627791) |
|
$ 53.75 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 87.78 | |||||
| 24 | WP2182124 | Ice Striper (Replaces: 627788) |
|
$ 90.35 | |||||
| 25 | WP2195914 | Support (Replaces: 627790) |
|
$ 109.80 | |||||
| 26 | WP2315522 | Retainer, Thermostat (Replaces: 627796) |
|
$ 11.60 | |||||
| 27 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 114.64 | |||||
| 28 | 489258 | Screw, 10-32 X 49/64 |
|
- | |||||
| 29 | W10190935 | Module, Assembly (Replaces: 628135) |
|
Immediately | $ 110.07 | ||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 31 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 88.76 | |||||
| 32 | WP628172 | Harness, Wiring (Replaces: 627906) |
|
$ 110.31 | |||||
| 33 | WP2256087 | Bracket (Replaces: 627915) |
|
$ 97.65 | |||||
| 34 | 00489128 | Screw, 8-32 X 27/64 (Replaces: 489128) |
|
$ 859.97 | |||||
| 35 | W10190935 | Module Assembly (includes Items 25, 28, 29, 30, 37, & 38) (Replaces: 483042) |
|
Immediately | $ 110.07 | ||||
| 36 | WP681414 | Screw, 8-15 X 1/2 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 37 | W10190935 | Motor (Replaces: 627811) |
|
Immediately | $ 110.07 | ||||
| 38 | 489136 | Screw (3-24 X 23/64) |
|
$ 10.80 | |||||
| 40 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 8.40 |
