SELECT A DIAGRAM

01 - Case, Gearing And Planetary Unit

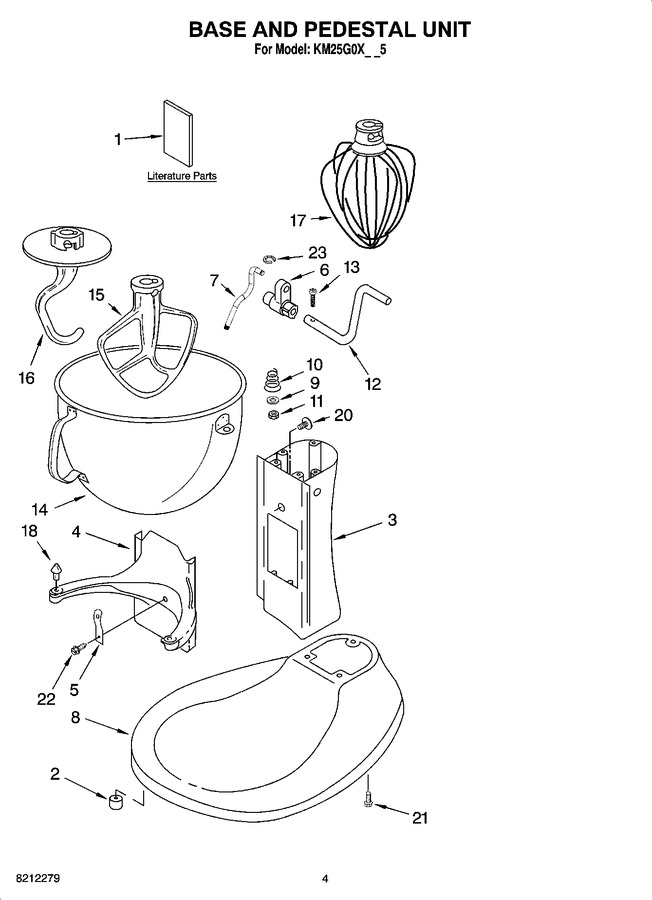

02 - Base And Pedestal Unit, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9707796		Use & Care Guide		Appelez-nous	-
1	8212279		Repair Parts List		Appelez-nous	-
2	WP9708649		Foot, Rubber (5)   (Replaces: 9708649)			Immediately	$ 4.79
3	9703673		Column Assembly				$ 81.26
4	9707633		Bowl Support (includes Item 18)		Appelez-nous	-
5	WPW10504114		Latch, Bowl Spring   (Replaces: 9703474)			Immediately	$ 5.14
6	WP9706885		Arm, Bowl Lift   (Replaces: 9706885)			Immediately	$ 5.17
7	W11775238		Rod, Bowl Lift   (Replaces: 9706787)				$ 5.73
8	9703690		Base And Foot Assembly		Appelez-nous	-
9	W11708395		Washer   (Replaces: 9703439)				$ 4.47
10	4159622		Spring   (Replaces: 9237)			Immediately	$ 4.70
11	8533907		Nut   (Replaces: 4159092)				$ 24.83
12	W11778321		Handle, Bowl Lift   (Replaces: 9706788)				$ 24.01
13	WP3400814		Screw   (Replaces: 3400863)				$ 4.62
14	9707681		Bowl (5 Qt)		Appelez-nous	-
15	W11356332		Beater, Flat   (Replaces: 4176045)				$ 20.94
16	WPW10674622		Dough Hook   (Replaces: 9708196)				$ 33.99
17	3177259		Wire Whip   (Replaces: 9704310)				$ 40.67
18	WP240185		Pin, Bowl Locating   (Replaces: 4162028)				$ 4.50
20	W11721849		Cam, Adjusting   (Replaces: 9703426)				$ 6.08
21	W10913677		Screw, 1/4-20 X 3/4   (Replaces: 3400200)				$ 4.64
22	W10861883		Screw, 10-24 X 1/2   (Replaces: 3400018)			Immediately	$ 4.94
23	WP9703307		Clip   (Replaces: 9703307)			Immediately	$ 4.42
	4164778		Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs-a), (fpp-a))		Appelez-nous	-
	RVSA		Rotor Slicer/shredder(with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin Slicer (rvsa)   (Replaces: 4164750)				$ 115.50
	FVSP		Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp)   (Replaces: 4164775)				$ 117.81
	4164768		Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a)		Appelez-nous	-
	8211924		Grain Mill, Kgma		Appelez-nous	-
	4164749		Food Grinder (fg-a)		Appelez-nous	-
	9707963		Ice Cream Maker, Kica0wh0		Appelez-nous	-
	W11200218		Grease, Planetary   (Replaces: 4160588)			Immediately	$ 86.08
	4164803		Sausage Stuffer, Kit, Ssa		Appelez-nous	-
	4164747		Can Opener, Co		Appelez-nous	-
	4164748		Juicer, Je		Appelez-nous	-
	4162838		Food Tray (ft)		Appelez-nous	-
	4164774		Fruit/vegetable Strainer And Food Grinder, Fvs/fga		Appelez-nous	-
	4164824		Pasta Maker Plates Snpa		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
