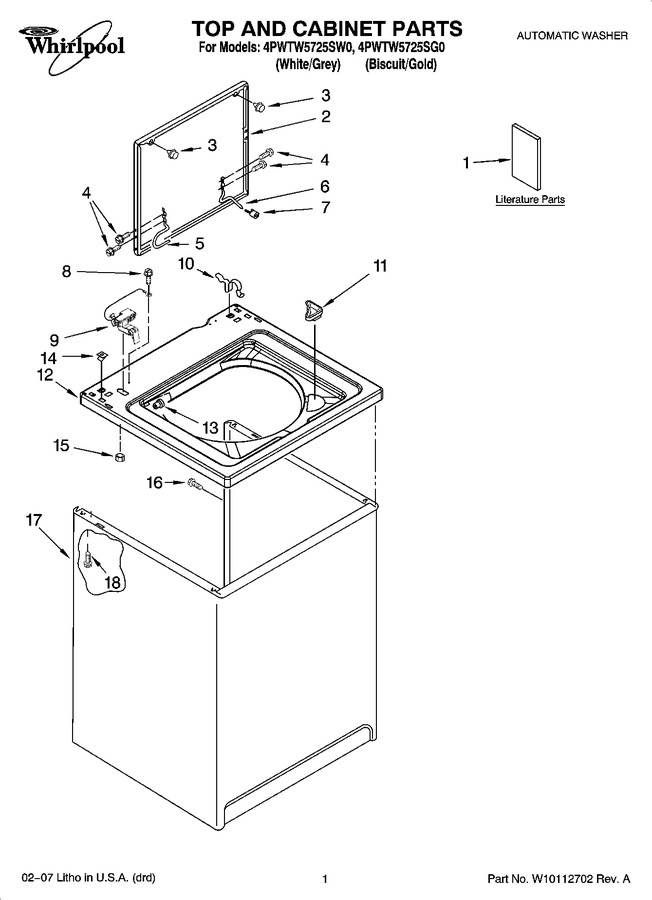

01 - Top And Cabinet Parts


02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Machine Base Parts


05 - Brake, Clutch, Gearcase, Motor And Pump Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10110461		Wiring Diagram		Appelez-nous	-
1	W10096749		Installation Instructions (english/korean)		Appelez-nous	-
1	W10096776		Installation Instructions (arabic)		Appelez-nous	-
1	W10096744		Use & Care Guide (english/korean)		Appelez-nous	-
1	W10096777		Use & Care Guide (arabic)		Appelez-nous	-
1	W10096804		Feature Sheet (arabic)		Appelez-nous	-
2	WP3957511		Lid (biscuit)   (Replaces: 8541742)				$ 221.06
2	8541743		Lid (white)		Appelez-nous	-
3	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 8.33
4	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119872)			Immediately	$ 7.55
5	8318088		Hinge, Lid (l.h.)		Appelez-nous	-
6	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 31.04
7	19119		Bumper, Lid Hinge				$ 5.75
8	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 7.30
9	WP8318084		Switch, Lid   (Replaces: 8318084)			Immediately	$ 39.82
10	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 8.19
11	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 12.09
12	8541619		Top (biscuit)		Appelez-nous	-
12	8541617		Top (white)		Appelez-nous	-
13	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)				$ 8.01
14	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
15	W10080180		Nut, Hex   (Replaces: 8533959)				$ 14.15
16	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
17	3954777		Cabinet (biscuit)		Appelez-nous	-
17	63128		Cabinet (white)		Appelez-nous	-
18	WP3390631		Screw, 10-16 X 3/8 (4)   (Replaces: 3390631)				$ 8.25
