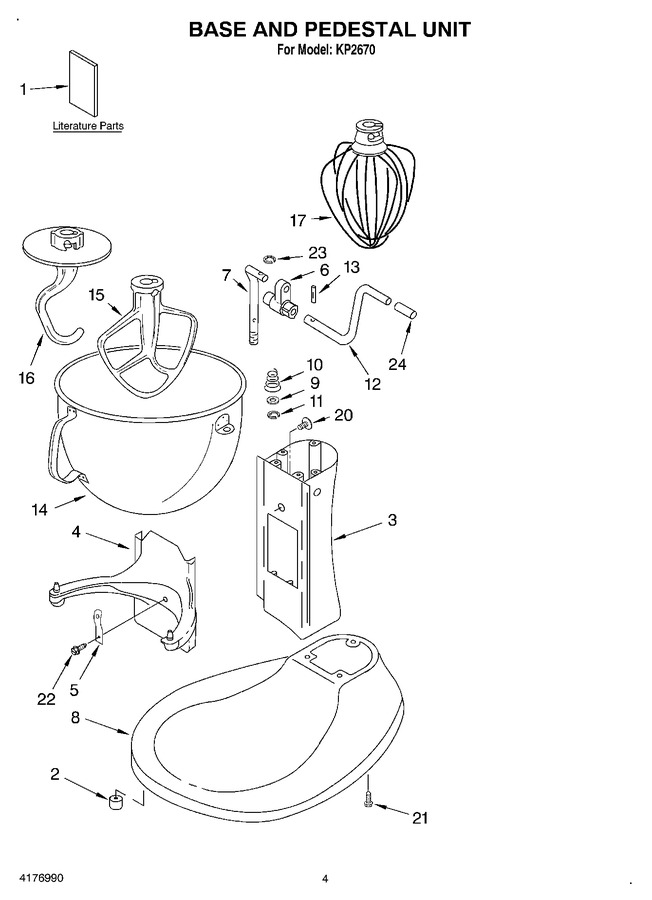

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT9706060 | Literature Parts (use And Care Guide) |
|
- | |||||
| 1 | LIT4176990 | Literature Parts (repair Parts List) |
|
- | |||||
| 2 | 8211628 | Foot, Rubber (5) (Replaces: 9703414) |
|
$ 7.71 | |||||
| 3 | 9703673 | Column Assembly |
|
$ 81.26 | |||||
| 4 | 9703674 | Bowl Support |
|
$ 74.91 | |||||
| 5 | WPW10504114 | Latch, Bowl Spring (Replaces: 9703474) |
|
Immediately | $ 5.14 | ||||
| 6 | WP9706885 | Arm, Bowl Lift (Replaces: 9703470) |
|
Immediately | $ 5.17 | ||||
| 7 | 9703458 | Rod, Bowl Lift |
|
- | |||||
| 8 | 9703690 | Base And Foot Supports |
|
- | |||||
| 9 | W11708395 | Washer (Replaces: 9703439) |
|
$ 4.47 | |||||
| 10 | 4159622 | Spring (Replaces: 9237) |
|
Immediately | $ 4.70 | ||||
| 11 | 9703487 | Clip |
|
- | |||||
| 12 | W11778321 | Handle, Bowl Lift (Replaces: 9703457) |
|
$ 24.01 | |||||
| 13 | WP9703442 | Roll Pin (Replaces: 9703442) |
|
$ 4.28 | |||||
| 14 | W11770849 | Bowl (6 Qt) (Replaces: 9706005) |
|
Immediately | $ 91.11 | ||||
| 15 | W11646967 | Beater, Flat (Replaces: 9703485) |
|
Immediately | $ 48.92 | ||||
| 16 | W11319616 | Dough Hook (Replaces: 9703486) |
|
$ 45.29 | |||||
| 17 | WP9703491 | Wire Whip (Replaces: 9703491) |
|
Immediately | $ 43.13 | ||||
| 20 | W11721849 | Cam, Adjusting (Replaces: 9703426) |
|
$ 6.08 | |||||
| 21 | W10913677 | Screw, 1/4-20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 22 | W10861883 | Screw, 10-24 X 1/2 (Replaces: 3400018) |
|
Immediately | $ 4.94 | ||||
| 23 | WP9703307 | Clip (Replaces: 9703307) |
|
Immediately | $ 4.42 | ||||
| 24 | W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | ||||
| 24 | RVSA | Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin (Replaces: 4164750) |
|
$ 115.50 | |||||
| 24 | 4164824 | Pasta Maker Plates Snpa |
|
- | |||||
| 24 | 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | |||||
| 24 | 4162838 | Food Tray (ft) |
|
- | |||||
| 24 | 4164748 | Juicer, Je |
|
- | |||||
| 24 | 4164747 | Can Opener, Co |
|
- | |||||
| 24 | 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | |||||
| 24 | W11501449 | Handle (Replaces: 9703698) |
|
$ 24.12 | |||||
| 24 | 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs |
|
- | |||||
| 24 | 4164749 | Food Grinder (fg-a) |
|
- | |||||
| 24 | 4164751 | Grain Mill (gm-a) |
|
- | |||||
| 24 | 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- | |||||
| 24 | FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 |
