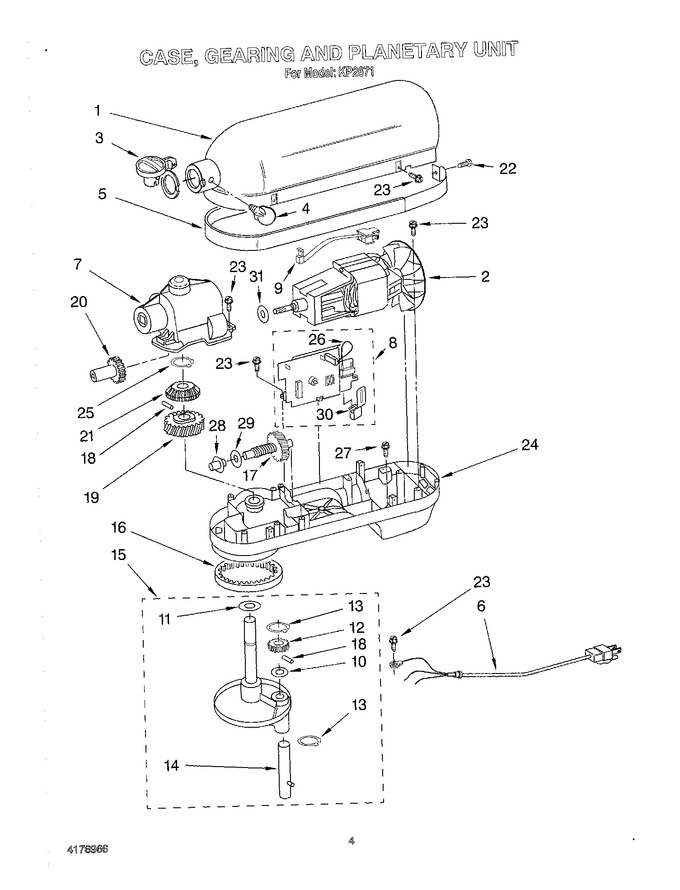

03 - Base & Pedestal Unit, Literature
04 - Case, Gearing, Planetary Unit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Gearcase Motor Housing-white |
|
$ 88.20 | |||||
| 1 | 9703531 | Gearcase Motor Housing-imperial Gray |
|
$ 79.45 | |||||
| 1 | 9703532 | Gearcase Motor Housing-imperial Black |
|
$ 88.20 | |||||
| 1 | 9705380 | Gearcase Motor Housing-cobalt Blue |
|
- | |||||
| 1 | 9705693 | Gearcase Motor Housing-caviar |
|
- | |||||
| 2 | 9703572 | Motor |
|
- | |||||
| 3 | W11123129 | Cap, Attachemnt Hub (hinged) (Replaces: 9703315) |
|
$ 19.69 | |||||
| 4 | WP9709194 | Thumb Screw (Replaces: 240374) |
|
Immediately | $ 20.14 | ||||
| 5 | 9705695 | Trim Band-satin Finish & Black |
|
- | |||||
| 5 | 9703636 | Trim Band-silver & Black |
|
- | |||||
| 6 | 9703626 | Power Cord (white) |
|
- | |||||
| 6 | 9703627 | Power Cord (black) |
|
- | |||||
| 7 | 8212396 | Transmission Housing (Replaces: 9703671) |
|
Immediately | $ 62.13 | ||||
| 8 | 9703609 | Control Assembly (black Knob) |
|
- | |||||
| 9 | WP9706648 | Sensor, Hall Effect (Replaces: 9703312) |
|
Immediately | $ 109.97 | ||||
| 10 | 9703437 | Washer |
|
- | |||||
| 11 | W11084660 | Washer, Fiber (Replaces: 9703434) |
|
Immediately | $ 4.94 | ||||
| 12 | W11133646 | Gear, Pinion (Replaces: 9703340) |
|
Immediately | $ 8.47 | ||||
| 13 | WP9703438 | Retaining Clip (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 14 | 9703314 | Agitator Shaft |
|
- | |||||
| 15 | 9705689 | Planetary-caviar |
|
- | |||||
| 15 | WP9708172 | Planetary-white (Replaces: 9703613) |
|
Immediately | $ 73.84 | ||||
| 15 | WP9708173 | Planetary-imperial Gray (Replaces: 9703542) |
|
$ 73.84 | |||||
| 15 | WP9708174 | Planetary-imperial Black (Replaces: 9703544) |
|
$ 76.24 | |||||
| 15 | 9705386 | Planetary-cobalt Blue |
|
- | |||||
| 16 | W11181966 | Gear, External (Replaces: 9703339) |
|
$ 14.82 | |||||
| 17 | WP9709231 | Worm Gear (Replaces: 9703699) |
|
Immediately | $ 55.55 | ||||
| 18 | WP9707223 | Retaining Pin (Replaces: 4161950) |
|
Immediately | $ 5.08 | ||||
| 19 | W11086780 | Gear, Worm Follower (Replaces: 9703543) |
|
Immediately | $ 19.02 | ||||
| 20 | W11192795 | Gear, Attachment Hub Bevel (Replaces: 9703338) |
|
Immediately | $ 23.38 | ||||
| 21 | W11192795 | Gear, Bevel (Replaces: 9703337) |
|
Immediately | $ 23.38 | ||||
| 22 | WP3196170 | Screw, 6-32 X 1/4 (Replaces: 3400617) |
|
$ 7.55 | |||||
| 23 | WP3400814 | Screw, 8-32 X 5/8 (Replaces: 3400814) |
|
$ 4.62 | |||||
| 24 | 9706301 | Lower Gearcase-imperial Black (Replaces: 9703555) |
|
$ 92.72 | |||||
| 24 | 9706346 | Lower Gearcase-caviar (Replaces: 9705686) |
|
- | |||||
| 24 | 9703313 | Lower Gearcase-white |
|
- | |||||
| 24 | 9703553 | Lower Gearcase-imperial Gray |
|
- | |||||
| 24 | 9705385 | Lower Gearcase-cobalt Blue |
|
- | |||||
| 25 | WP9703680 | Retaining Clip (Replaces: 9703680) |
|
Immediately | $ 4.99 | ||||
| 26 | 9703630 | Jumper Wire |
|
- | |||||
| 27 | W10913677 | Screw (3) 1/4 - 20 X 3/4 (Replaces: 3400200) |
|
$ 4.64 | |||||
| 28 | 9703351 | Bearing, Worm Gear (2) |
|
$ 19.45 | |||||
| 29 | 9703677 | Thrust Washer |
|
$ 5.27 | |||||
| 30 | 9703581 | Clip |
|
- | |||||
| 31 | W11200218 | Grease, Planetary (Replaces: 4160588) |
|
Immediately | $ 86.08 | ||||
| 31 | FVSP | Fruit/vegetable Strainer Parts (use With Fg-a Model Only) (fvsp) (Replaces: 4164775) |
|
$ 117.81 | |||||
| 31 | RVSA | Rotor Slicer/shredder (with 4 Standard Cones) Fine Shredder, Coarse Shredder, Thick Slicer, And Thin (Replaces: 4164750) |
|
$ 115.50 | |||||
| 31 | 4164824 | Pasta Maker Plates Snpa |
|
- | |||||
| 31 | 4164774 | Fruit/vegetable Strainer And Food Grinder, Fvs/fga |
|
- | |||||
| 31 | 4162838 | Food Tray (ft) |
|
- | |||||
| 31 | 4164748 | Juicer, Je |
|
- | |||||
| 31 | 4164747 | Can Opener, Co |
|
- | |||||
| 31 | 4164803 | Sausage Stuffer, Kit, Ssa |
|
- | |||||
| 31 | 9705607 | Seal, Armature Shaft |
|
$ 21.05 | |||||
| 31 | 4164778 | Mixer Attachment Pak (includes Food Grinder (fg-a), Food Strainer (fvsp), And Vegetable Slicer, (rvs |
|
- | |||||
| 31 | 4164749 | Food Grinder (fg-a) |
|
- | |||||
| 31 | 4164751 | Grain Mill (gm-a) |
|
- | |||||
| 31 | 4164768 | Pasta Maker And Food Grinder (includes Snp Pasta Maker Plates) (sn/fg-a) |
|
- |
