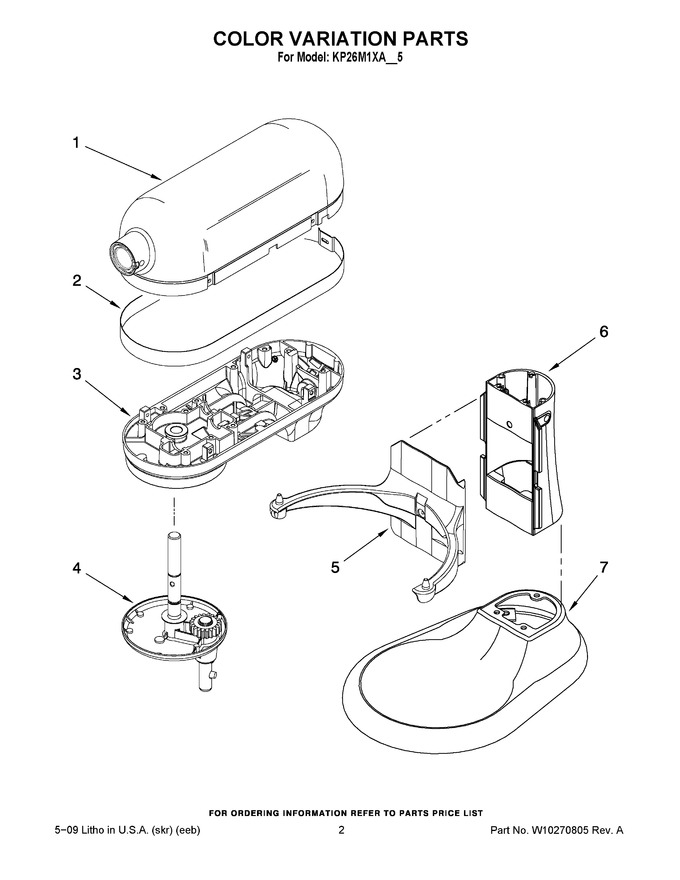

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit
04 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10171605 | Motor Housing (cocoa Silver) |
|
- | |||||
| 2 | W10171603 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10171612 | Lower Gearcase (cocoa Silver) |
|
$ 62.66 | |||||
| 4 | W10171609 | Planetary (cocoa Silver) |
|
$ 86.87 | |||||
| 5 | W10171616 | Bowl Support And Pins (cocoa Silver) |
|
- | |||||
| 6 | W10171619 | Column And Pins (cocoa Silver) |
|
- | |||||
| 7 | W10171622 | Base & Foot Assembly (cocoa Silver) |
|
- |
