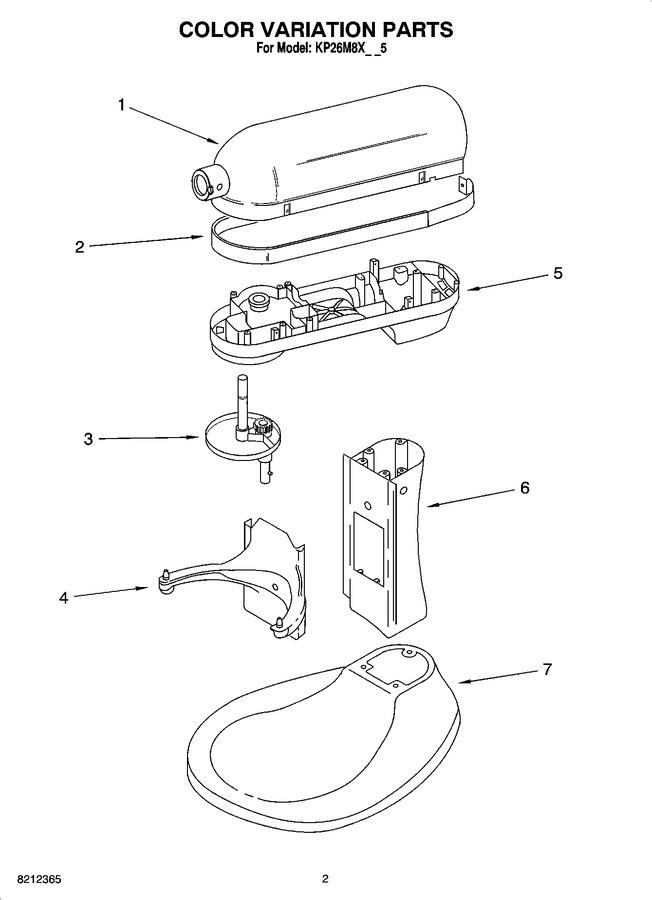

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703433 | Motor Housing (metallic Chrome) |
|
$ 90.15 | |||||
| 1 | W10291075 | Motor Housing (satin Copper) (Replaces: W10112806) |
|
- | |||||
| 1 | W10291067 | Motor Housing (brushed Nickel) (Replaces: W10112542) |
|
- | |||||
| 2 | 9708797 | Trim Band (platinum/frost) |
|
- | |||||
| 3 | WP9708175 | Planetary (metallic Chrome) (Replaces: 9708175) |
|
Immediately | $ 70.69 | ||||
| 3 | W10112810 | Planetary (satin Copper) |
|
$ 69.87 | |||||
| 3 | W10112546 | Planetary (brushed Nickel) |
|
- | |||||
| 4 | 9703397 | Bowl Support And Pins (metallic Chrome) |
|
$ 76.42 | |||||
| 4 | W10112815 | Bowl Support And Pins (satin Copper) |
|
- | |||||
| 4 | W10112553 | Bowl Support And Pins (brushed Nickel) |
|
- | |||||
| 5 | 9706306 | Lower Gearcase (metallic Chrome) |
|
$ 82.38 | |||||
| 5 | W10112812 | Lower Gearcase (satin Copper) |
|
- | |||||
| 5 | W10112549 | Lower Gearcase (brushed Nickel) |
|
- | |||||
| 6 | 9703349 | Column-metallic Chrome |
|
- | |||||
| 6 | W10112817 | Column (satin Copper) |
|
- | |||||
| 6 | WPW10112556 | Column (brushed Nickel) (Replaces: W10112556) |
|
$ 225.99 | |||||
| 7 | 9703346 | Base & Foot Assembly (metallic Chrome) |
|
- | |||||
| 7 | W10112820 | Base & Foot Assembly (satin Copper) |
|
- | |||||
| 7 | W10112559 | Base & Foot Assembly (brushed Nickel) |
|
- |
