Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7863001 Inner Pad K Appelez-nous -
2 D7863101 Outer Pad K Appelez-nous -
3 D7826603 Handle Appelez-nous -
4 M0215115 Screw Appelez-nous -
5 WP3400094 Screw   (Replaces: M0253942) Special Order $ 7.93

6 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 7.81

7 WPB5705307 Tubing Plastic   (Replaces: B5705308) Special Order $ 12.43

8 C8972401 Stop, Door (blk) Appelez-nous -
9 D7790801 Nut, Door Stop Appelez-nous -
9 R0181181 Kit,dr Closure   (Replaces: D7751401) In-Stock Immediately $ 7.19

10 D7852102 Trim Upper Frz Door (b) Appelez-nous -
11 D7854002 Trim Center Frz (b) Appelez-nous -
12 D7792702 Lower Trim Frz Door (b) Appelez-nous -
13 D7793002 Retainer, Trim Appelez-nous -
14 D7793102 Retainer, Trim Appelez-nous -
15 10015401 Retainer Vert. Trim Appelez-nous -
16 D7877601 Trim Appelez-nous -
17 D7872403 Trim, Fz Dr. Top Appelez-nous -
18 D7872501 Trim Appelez-nous -
19 D7837401 Support, Handle Appelez-nous -
20 M0213815 Screw Appelez-nous -
20 B8388801 Clip Appelez-nous -
21 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.88

22 D7790801 Nut, Door Stop Appelez-nous -
23 M0219717 Screw Appelez-nous -
24 D7789504 Hinge Cover Appelez-nous -
24 R0195037 Tape Kit Appelez-nous -
25 C8976001 Insulator, Hinge Cover Appelez-nous -
26 C8987901 Foil, Hinge Cover Appelez-nous -
27 D7757803 Top Hinge Assy Appelez-nous -
28 D7789504 Hinge Cover Appelez-nous -
29 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.19

30 R9800670 Kit, Screw   (Replaces: M0257244) Special Order $ 9.38

31 B8389001 Shim, Top Hinge Appelez-nous -
32 B8384101 Connector-6 Pin Appelez-nous -
33 W11214483 Screw, Mach   (Replaces: M0202321) Special Order $ 14.02

34 10030202 Harness, Freezer Dr Appelez-nous -
35 B8386702 Kit,btm Hinge Shim Appelez-nous -
35 B8386703 Kit,btm Hinge Shim Appelez-nous -
35 B8386701 Kit,btm Hinge Shim Appelez-nous -
36 C8972303 Shim Appelez-nous -
37 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.19

38 D7757705 Hinge Assy Appelez-nous -
39 WPW10068250 Screw   (Replaces: M0202530) Special Order $ 4.07

40 M0246258 Screw Appelez-nous -
41 B8387702 Shim, Door Closure Appelez-nous -
42 B8387701 Shim, Door Closure Appelez-nous -
43 WP489399 Screw   (Replaces: M0232903) Special Order $ 6.95

44 A3012532 Tubing Plastic Appelez-nous -
45 M0223004 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

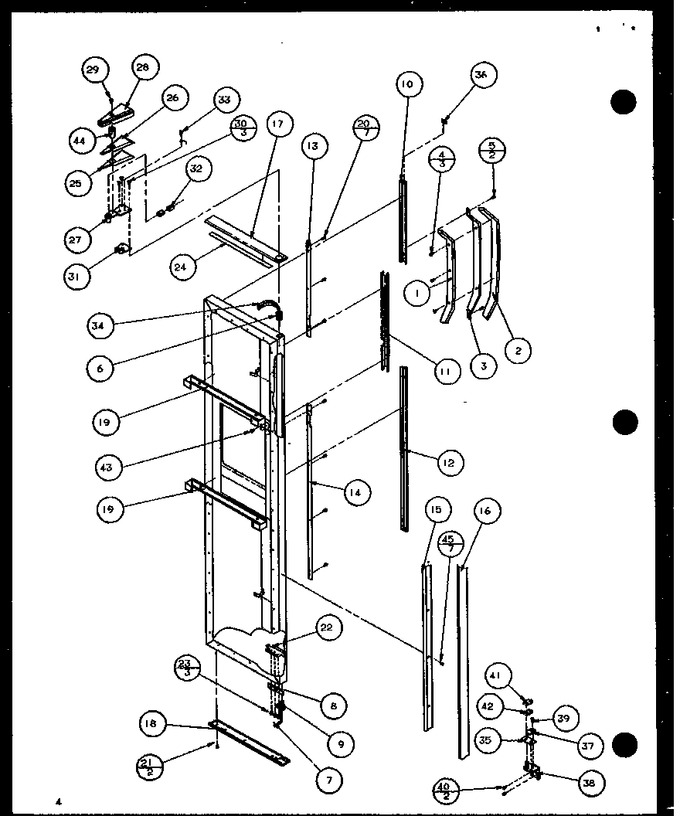

Diagram for 36098 (BOM: P1108704W)
