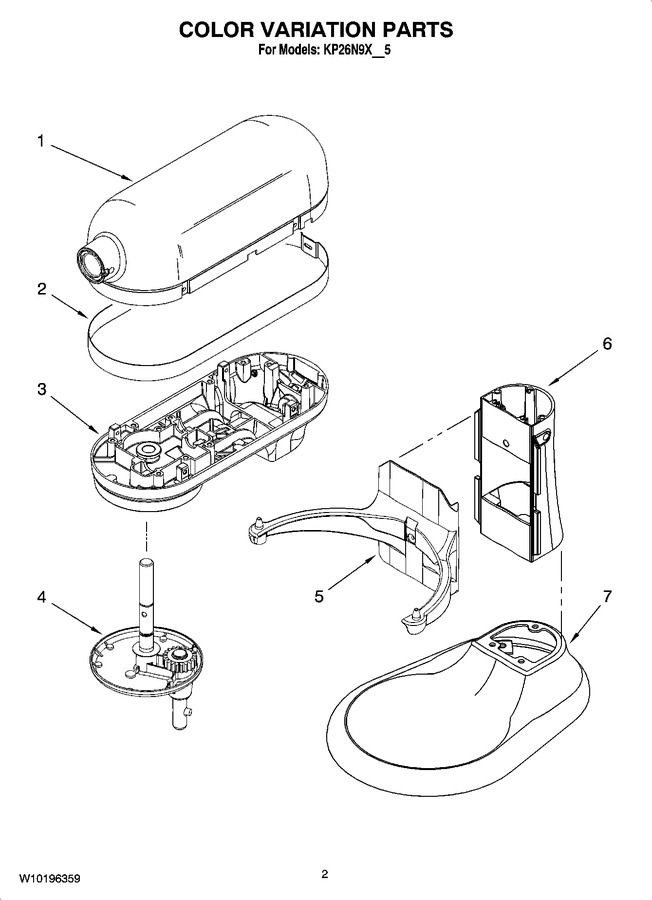

01 - Color Variation Parts
02 - Case, Gearing And Planetary Unit
03 - Base And Pedestal Unit, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9703311 | Motor Housing (white) |
|
$ 88.20 | |||||
| 1 | 9705300 | Motor Housing (empire Red) |
|
$ 88.20 | |||||
| 1 | 9705296 | Motor Housing (onyx Black) |
|
$ 88.20 | |||||
| 1 | 9708749 | Motor Housing (nickel Pearl) |
|
- | |||||
| 2 | W10183208 | Trim Band (platinum/frost) |
|
- | |||||
| 3 | 9706047 | Lower Gearcase (white) |
|
$ 41.51 | |||||
| 3 | 9706331 | Lower Gearcase (empire Red) |
|
$ 92.72 | |||||
| 3 | 9706311 | Lower Gearcase (onyx Black) |
|
$ 92.72 | |||||
| 3 | 9708756 | Lower Gearcase (nickel Pearl) |
|
$ 75.13 | |||||
| 4 | WP9708172 | Planetary (white) (Replaces: 9708172) |
|
Immediately | $ 73.84 | ||||
| 4 | WP9708180 | Planetary (empire Red) (Replaces: 9708180) |
|
Immediately | $ 71.94 | ||||
| 4 | WP9708176 | Planetary (onyx Black) (Replaces: 9708176) |
|
Immediately | $ 73.38 | ||||
| 4 | WP9708753 | Planetary (nickel Pearl) (Replaces: 9708753) |
|
$ 68.56 | |||||
| 5 | 9703674 | Bowl Support And Pins (white) |
|
$ 74.91 | |||||
| 5 | 9705360 | Bowl Support And Pins (empire Red) |
|
- | |||||
| 5 | 9705356 | Bowl Support And Pins (onyx Black) |
|
- | |||||
| 5 | 9708760 | Bowl Support And Pins (nickel Pearl) |
|
- | |||||
| 6 | 9703673 | Column And Pins (white) |
|
$ 81.26 | |||||
| 6 | 9705324 | Column And Pins (empire Red) |
|
- | |||||
| 6 | 9705320 | Column And Pins (onyx Black) |
|
- | |||||
| 6 | 9708763 | Column And Pins (nickel Pearl) |
|
- | |||||
| 7 | 9703690 | Base & Foot Assembly (white) |
|
- | |||||
| 7 | 9705348 | Base & Foot Assembly (empire Red) |
|
- | |||||
| 7 | 9705344 | Base & Foot Assembly (onyx Black) |
|
- | |||||
| 7 | 9708766 | Base & Foot Assembly (nickel Pearl) |
|
$ 81.55 |
