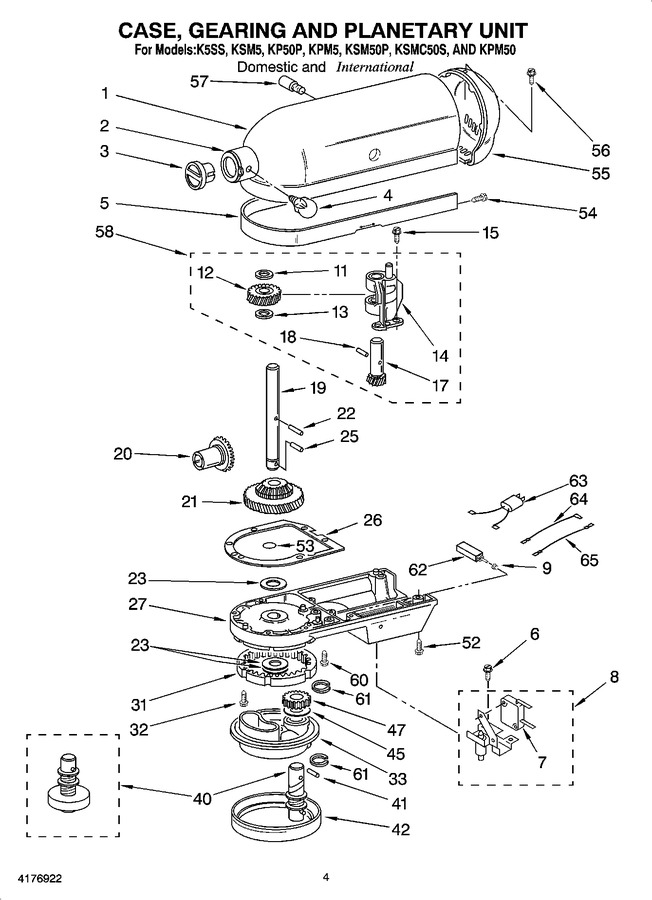

02 - Case, Gearing And Planetary Unit
03 - Motor And Control Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 4159709 | Ring, Attachment |
|
- | |||||
| 3 | W11047429 | Cap, Attachemnt (white) (Replaces: 4176209) |
|
$ 33.03 | |||||
| 3 | W11831059 | Cap, Attachemnt (chrome) (Replaces: 4159713) |
|
$ 15.12 | |||||
| 4 | WP9709196 | Thumb Screw (white (storm Gray)) (Replaces: 4176211) |
|
$ 9.41 | |||||
| 4 | WP9709194 | Thumb Screw (black) (Replaces: 4162142) |
|
Immediately | $ 20.14 | ||||
| 6 | WP965173 | Screw (international) (Replaces: 246132) |
|
Immediately | $ 11.87 | ||||
| 7 | 9701129 | Microswitch (international) |
|
- | |||||
| 8 | 9701014 | Bowl Actuator Assembly (international) |
|
- | |||||
| 11 | WPW10323373 | Washer, Fiber (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 12 | WPW10112253 | Worm Gear (23t) (Replaces: 4162897) |
|
Immediately | $ 15.16 | ||||
| 13 | WPW10323373 | Washer, Fiber (.031`` Thick) (Replaces: 3180161) |
|
Immediately | $ 4.72 | ||||
| 14 | W11082541 | Worm Gear Bracket And Bearing (Replaces: 4162099) |
|
$ 14.78 | |||||
| 15 | W11097298 | Screw And L.w. Assy. (Replaces: 3400022) |
|
- | |||||
| 17 | WP240210-2 | Shaft & Pinion (10t) (Replaces: 4162037) |
|
Immediately | $ 11.88 | ||||
| 18 | WP9705444 | Pin (Replaces: 9705444) |
|
Immediately | $ 5.45 | ||||
| 19 | WP240026 | Shaft, Vertical Center (Replaces: 4161956) |
|
Immediately | $ 9.14 | ||||
| 20 | W11192794 | Gear, Attachment Hub Bevel (23t) (Replaces: 9703907) |
|
Immediately | $ 45.80 | ||||
| 21 | W11192794 | Bevel Pinion (19t) & Center Gear (62t) (Replaces: 9703905) |
|
Immediately | $ 45.80 | ||||
| 22 | WP9707223 | Pin (vertical Center Shaft) (Replaces: 4161950) |
|
Immediately | $ 5.72 | ||||
| 23 | WPW10323378 | Washer, Fiber (Replaces: 3180163) |
|
Immediately | $ 12.19 | ||||
| 25 | W11762673 | Pin (Replaces: 9705443) |
|
$ 4.25 | |||||
| 26 | W11805888 | Gasket, Transmission Case (Replaces: 4162324) |
|
Immediately | $ 46.84 | ||||
| 31 | W11340106 | Gear, Internal (59t) (Replaces: 9703904) |
|
$ 18.56 | |||||
| 32 | 4160595 | Screw, Special (5) |
|
- | |||||
| 40 | WP243368 | Agitator Shaft (includes Cup) (international) (Replaces: 3184052) |
|
Immediately | $ 17.29 | ||||
| 40 | WP243368 | Agitator Shaft (incls Illus. 61) (Replaces: 4176067) |
|
Immediately | $ 17.29 | ||||
| 41 | WP9707223 | Pin (agitator Shaft Pinion) (Replaces: 4161950) |
|
Immediately | $ 5.72 | ||||
| 42 | WP240285 | Ring, Planetary Drip (Replaces: 4162074) |
|
Immediately | $ 9.06 | ||||
| 45 | 3180160 | Washer, Shim |
|
$ 18.10 | |||||
| 47 | W11133645 | Pinion, Gear (18t) (agitator Shaft) (Replaces: 9703903) |
|
$ 4.92 | |||||
| 52 | WP3400025 | Screw 10-24 X 1 Fil. Head (2) (Replaces: 3400025) |
|
$ 4.62 | |||||
| 53 | WP67500-55 | ``o`` Ring (Replaces: 4159817) |
|
Immediately | $ 5.59 | ||||
| 54 | W10853069 | Screw, Self Tapping 6-32 X 1/4`` Phil. Pan Hd. Type F (Replaces: 4159430) |
|
$ 4.32 | |||||
| 56 | WP241877 | Screw, 6-32 X 3/8 Phil. Oval Hd. (Replaces: 4162914) |
|
$ 4.15 | |||||
| 57 | 4176183 | Pin-guard (international) |
|
- | |||||
| 58 | WP240309-2 | Worm Gear Bracket And Gear (Replaces: 4162101) |
|
Immediately | $ 44.49 | ||||
| 60 | WP9708653 | Machine Screw 10-24 X 1 3/4 Fil. Hd. (2) (Replaces: 3400026) |
|
$ 4.50 | |||||
| 61 | WP9703438 | Ring, Retaining (Replaces: 9703438) |
|
Immediately | $ 4.60 | ||||
| 62 | 241287-1 | Circuit Breaker, (5kpm50 Model) (Replaces: 4176099) |
|
$ 118.10 | |||||
| 63 | 9706789 | Rf Filter |
|
- | |||||
| 64 | W11821371 | Jumper Wire Breaker To Board (international) (Replaces: 9701105) |
|
$ 8.18 | |||||
| 65 | 9702309 | Lead, Circuit (2) (international) |
|
- |
