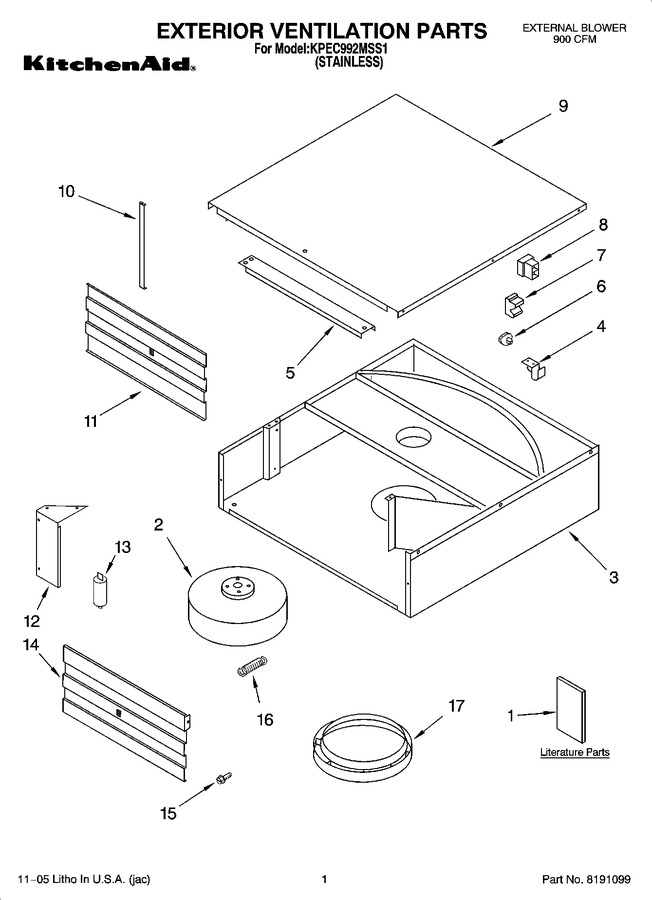

01 - Exterior Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9763390 | U & C Guide / Instructions, Installation |
|
- | |||||
| 2 | 8190604 | Motor, Fan |
|
- | |||||
| 3 | 8190605 | Housing, Fan |
|
- | |||||
| 4 | 4360299 | Clamp |
|
- | |||||
| 5 | 8190606 | Bracket, Top |
|
- | |||||
| 6 | 4360147 | Relief, Strain |
|
- | |||||
| 7 | 4360162 | Connector, Female |
|
- | |||||
| 8 | 4360161 | Connector, Male |
|
$ 32.63 | |||||
| 9 | 8190607 | Cover, Top |
|
- | |||||
| 10 | 8190608 | Support, Side |
|
- | |||||
| 11 | 8190609 | Damper, Hood |
|
- | |||||
| 12 | 8190610 | Cover, Wire |
|
- | |||||
| 13 | 8190611 | Capacitor |
|
- | |||||
| 14 | 8190612 | Grill, Vent |
|
- | |||||
| 15 | 4360048 | Screw (rotating Pin) |
|
- | |||||
| 16 | 8189537 | Spring |
|
- | |||||
| 17 | 8189539 | Duct, Air |
|
- |
