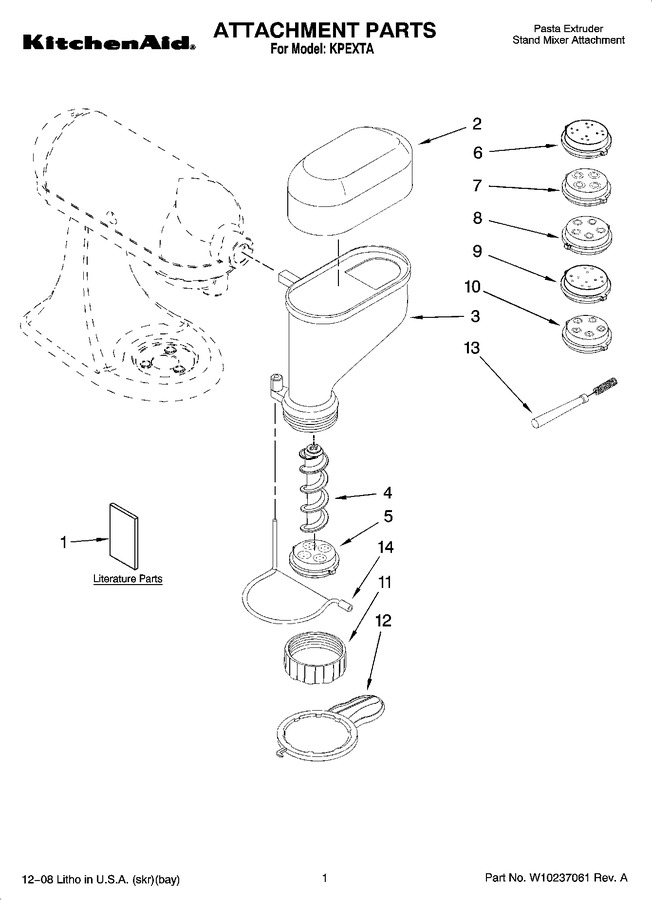

SELECT A DIAGRAM

01 - Attachment Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10237061		Repair Parts List		Appelez-nous	-
1	W10236413		Use & Care Guide		Appelez-nous	-
2	W10236400		Case, Storage		Appelez-nous	-
3	W10236401		Housing Assembly		Appelez-nous	-
4	W10236403		Auger				$ 18.75
5	W10236404		Plate, Spaghetti		Appelez-nous	-
6	W10236405		Plate, Macaroni (small)		Appelez-nous	-
7	W10236406		Plate, Macaroni (large)		Appelez-nous	-
8	W10236407		Plate, Rigatoni		Appelez-nous	-
9	W10236408		Plate, Bucatini		Appelez-nous	-
10	W10236409		Plate, Fusilli		Appelez-nous	-
11	W10236410		Ring, Pasta				$ 63.61
12	W10236411		Tool, Combo		Appelez-nous	-
13	W10236412		Brush, Cleaning		Appelez-nous	-
14	W10236402		Cutter Assembly				$ 65.25
	KPEXTA		Pasta Extruder, Complete				$ 336.00

    View Diagram in Separate Window       Print Part List
