SELECT A DIAGRAM

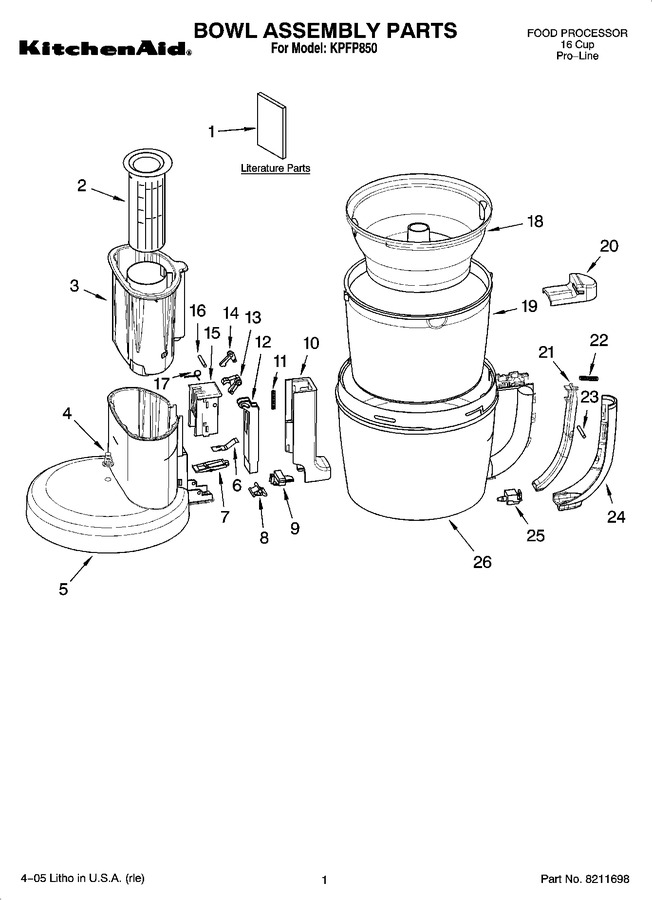

01 - Bowl Assembly Parts


02 - Motor And Housing Parts Top View


03 - Motor And Housing Parts Bottom View


04 - Switch Panel Parts


05 - Attachment Parts And Accessories


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	821169		Repair Parts List (8)		Appelez-nous	-
1	8204593		Guide, Use & Care		Appelez-nous	-
2	8211547		Insert, Pusher		Appelez-nous	-
3	8211548		Pusher		Appelez-nous	-
4	8211613		Bushing		Appelez-nous	-
5	8211550		Cover, Bowl				$ 292.13
6	8211551		Spring, Latch Interlock		Appelez-nous	-
7	8211552		Latch, Interlock		Appelez-nous	-
8	8211614		Link, Plate		Appelez-nous	-
9	8211615		Lock, Plate		Appelez-nous	-
10	8211616		Cover, Chute		Appelez-nous	-
11	8211617		Spring, Slider		Appelez-nous	-
12	8211618		Slide, Plate		Appelez-nous	-
13	8211619		Wedge, Plate Left		Appelez-nous	-
14	8211620		Wedge, Plate Right		Appelez-nous	-
15	8211686		Guard, Plate Chute		Appelez-nous	-
16	8211687		Pin, Plate Shaft		Appelez-nous	-
17	8211688		Spring, Torsion Wedge Plate		Appelez-nous	-
18	8211689		Bowl, Mini		Appelez-nous	-
19	8211690		Bowl, Chefs		Appelez-nous	-
20	8211691		Cover, Grip		Appelez-nous	-
21	8211692		Lever, Interlocking		Appelez-nous	-
22	8211693		Spring, Lever Interlocking		Appelez-nous	-
23	8211694		Pin, Lever		Appelez-nous	-
24	8211695		Cover, Grip Base		Appelez-nous	-
25	8211696		Lock, Plate Chute Lower		Appelez-nous	-
26	8211697		Bowl, Work 16 Cup		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
