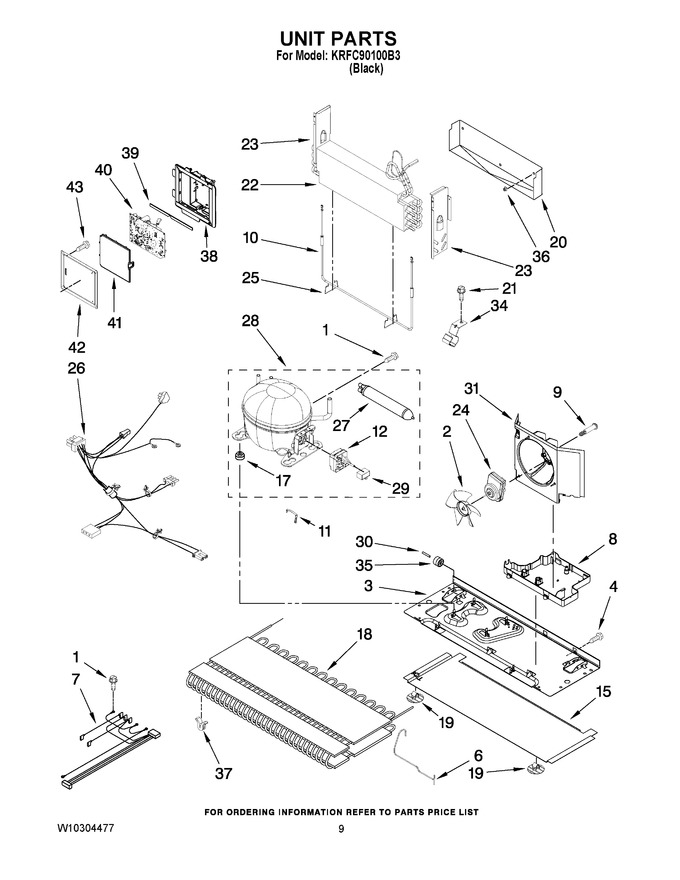

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw				$ 7.32
2	WP12825803		Blade, Fan   (Replaces: 12825803)			Immediately	$ 75.12
3	W11727651		Basepan   (Replaces: W10210985)				$ 110.55
4	67006425		Screw   (Replaces: 12990511)			Immediately	$ 7.30
6	W10286438		Tube, Discharge		Appelez-nous	-
7	W10280430		Harness, Evap Heater		Appelez-nous	-
8	WPW10655368		Pan, Drain   (Replaces: W10296785)			Immediately	$ 99.03
9	WP67006908		Screw, Shoulder   (Replaces: 12991001N)			Immediately	$ 8.78
10	12729132		Evaporator Heater		Appelez-nous	-
11	2302129		Strap, Bale		Appelez-nous	-
12	WP2312007		Start Protect, Combo Production   (Replaces: 2312007)				$ 189.69
15	W10225121		Extension, Basepan		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 10835903SP)			Immediately	$ 7.55
18	WPW10346420		Condenser   (Replaces: W10135027)				$ 294.36
19	W10206339		Fastener, Basepan Extension				$ 11.22
20	W11547653		Tray, Drip   (Replaces: W10292803)				$ 57.02
21	WP33001882		Screw   (Replaces: 12990701)				$ 83.71
22	12002041		Evaporator   (Replaces: 12726403)				$ 366.06
23	12225702		Dam (right Side)				$ 14.09
23	12225602		Dam (left Side)				$ 14.66
24	WPW10246191		Motor, Fan   (Replaces: W10246191)				$ 317.39
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 148.18
26	W10234313		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier   (Replaces: W10143759)			Immediately	$ 30.78
28	W10183407		Compressor Kit (contains Items 12, 17, 27, & 29)   (Replaces: W10223234)				$ 435.61
29	2321245		Capacitor		Appelez-nous	-
30	67006434		Axle, Roller   (Replaces: 12477202)			Immediately	$ 7.90
31	W10189187		Shroud		Appelez-nous	-
34	10547003		Clip, Drier		Appelez-nous	-
35	12477102		Roller (2)			Immediately	$ 7.38
36	10623002		Clip, Evap (2)				$ 12.11
37	WPW10137529		Grommet (4)   (Replaces: W10137529)				$ 8.76
38	W10257666		Box-hv Control		Appelez-nous	-
39	12957801		Gasket, Hv Box		Appelez-nous	-
40	WPW10276422		Board-hv Control   (Replaces: W10276422)				$ 167.40
41	W11226688		Lid-control Box   (Replaces: 12957702)				$ 85.16
42	12961602		Cover-control Box				$ 116.19
43	W11686675		Screw   (Replaces: 12990702)				$ 14.27
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge 4.25 Ozs. (r-134a)		Appelez-nous	-
