SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Chassis


04 - Drawer And Broiler


05 - Door, Optional

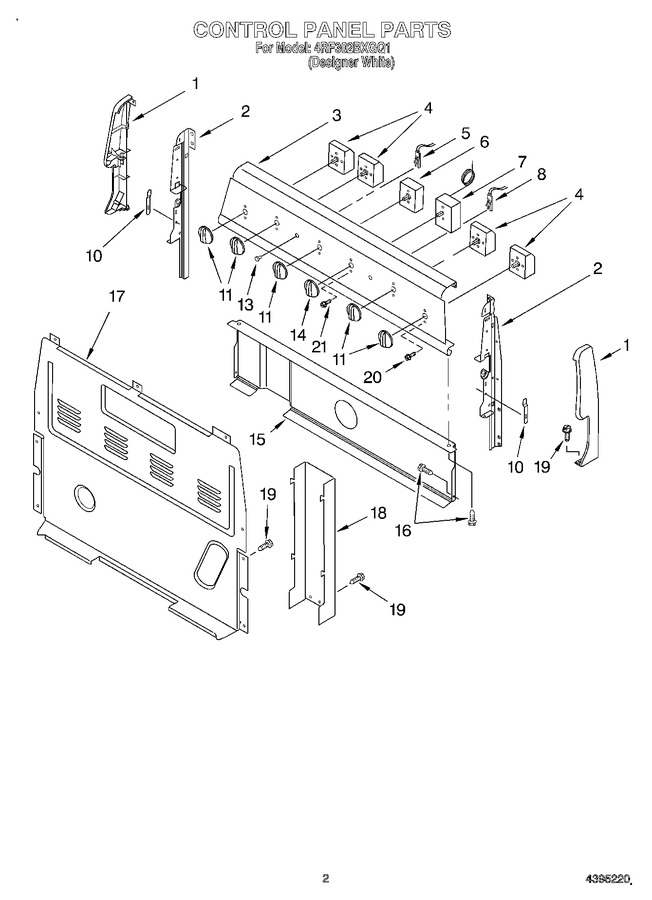

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186190		Endcap (left Hand)		Appelez-nous	-
1	3186191		Endcap (right Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3186161		Panel, Backguard		Appelez-nous	-
4	5500-287		Switch, Infinite (use W/ 6`` Element)   (Replaces: 3148951)			Immediately	$ 52.39
4	5500-287		Switch, Infinite (use W/ 8`` Element)   (Replaces: 3148953)			Immediately	$ 52.39
5	8273303		Indicator, Surface		Appelez-nous	-
6	WP3188987		Switch, Selector   (Replaces: 3188987)				$ 162.14
7	WP3196803		Thermostat   (Replaces: 3196803)				$ 212.94
8	314031		Indicator, Oven				$ 62.88
10	3196200		Clip, Spring (2)				$ 10.45
11	3196232		Knob, Infinite (5)				$ 16.71
13	WP3196068		Lens, Ind. (2)   (Replaces: 3196068)			Immediately	$ 6.26
14	3196214		Knob, Thermostat		Appelez-nous	-
15	8053912		Shield, Heat				$ 34.55
16	W10276642		Screw   (Replaces: 4449746)				$ 6.41
17	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
18	WPW10326122		Box, Cover   (Replaces: 3195133)				$ 139.60
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
20	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
21	WP3196170		Screw   (Replaces: 3196170)				$ 7.55
