SELECT A DIAGRAM

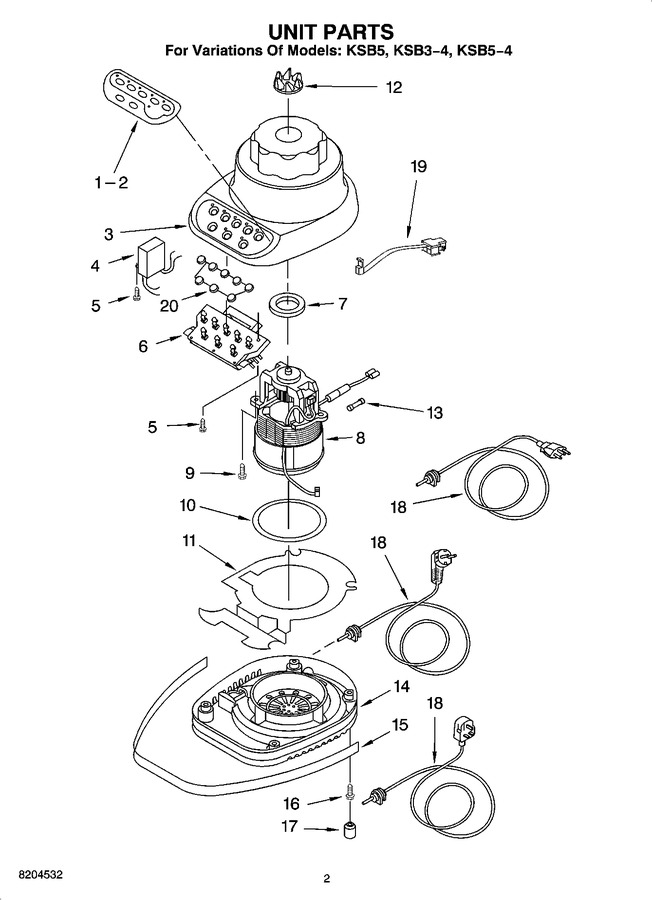

01 - Unit Parts
02 - Attachment Parts - Parts List
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9701911 | Overlay, Switch (5-speed (black)) |
|
- | |||||
| 1 | 9704296 | Overlay, Switch (5-speed) (european) |
|
- | |||||
| 1 | 9701910 | Overlay, Switch (5-speed) (white On White Ksb5ss Model) |
|
- | |||||
| 1 | 9701907 | Overlay, Switch (5-speed) (white) |
|
- | |||||
| 1 | 9701908 | Overlay, Switch (5-speed) (almond Creme) |
|
- | |||||
| 1 | 9701914 | Overlay, Switch (5-speed) (cobalt Blue) |
|
- | |||||
| 1 | 9704486 | Overlay, Switch (5-speed) (empire Red) |
|
- | |||||
| 1 | 9701912 | Overlay, Switch (5-speed) (empire Green) |
|
- | |||||
| 1 | 9704485 | Overlay, Switch (5-speed) (majestic Yellow) |
|
- | |||||
| 1 | 9707546 | Overlay, Switch (5-speed) (tangerine) |
|
- | |||||
| 2 | 9706643 | Overlay, Switch (3-speed) (biscuit) |
|
- | |||||
| 2 | 9706641 | Overlay, Switch (3-speed) (white) |
|
- | |||||
| 3 | 9706992 | Housing, Upper (empire Green) |
|
- | |||||
| 3 | 9706994 | Housing, Upper (majestic Yellow) |
|
- | |||||
| 3 | 9706991 | Housing, Upper (cobalt Blue) |
|
- | |||||
| 3 | 9706900 | Housing, Upper (chrome) |
|
- | |||||
| 3 | 9706993 | Housing, Upper (onyx Black) |
|
- | |||||
| 3 | 9706989 | Housing, Upper (white) |
|
- | |||||
| 3 | 9706995 | Housing, Upper (empire Red) |
|
- | |||||
| 3 | 9707354 | Housing, Upper (metallic Pink) |
|
- | |||||
| 3 | 9706999 | Housing, Upper (imperial White) |
|
- | |||||
| 3 | 9706902 | Housing, Upper (copper) |
|
- | |||||
| 3 | 9706997 | Housing, Upper (imperial Black) |
|
- | |||||
| 3 | 9707544 | Housing, Upper (tangerine) |
|
- | |||||
| 3 | 9706998 | Housing, Upper (biscuit) |
|
- | |||||
| 3 | 9706901 | Housing, Upper (nickel) |
|
- | |||||
| 3 | 9706996 | Housing, Upper (imperial Gray) |
|
- | |||||
| 3 | 9706990 | Housing, Upper (almond Creme) |
|
- | |||||
| 4 | 9704299 | Emi Filter (global Blender) |
|
- | |||||
| 5 | WP489128 | Screw (Replaces: 303921) |
|
$ 11.40 | |||||
| 6 | 9706612 | Board, Control |
|
$ 64.00 | |||||
| 6 | 9706613 | 5-speed 220/240v |
|
$ 62.00 | |||||
| 7 | 3184398 | Seal, Motor |
|
$ 22.10 | |||||
| 8 | 9706760 | 240 Volt |
|
- | |||||
| 8 | 9706759 | Motor |
|
$ 61.64 | |||||
| 9 | 3400062 | Screw |
|
- | |||||
| 10 | 9701904 | O-ring |
|
$ 20.20 | |||||
| 12 | WP9704230 | Coupling, Drive (Replaces: 9704230) |
|
Immediately | $ 18.05 | ||||
| 13 | 9706719 | Base (almond Creme) |
|
- | |||||
| 13 | 9706721 | Base (empire Green) |
|
- | |||||
| 13 | 9706723 | Base (majestic Yellow) |
|
- | |||||
| 13 | 9706720 | Base (cobalt Blue) |
|
- | |||||
| 13 | 9706722 | Base (onyx Black) |
|
$ 41.39 | |||||
| 13 | 9706718 | Base (white) |
|
- | |||||
| 13 | 9706724 | Base (empire Red) |
|
- | |||||
| 13 | 9707547 | Base (tangerine) |
|
- | |||||
| 13 | 9706725 | Base (biscuit) |
|
- | |||||
| 14 | 3184611 | Band, Trim (3-speed) (grey) |
|
- | |||||
| 15 | 9704295 | Band, Trim (5-speed) (international 16 3184608 Screw) |
|
- | |||||
| 15 | 9706616 | Band, Trim (5-speed) (white On White) |
|
- | |||||
| 15 | 3184614 | Band, Trim (5-speed) (silver With Black Lettering Ksb5ss Models) |
|
- | |||||
| 15 | 3184613 | Band, Trim (5-speed) (almond Creme) |
|
- | |||||
| 15 | 3184617 | Band, Trim (5-speed) (black With Silver Lettering) |
|
- | |||||
| 15 | 3184612 | Band, Trim (5-speed) (white) |
|
- | |||||
| 15 | 9704283 | Band, Trim (5-speed) (black) |
|
- | |||||
| 17 | WP9709707 | Foot, Rubber (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 18 | 9707864 | Power Cord Black (europe) |
|
- | |||||
| 18 | 9706646 | Power Cord Black (united States) |
|
- | |||||
| 18 | 9707862 | Power Cord Black (swiss) |
|
- | |||||
| 18 | 9706647 | Power Cord Black (united States 9707866 United Kingdom) |
|
- | |||||
| 18 | 9707865 | Power Cord Black (europe White) |
|
- | |||||
| 18 | 9707863 | Power Cord Black (swiss) |
|
- | |||||
| 18 | 9707867 | Power Cord Black (united Kingdom) |
|
- | |||||
| 18 | 9707868 | Power Cord Black (australia) |
|
- |
