SELECT A DIAGRAM

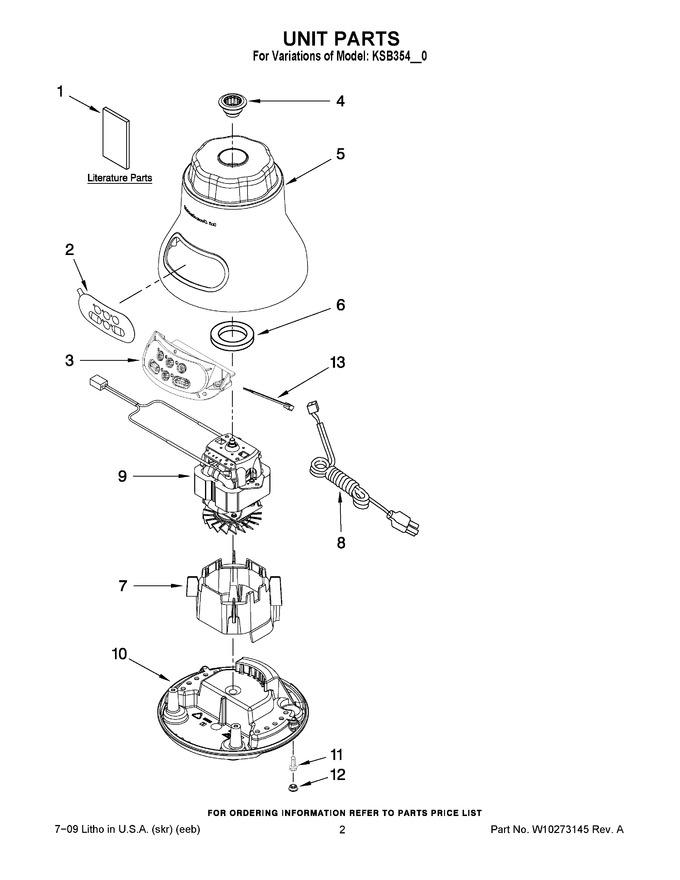

01 - Unit Parts
02 - Attachment Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10273145 | Repair Parts List |
|
- | |||||
| 1 | W10256453 | Use & Care, Trilin |
|
- | |||||
| 2 | W10243136 | Overlay, Switch |
|
- | |||||
| 3 | W10256443 | Control Assembly |
|
- | |||||
| 4 | WPW10279256 | Coupling, Drive (Replaces: W10279256) |
|
Immediately | $ 7.09 | ||||
| 5 | W10256679 | Housing, Upper (onyx Black) |
|
- | |||||
| 5 | W10255128 | Housing, Upper (white) |
|
- | |||||
| 6 | WP9709366 | Seal, Motor (Replaces: 9709366) |
|
$ 4.37 | |||||
| 7 | W10247004 | Shroud, Motor |
|
- | |||||
| 8 | W10256444 | Cord, Power Elephant |
|
- | |||||
| 9 | W10259566 | Motor, 120v - 3spd |
|
- | |||||
| 10 | W10236144 | Base (elephant) |
|
- | |||||
| 11 | W10276642 | Screw |
|
$ 6.41 | |||||
| 12 | WPW10524701 | Foot, Rubber (grey) (Replaces: 9708927) |
|
Immediately | $ 4.84 | ||||
| 13 | W10256905 | Sensor, Hall Effct |
|
- |
