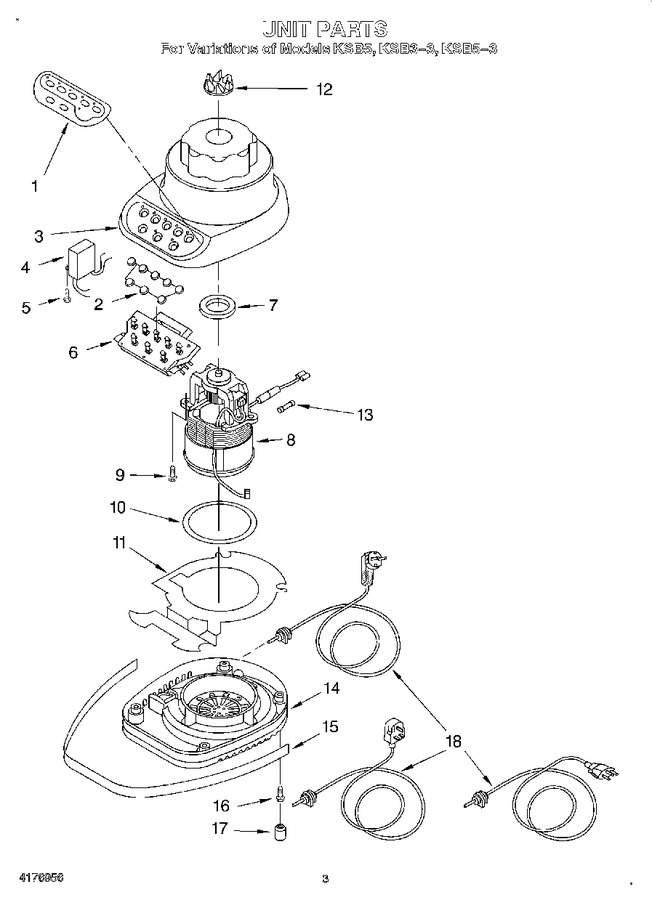

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9701905 | Overlay, Switch (3-speed) |
|
- | |||||
| 1 | 9704296 | Overlay, Switch (5-speed) |
|
- | |||||
| 2 | 9704072 | Actuator, Control |
|
- | |||||
| 3 | 3184306 | Housing, Upper (empire Green) |
|
- | |||||
| 3 | 3184304 | Housing, Upper (almond Creme) |
|
- | |||||
| 3 | 3184311 | Housing, Upper (empire Red) |
|
- | |||||
| 3 | 3184310 | Housing, Upper (majestic Yellow) |
|
- | |||||
| 3 | 3184305 | Housing, Upper (cobalt Blue) |
|
- | |||||
| 3 | 3184309 | Housing, Upper (chrome) |
|
- | |||||
| 3 | 3184302 | Housing, Upper (white) |
|
- | |||||
| 4 | 9704299 | Emi Filter (global Only) |
|
- | |||||
| 5 | 4176022 | Screw |
|
- | |||||
| 6 | 9705074 | Board, Control (5-speed 110v) |
|
- | |||||
| 6 | 9704280 | Board, Control (5-speed 220/240v) |
|
- | |||||
| 6 | 9705073 | Board, Control (3-speed 110v) |
|
- | |||||
| 7 | 3184398 | Seal, Motor |
|
$ 22.10 | |||||
| 8 | 9703244 | Motor (120 Volt) |
|
- | |||||
| 8 | 9704287 | Motor (240 Volt) |
|
- | |||||
| 9 | 3184609 | Screw |
|
- | |||||
| 10 | 9701904 | O-ring |
|
$ 20.20 | |||||
| 11 | 9701027 | Barrier, Ventilation |
|
- | |||||
| 12 | WP9704230 | Coupling, Drive (Replaces: 9704230) |
|
Immediately | $ 18.05 | ||||
| 13 | 9702592 | Fuse, 8a |
|
- | |||||
| 14 | 3184537 | Base (almond Creme) |
|
- | |||||
| 14 | 3184540 | Base (onyx Black) |
|
- | |||||
| 14 | 3184538 | Base (cobalt Blue) |
|
- | |||||
| 14 | 3184536 | Base (white) |
|
- | |||||
| 14 | 3184543 | Base (empire Red) |
|
- | |||||
| 14 | 3184539 | Base (empire Green) |
|
- | |||||
| 14 | 3184542 | Base (majestic Yellow) |
|
- | |||||
| 15 | 3184613 | Band, Trim (almond Creme) |
|
- | |||||
| 15 | 3184611 | Band, Trim (grey) |
|
- | |||||
| 15 | 9704295 | Band, Trim (cobalt Blue) |
|
- | |||||
| 15 | 3184612 | Band, Trim (white) |
|
- | |||||
| 16 | 4176022 | Screw |
|
- | |||||
| 17 | WP9709707 | Foot, Rubber (Replaces: 115792) |
|
Immediately | $ 4.42 | ||||
| 18 | 9704274 | Cord, Power (europe Models) |
|
- | |||||
| 18 | 9704273 | Cord, Power (swiss) |
|
- | |||||
| 18 | 9704275 | Cord, Power (uk) |
|
- | |||||
| 18 | 9705061 | Cord, Power (white Us Pulse) |
|
- | |||||
| 18 | 9705060 | Cord, Power (black Us) |
|
- |
